Zapco

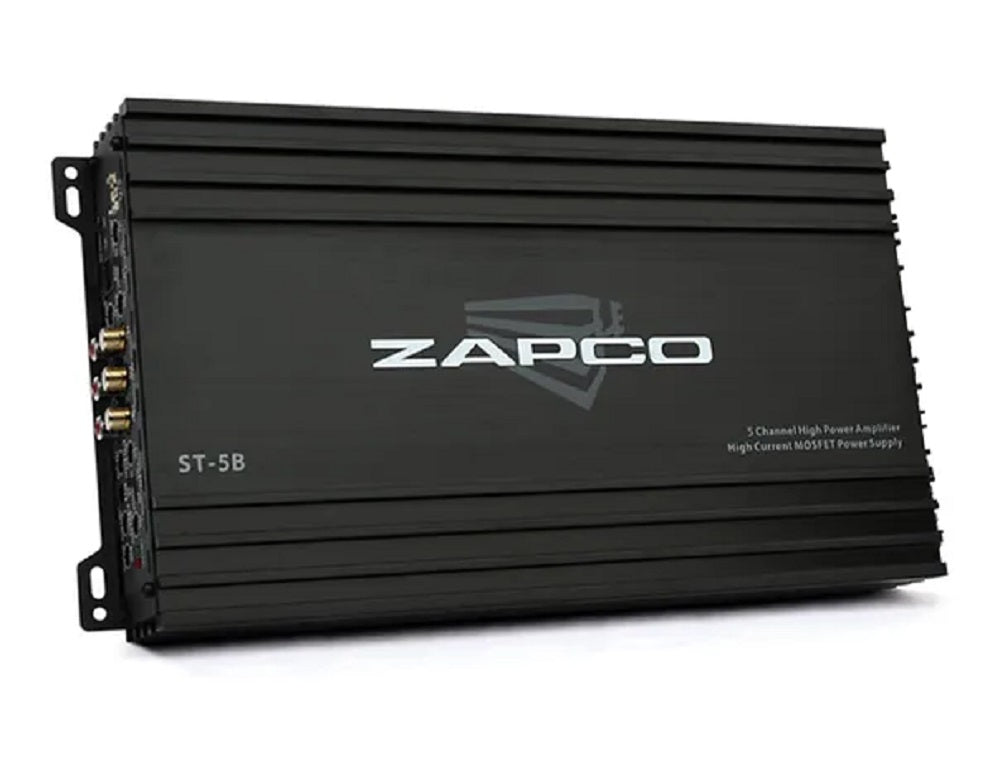

Zapco ST-5B 5 Channel Class A/B Amplifier (RMS: 70W*4 240W*1 (4Ω); 100W*4 400W*1 (2Ω))

Zapco ST-5B 5 Channel Class A/B Amplifier (RMS: 70W*4 240W*1 (4Ω); 100W*4 400W*1 (2Ω))

Regular price ₹ 15,999.00
Regular price ₹ 23,000.00 Sale price ₹ 15,999.00
Save 30% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.

IN STOCK

Estimated Delivery:

-


Type: Class A/B Amplifier
Channel Output: 5 Channels
Total RMS Wattage: 520
Impedance: 2/4 ohms
Warranty: 1 Year Brand Warranty

5 Ch. Full Range Class AB Amplifier

Features:

  • 5-Channel, Class-AB Full Range Amplifier
  • Stable into 4 ohms bridged or 2 ohms stereo load
  • MOSFET power supply
  • RCA and OEM speaker level input
  • Variable Inputs Gain Control
  • Variable FULL / LP / HP Electronic Crossover
  • Variable Bass Boost

Specifications:

  • Power @ 4Ω: 4 x 70 + 1 x 250 watts
  • Power @ 2Ω: 4 x 100 + 1 x 400 watts
  • Power @ 4Ω Bridged: 2 x 180 + 1 x 400 (2Ω)
  • THD @ Rated Power  < 0.2%
  • Signal to Noise Ratio > 90dB
  • Channel separation > 45dB
  • Frequency Response 10Hz to 30,000Hz ±1dB
  • Input Sensitivity .25v to 5v
  • Dimensions in mm: 182(W) x 52(H) x 351(L) Overall: 182(W) x 52(H) x 381(L)

​What's in the BOX

  • 1* Amplifier
  • 1* Bass Remote
  • 4* Screws
  • 1* User Manual
  • 1* Warranty Card
