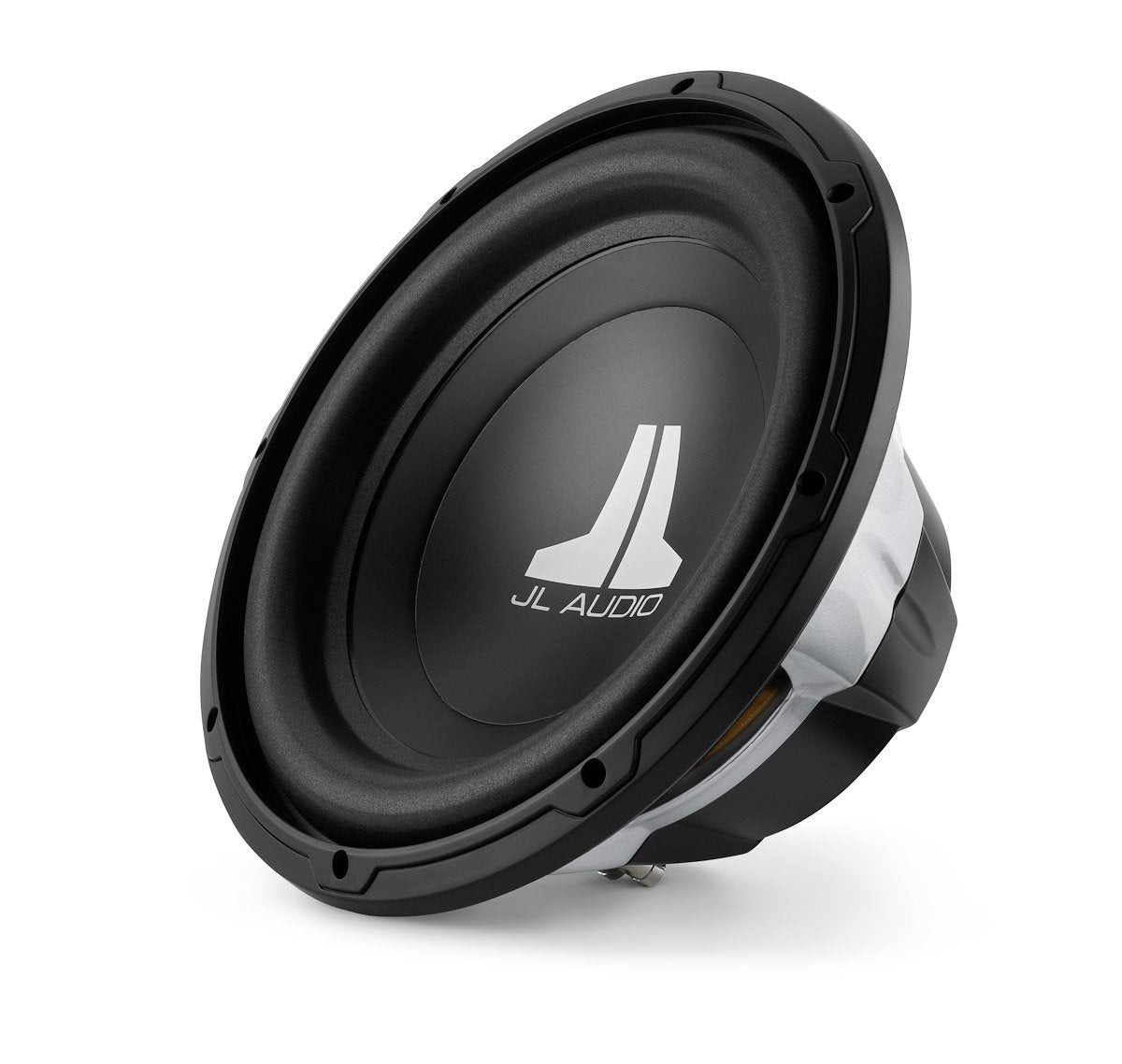

JL Audio 12W0V3-4 12" Subwoofer (300W RMS)
JL Audio 12W0V3-4 12" Subwoofer (300W RMS)
IN STOCK
Estimated Delivery:
-
Type:
Without Amplifier & Enclosure (Passive)
Size: 12 inches
Total RMS Wattage: 300
Impedance:
4 ohms
Warranty: 1 Year Brand Warranty
The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.
The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
Specifications:
- Continuous Power Handling (RMS): 300 W
- Recommended Amplifier Power (RMS): 75 - 300 W
- Nominal Impedance (Znom): 4Ω
- Nominal Diameter: 12.0 in / 300 mm
- Overall Diameter (A): 12.52 in / 318 mm
- Mounting Hole Diameter (B): 11.0625 in / 281 mm
- Bolt Hole Circle Diameter (C): 11.7 in / 297 mm
- Motor Outer Diameter (D): 5.05 in / 128 mm
- Mounting Depth (E): 5.40 in / 137 mm
- Driver Displacement: 0.048 cu ft / 1.36 L
- Net Weight: 8.11 lb / 3.68 kg
- Free Air Resonance (Fs): 28.43 Hz
- Electrical “Q” (Qes): 0.715
- Mechanical “Q” (Qms): 10.709
- Total Speaker “Q” (Qts): 0.67
- Equivalent Compliance (Vas): 2.530 cu ft / 71.64 L
- One-Way Linear Excursion (Xmax)*: 0.45 in / 11.4 mm
- Reference Efficiency (no): 0.22%
- Efficiency (1 W / 1 m)**: 85.64 dB SPL
- Effective Piston Area (Sd): 74.509 sq in / 0.0481 sq m
- DC Resistance (Re): 4.280 Ω
What's in the BOX
- 1* Subwoofer
- 1* Installation Manual
- 1* Warranty Card
