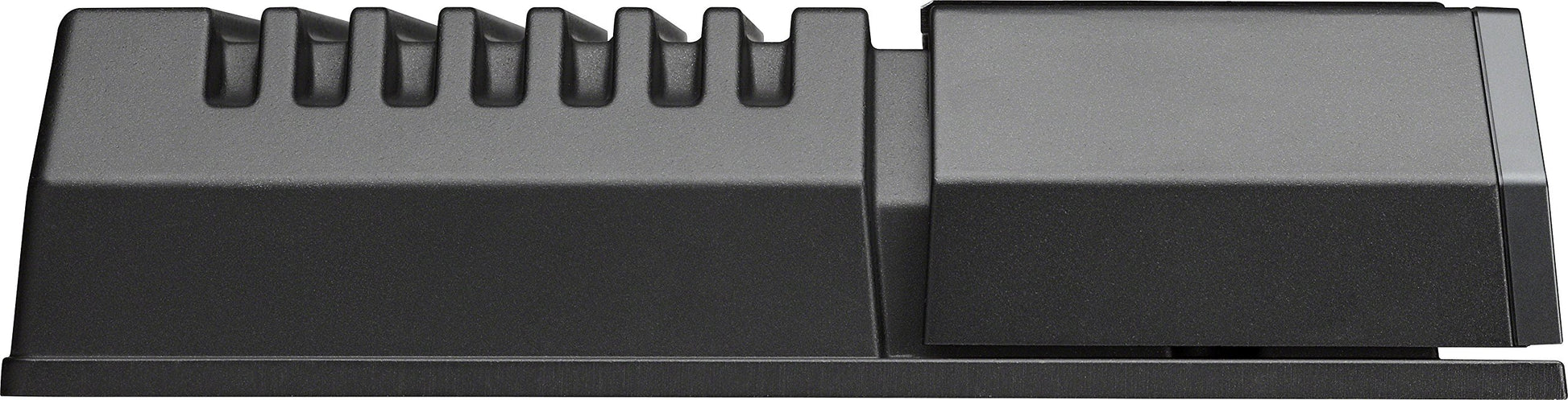

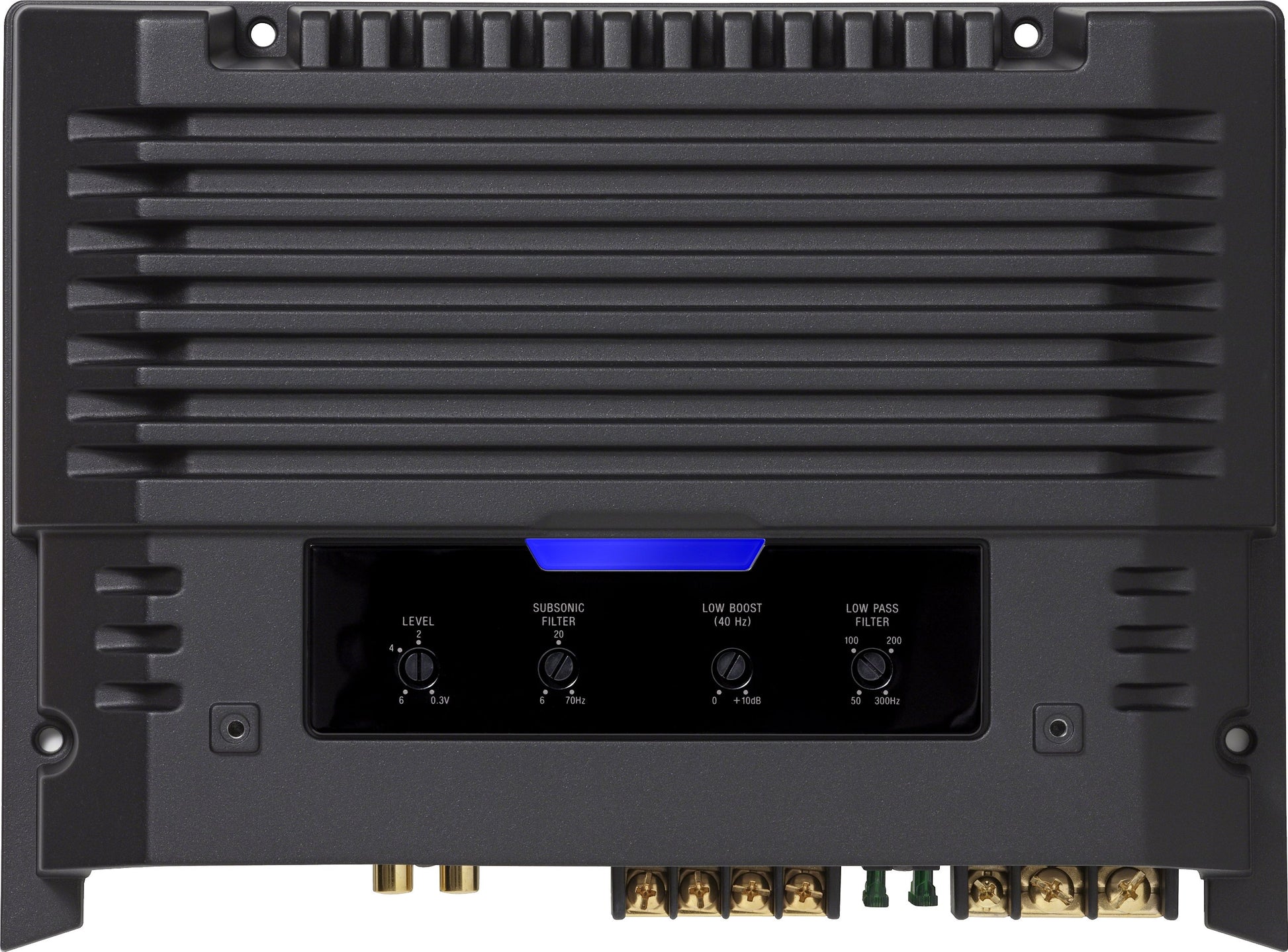

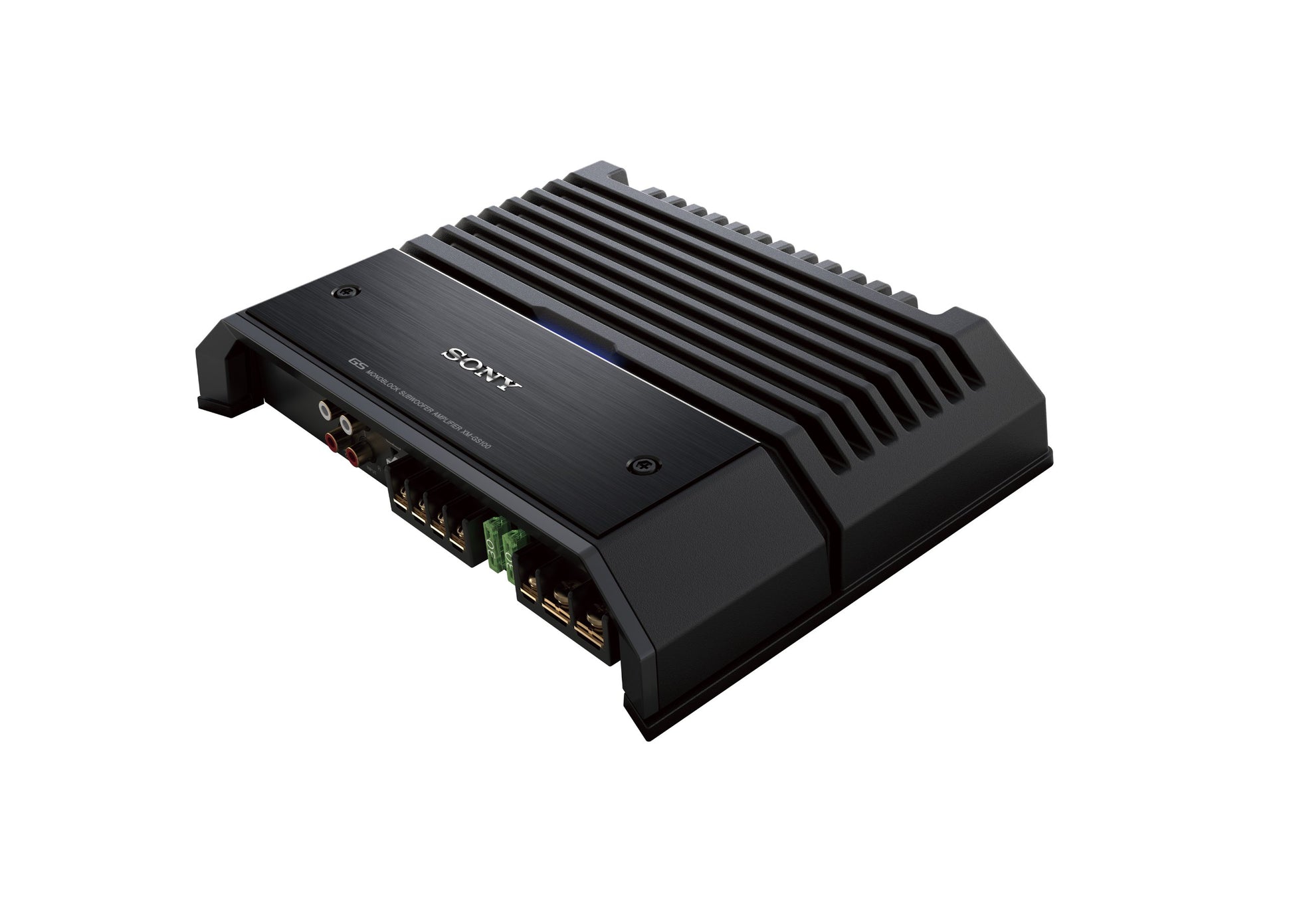

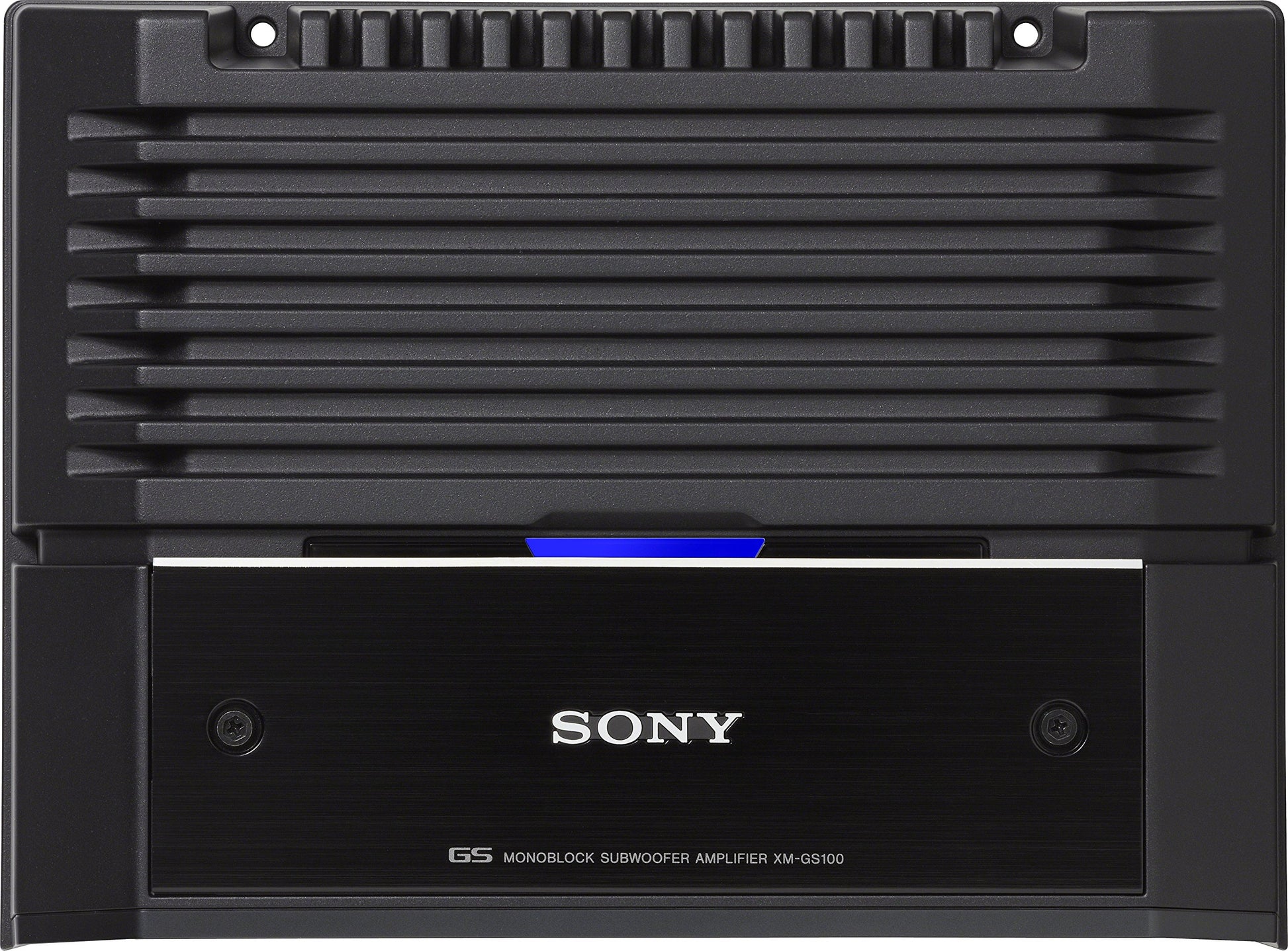

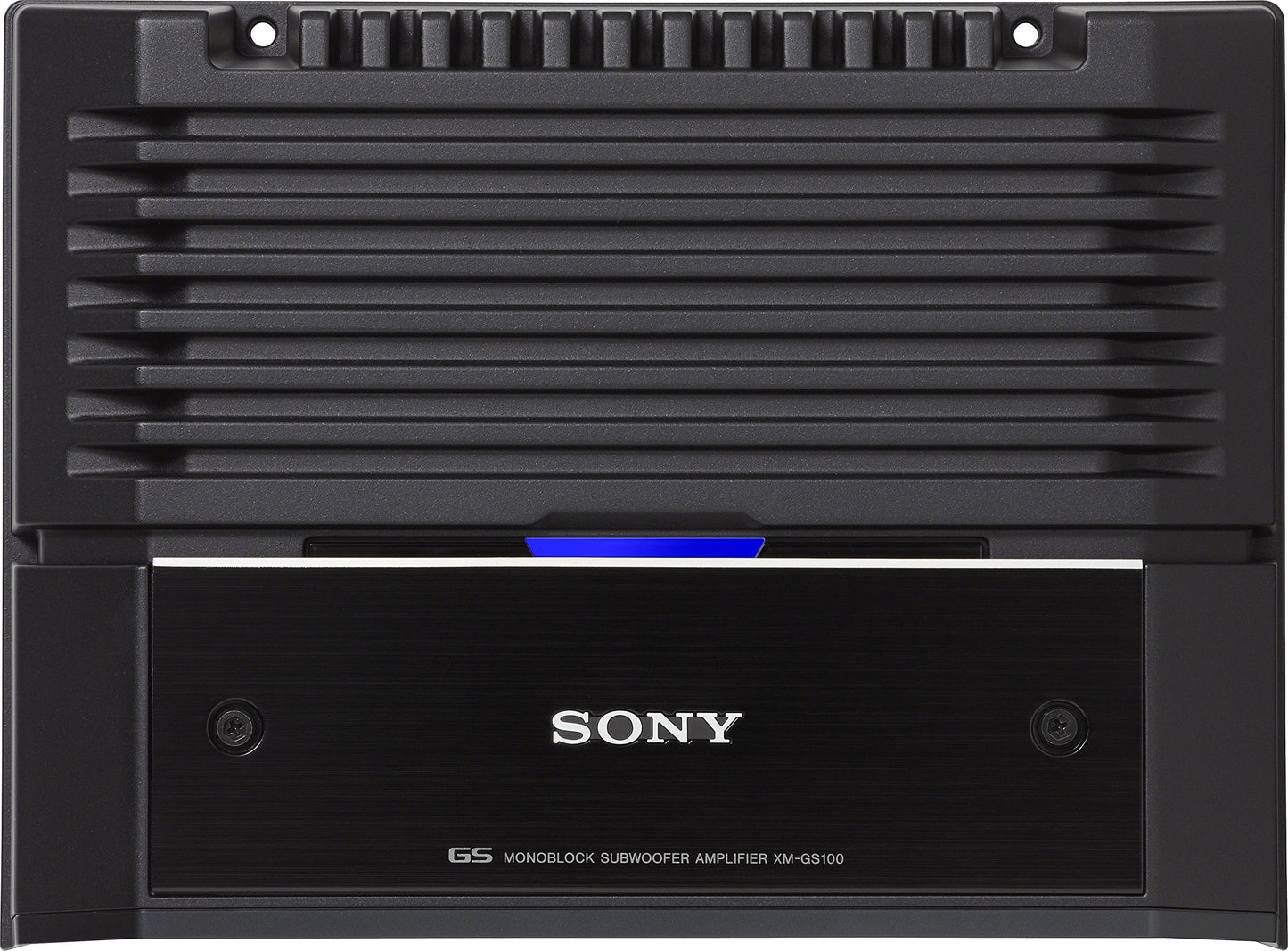

Sony XM-GS100 Class D Mono Amplifier (RMS: 330W (4Ω) 600W (2Ω))

The XM-GS100 amplifier’s compact framework and single-sided connections provide multiple mounting options while maximising your audio output. Integrated Active Thermal Control regulates the unit’s operating temperature for stable, long-term playback at high volume, while Dynamic Distortion Suppressor enables clear bass reproduction.

Size & Weight

• Dimensions (W x H x D): 272 x 51 x 202 mm
• Weight: 2.5kg

Amplifier

• Channel Configuration: Mono
• Low Pass Filter: 50–300 Hz
• Low-Pass Filter Slope: 12 dB/oct
• Rated Output Power (RMS 20 – 20,000 Hz)
• Max. Channel Configuration at 4 ohm (W) / THD (%): 330 W x 1 / 1.0% (20–200 Hz)
• Max. Channel Configuration at 4 ohm (W) / THD (%): 600 W x 1 / 1.0% (50 Hz)
• Maximum Output Power (1 kHz)
• Max. Channel Power Configuration at 4 ohm: 600 W x 1
• Max. Channel Power Configuration at 2 ohms: 1100 W x 1

General Features

• Frequency response: 10–300 Hz
• Tolerance: +0.5/-3 dB
• Signal to Noise Ratio: 100 dB
• Total Harmonic Distortion at 1 kHz (%): 0.1% (50 Hz)

Details

• CTA Power Output: 330 W x 1
• CTA SN Ratio: 65 dBA
• Load Capability (ohm): NO / YES
• MOSFET: YES
• Subsonic High Pass Filter: YES
• Bass Boost: Frequency (0 – 10 dB): 40 Hz

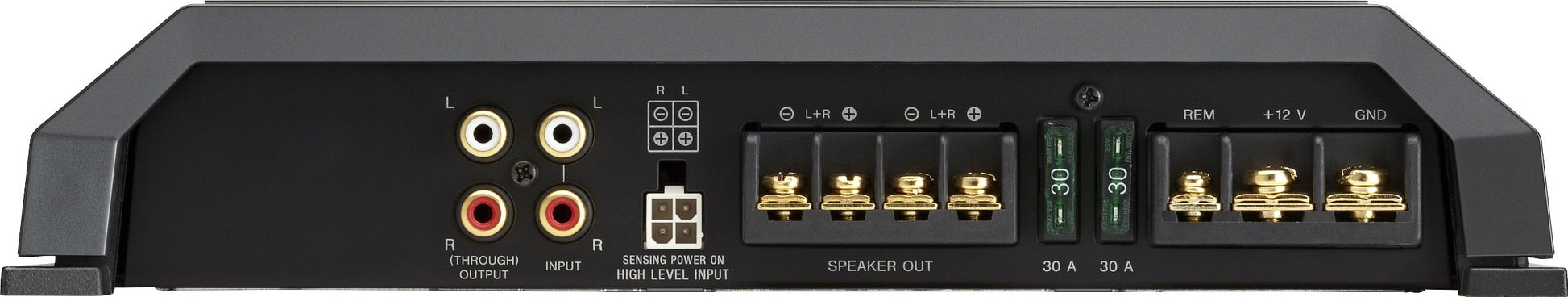

• Speaker Level Input: YES
• Line In: Input Sensitivity: 0.3-6
• Gold Plated Connectors: YES
• Current drain (A) - rated output power at 4 ohms: 30A
• Line Out: YES (Through)

What's In The Box

• 1* Amplifier
• 1* Warranty card
• 1* Instruction Manual
