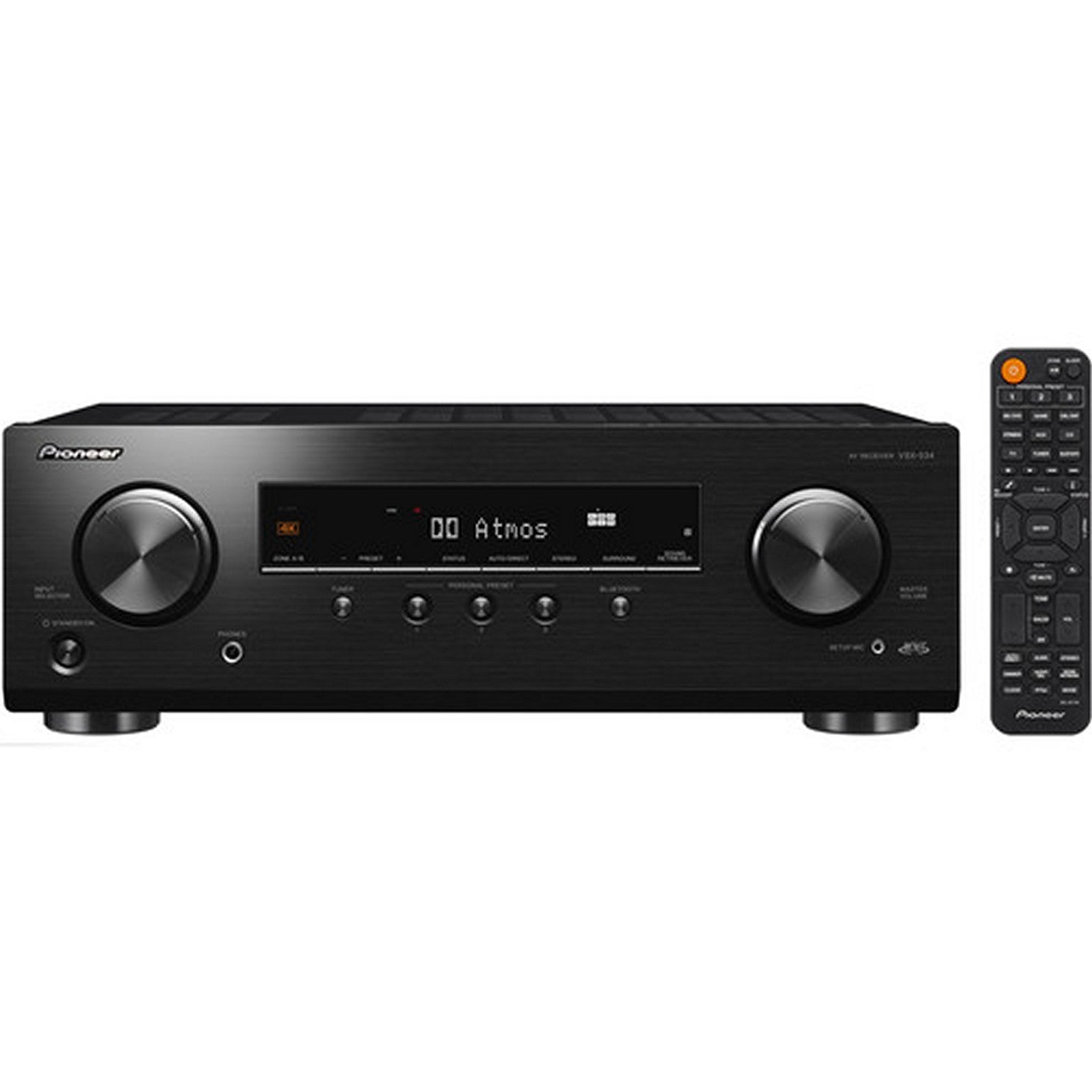

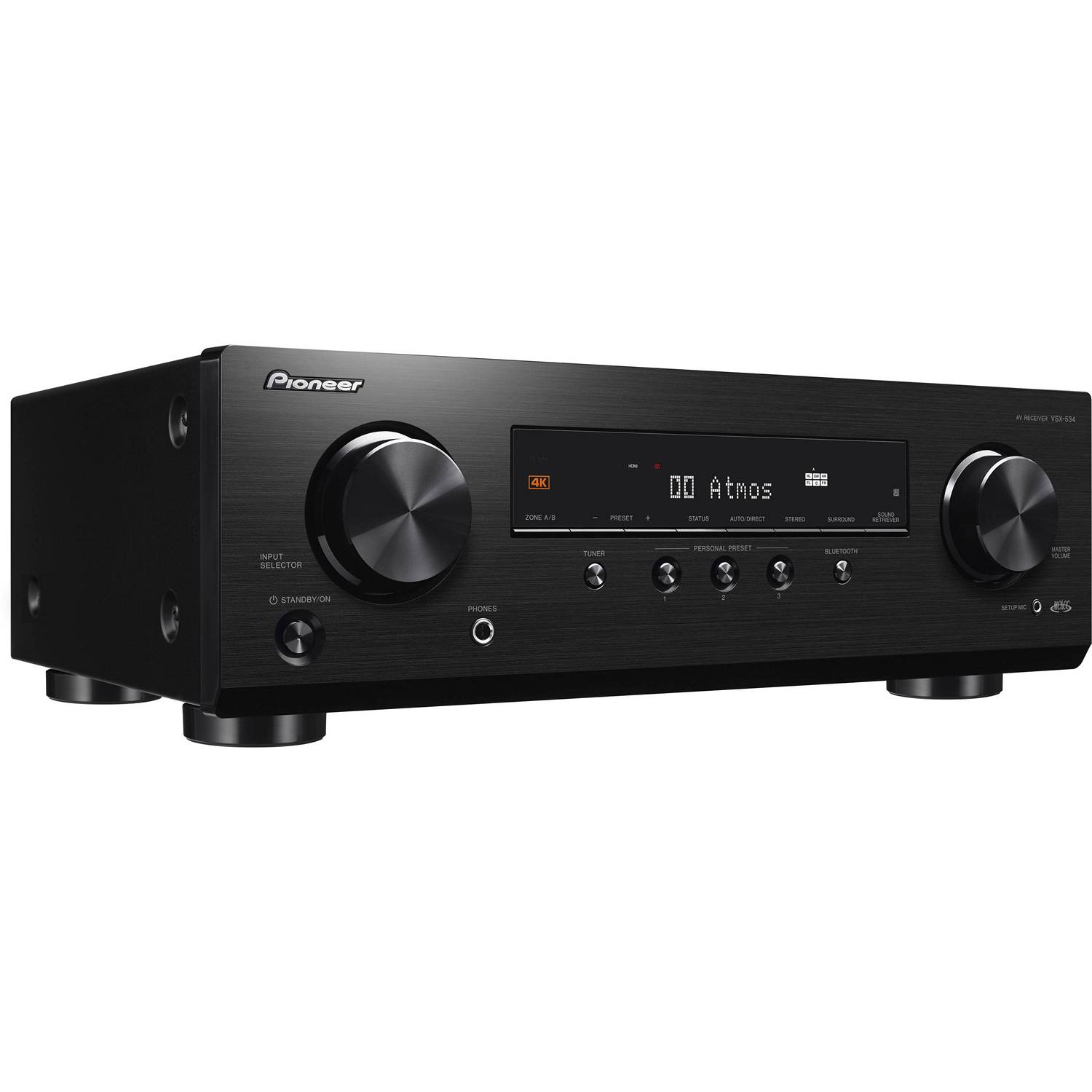

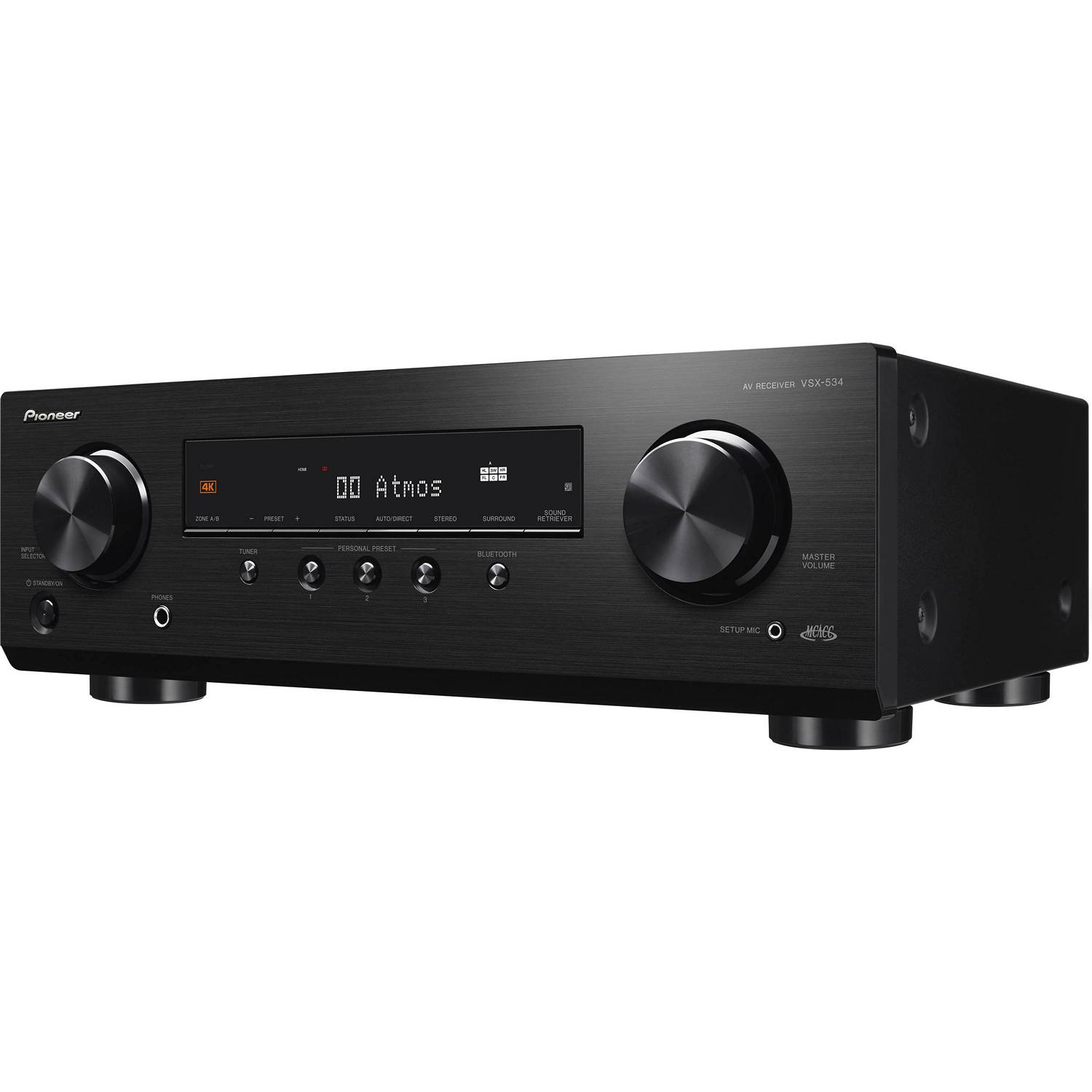

Pioneer VSX-534 5.2 Channel 4K Ultra HD, HDR10, HLG, Dolby Vision/Atmos/DTS:X AV Receiver

Enjoy 4K Ultra HD pass-through with HDR10, HLG, and Dolby Vision support via HDMI with the Pioneer VSX-534 5.2-Channel A/V Receiver. It produces up to 80W of power per channel at 8 Ohms for room-filling sound and supports the Dolby Atmos and DTS:X 3-dimensional audio formats. MCACC sound optimization allows you to tailor the sound to your room's specific acoustics.

Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-capable devices. The VSX-534 is equipped with four HDMI inputs and one HDMI output, which supports ARC for the reproduction of TV-based audio, such as your TV's built-in Netflix or YouTube apps.

Dolby Atmos and Dolby Surround Upmixing
   Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the sound designer the ability to precisely place sounds anywhere in the 3-dimensional space. The VSX-534 features the ability to connect a 3.1-channel surround sound speaker system and two additional overhead speakers, or two additional Dolby Atmos-certified up-firing speakers. Additionally, audio codecs such as PCM and DSD can be upmixed using Dolby Surround for 3D surround sound.

DTS:X and DTS Neural:X Upmixing
   DTS:X is designed to leverage object-based audio to enable immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required for an immersive soundscape with lifelike audio. Audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for 3D surround sound.

Dolby Atmos Height Virtualization, Available via a Future Firmware Update
    When playing any Dolby format, engaging this mode enables a more immersive listening experience by creating virtual surround and height effects from traditional speaker layouts without using surround or height speakers.

DTS Virtual:X
   DTS Virtual:X is designed to provide a three-dimensional immersive sound similar to DTS:X, but without height or rear speakers. It supports 2- to 7.1.4-channel input sources for delivery via 2- to 5.1-channel speaker layouts. It works with all DTS codecs, including DTS:X.

Supports HDR10, HLG, Dolby Vision, and BT.2020
   The VSX-534 supports pass-through for HDR10, HLG, and Dolby Vision signals. By connecting a compatible source device, you can enjoy these video standards on your compatible display. Additionally, all the onboard HDMI terminals support 4K (60p/4:4:4, 24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2 for enhanced compatibility.

MCACC Auto Room Tuning
  MCACC (Multi-Channel Acoustic Calibration System) is designed to automatically compensate for differences in speaker size, level, and distance, and equalize response accordingly to help you achieve an enhanced acoustic environment.

Zone B Output
  The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones. Alternatively, you can connect an amplifier located in a second room to play synchronized audio in both rooms.

Built-In Bluetooth Wireless Technology
   With built-in Bluetooth wireless technology, you can stream songs from compatible devices. The VSX-534 supports the A2DP and AVRCP profiles and the SBC and AAC codecs. By pressing the Bluetooth button on the front panel, you can start the Bluetooth function, even from standby mode.

Personal Preset
   Press the Personal Preset button on the front panel for three seconds and your current settings, such as volume level and listening mode, will be saved. Up to three presets can be registered and recalled via the front panel button or the remote control.

Dialogue Enhancement
   This mid-range sound control feature allows you to make independent volume adjustments to boost the dialogue in your movies. These volume adjustments can be made with the up/down keys on the remote control.

On-Screen Information for Audio/Video Status
   The on-screen display shows detailed input and output information for the playing content, so you can see whether your video is being output in Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X audio.

Soundfield Calibration

Phase control
MCACC memory
9-band EQ
Symmetric EQ
Distance adjustment of 0.1'
Auto subwoofer crossover

Listening Modes

Auto Surround
Direct & Pure Direct
10+1 Advanced Surround
Front Stage Surround Advance

Audio Features

Advanced Sound Retriever
Multi tone control
Lip Sync sound delay
Bi-amp capable

Video Processing

4K UHD video upscaling
3D-ready
HDMI with Audio Return Channel (ARC)
HDMI Standby Through with Input Switch / Last Memory
36-bit Deep Color via HDMI
HDMI x.v.Color
Video converter to HDMI
Super Resolution

Installation Features

Auto power down
FL dimmer
Sleep timer
Surround channels can alternatively be used as height channels

Additional Features

Direct energy design
Digital quad-core 32-bit DSP (Cirrus Logic)
2-channel HDMI SACD transfer
Brushed front panel

Specifications:

• Channels: 5.2
• Power Output per Channel
  1-Channel Driven: 150 W at 6 Ohms / 1 kHz / 10% THD
  2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
• Wi-Fi: No
• Bluetooth: 4.2
• Frequency Response: 10 Hz to 100 kHz +1/-3 dB (Direct Mode)
• THD+N: 0.08% (20 Hz to 20 kHz, Half Power)
• Speaker Impedance: 4 to 16 Ohms
• Tone Control: Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB
• DAC: 384 kHz / 32-Bit (AK4438)

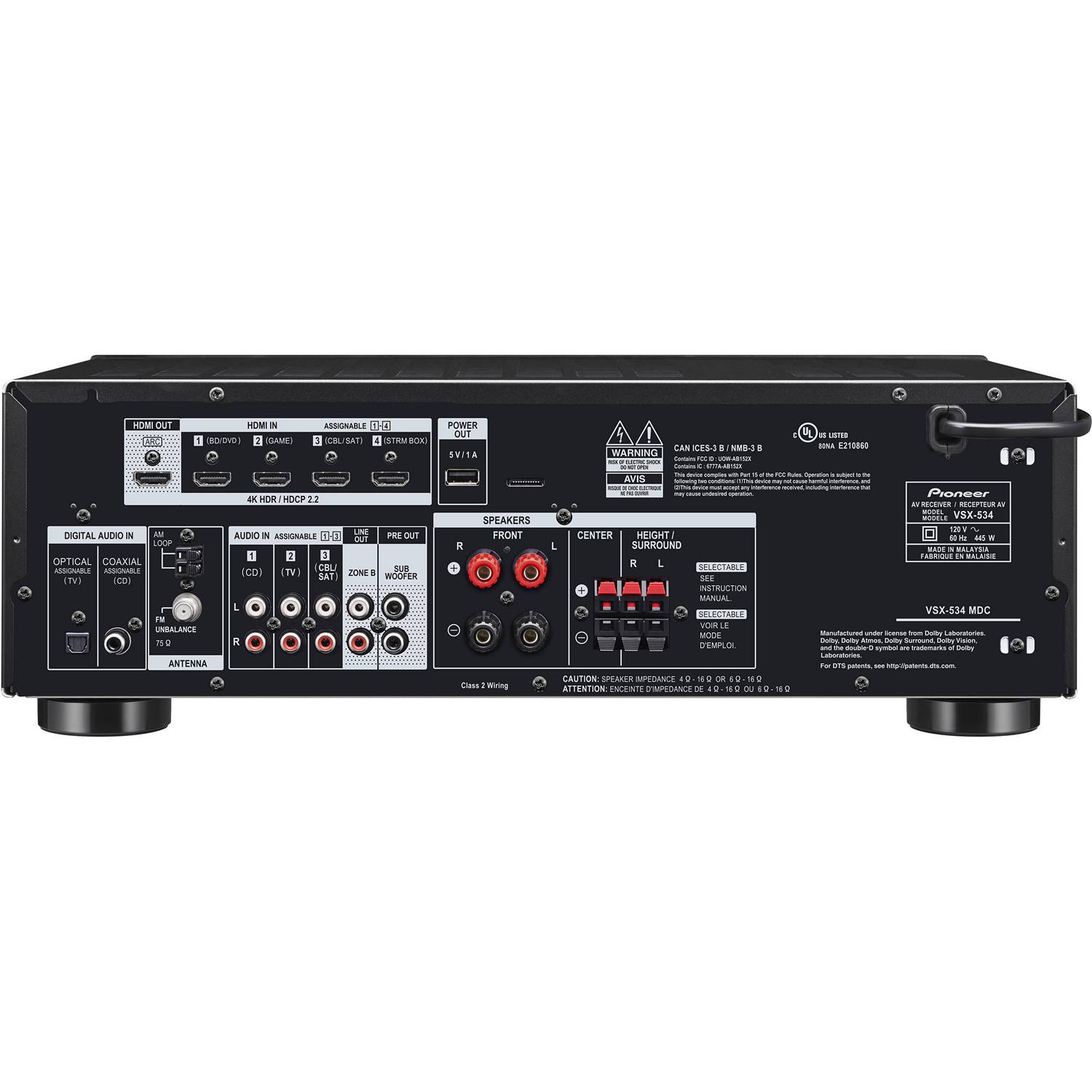

• Rear A/V Inputs:
  4x HDMI
  1x Digital Coaxial
  1x Optical TOSLINK
  3x Stereo RCA
• Front I/O
  1x 1/4" / 6.35 mm Headphone Output
  1x 1/8" / 3.5 mm Setup Mic Input
• Rear A/V Outputs
  1x HDMI
  1x Stereo RCA Zone B
  2x RCA Subwoofer Pre-Out
• Other Rear I/O
  1x USB-A (Power) Output
  1x AM Coaxial F-Type
  1x FM Coaxial F-Type
• Speaker I/O
  2x Binding Post Pairs
  3x Spring Clip Pairs
• Input Impedance: Line: 47 Kilohms
• Input Sensitivity: Line: 200 mV
• Rated Output / Impedance
  Subwoofer Pre-Out: 1 V / 470 Ohms
  Zone B Line-Out: 1 V / 2.3 Kilohms
• Signal to Noise Ratio: Line: 109 dB
• Supported Audio Codecs: AAC, SBC
• Wireless Range: 49.2' / 15 m
• Number of Tuner Presets: 40 Stations
• Radio Frequencies: AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz
• Sensitivity: FM Mono at 50 dB: 1 µV / 11.2 dBf
• Input Power: 120 VAC, 60 Hz
• Power Consumption
  Active: 445 W
  No Sound: 38.6 W
  Standby: 0.1 W
  CEC Standby: 0.1 W
  HDMI Standby Through: 25.7 W
• Dimensions (W x H x D): 17.1 x 5.8 x 12.6" / 435.0 x 148.0 x 321.0 mm
• Weight: 17.6 lb / 8 kg
• Package Weight: 21.1 lb / 9.59 kg
• Box Dimensions (LxWxH): 20.8 x 15 x 9"

What's in the BOX

• 1* AV Receiver
• 1* Remote (2*AA batteries included)
• 1* Power Cord
• 1* User Manual &
• 1* Warranty Card
