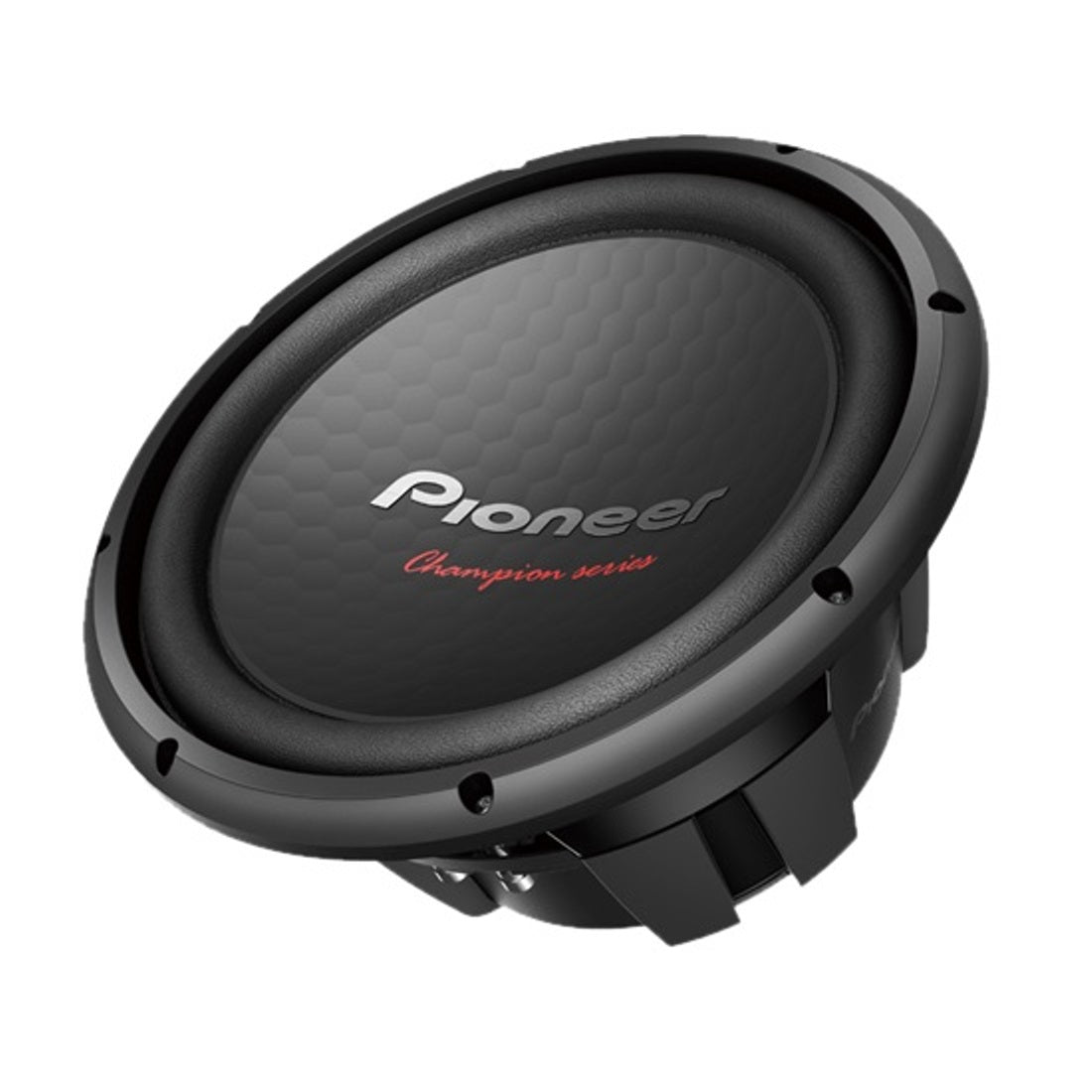

Pioneer TS-W1212D4 12" Champion Series DVC Suwoofer (500W RMS 1600W Peak)

Pioneer TS-W1212D4 12" Champion Series DVC Suwoofer (500W RMS 1600W Peak)

Regular price ₹ 5,799.00
Regular price ₹ 9,190.00 Sale price ₹ 5,799.00
Save 36% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.


Estimated Delivery:


Type: DVC Subwoofer Without Amplifier & Enclosure (Passive)
Size: 12 inches
Total RMS Wattage: 500
Impedance: 4+4 ohms
Warranty: 1 Year Brand Warranty

High Power and high endurance, deeper and louder bass with heavy and sturdy structure. Smart and Authentic Design with honeycomb design cap and big magnet Sub-Woofer.

  • Hybrid surround
  • Firmly enclosed bottom basket

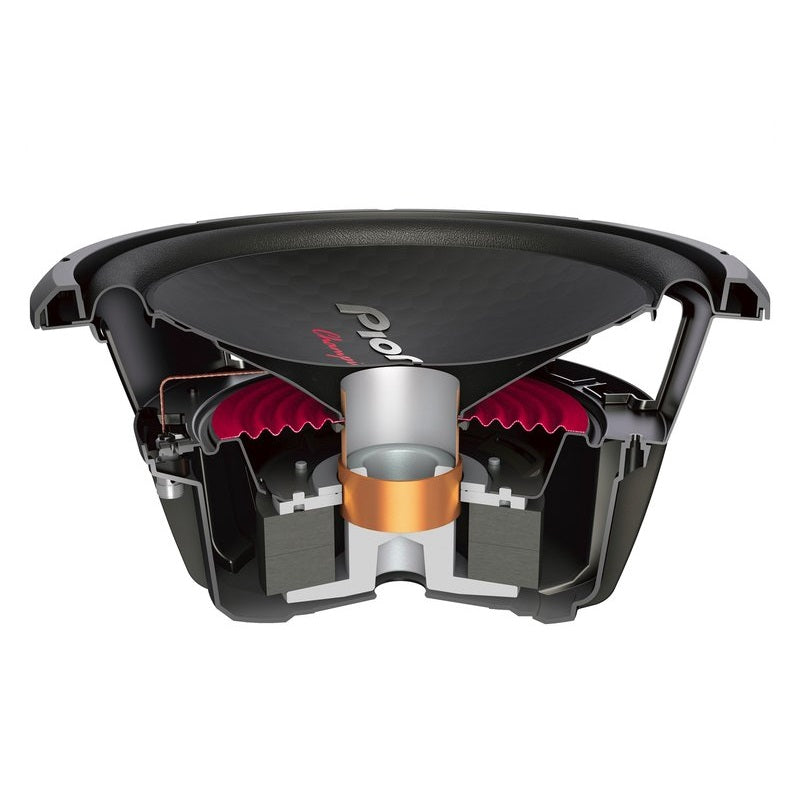

  • Large & Powerful motor assembly
High power handling and High endurance
Dual layer, fiber reinforced elastic polymer surround. High heat resistance voice coil & Large magnet with high heat dissipation.

Deeper & Louder Bass
Rigid seamless structure cone and honeycomb design cap. Double stacked large magnets.

Heavy and High sturdy structure

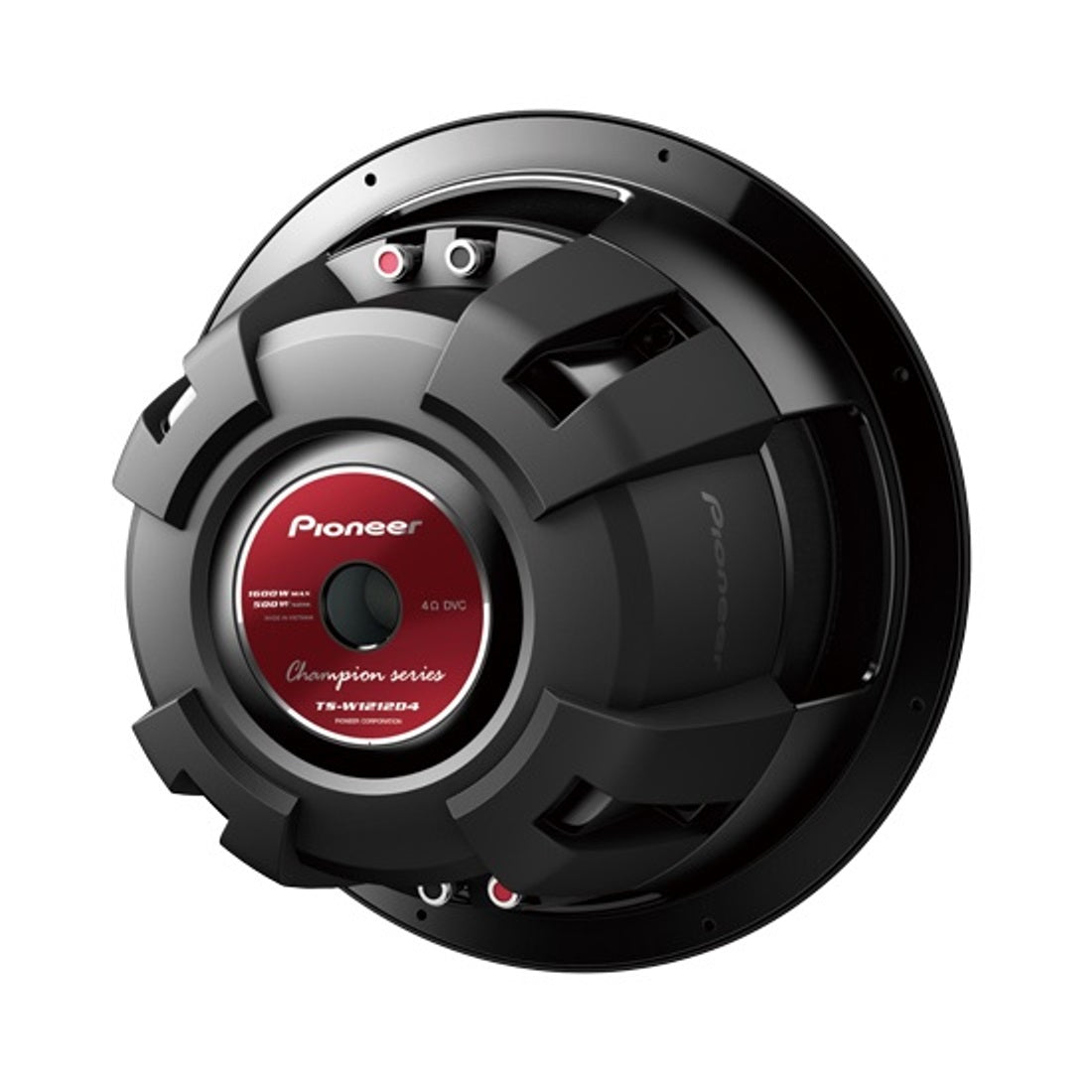

Heavy magnetic circuit and an optimised basket to hold it. Firmly enclosed bottom basket for accurate cone motion.

Light & Rigid honeycomb design seamless cone
Superior power transmission and stronger cone structure for louder sound.

  • General
  • Sound pressure level: 92 dB (±1.5 dB) in car
  • Frequency range: 20Hz ~ 1.6kHz (-20 dB)
  • Maximum power: 1600W
  • Nominal power: 500W
  • Impedance: 4 ohms/Dual voice coil
  • Type: Enclosure use
  • Woofer
  • Cone size: 12"(30cm) Cone
  • Terminal: Silver Push Terminal
  • Cone material: Injection Molded PP
  • Color: Black
  • Surround material: Dual Layer Fiber Reinforced Elastic Polymer Surround
  • Installation information
  • Mounting depth: 157 mm
  • Cutout hole: 283 mm
  • Weight: 5.9 kg (208.09 oz)
  • Dimensions: Φ327 (mm) x 175 (mm)
What's in the BOX
  • 1* DVC Subwoofer
  • 4* Screws
  • 1* Installation Manual &
  • 1* Warranty Card
