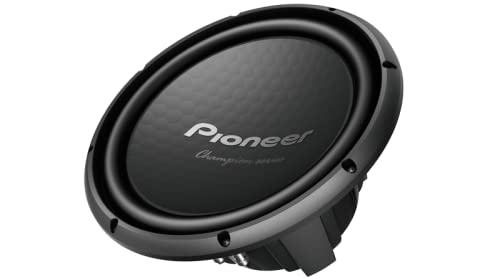

Pioneer TS-W1202D4 12" DVC Subwoofer (400W RMS 1500W Peak)

High power handling and High endurance
   Durable Rubber Surround even during high excursion. High heat resistance voice coil.

Deeper & Louder Bass
   Rigid seamless structure cone and honeycomb design cap. Large magnet motor assembly.

High reliability and Tough body design
   Push terminal specialized for practicality. Seamless large cone & Magnet cover that follows performance models.

Dual Voice Coil
   For loudness & durability as compared to a single voice coil

Light & Rigid honeycomb design seamless cone
   Superior power transmission and stronger cone structure for louder sound.

Tough magnet cover
   To reduce spread of unnecessary vibration that affects bass loss.

Durable rubber surround
   Durable cone motion even during high excursion.

Push Terminal
   Push terminals ensure safe connectivity & avoids loose connections.

Specifications:

• Sound pressure level: 90 dB
• Frequency range: 22Hz ~ 1.6kHz (-20 dB)
• Maximum power: 1500W
• Nominal power: 400W
• Impedance: 4+4 OHMs DVC
• Type: Enclosure use
• Cone size: 12"(30cm) Cone
• Terminal: Silver Push Terminal
• Cone material: PP
• Color: Black
• Surround material: Rubber
• Mounting depth: 146.0mm (5 3/4 inch)
• Cutout hole: 281.0mm (11 1/8 inch)
• Weight: 3.82 kg
• Dimensions: Φ318 (mm) x 163 (mm)

What's in the BOX

• 1* SubWoofer
• 8* Screws
• 1* QSG &
• 1* Warranty Card
