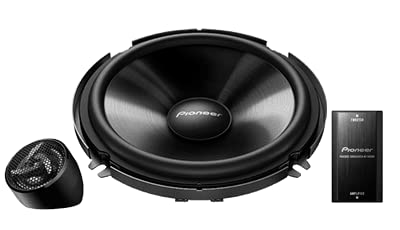

Pioneer TS-C602IN 6.5" Component Speakers (90W RMS 390W Peak)

Specially designed component car speaker 'Made for India' after years of research and development.

After years of exhaustive research and sound tests across India, introducing you the finest option to enjoy your favorite music. TS-C602IN is a component speaker made for India with careful selection of materials to withstand climatic & dust conditions while producing the perfect sound curve.

High rigid IMPP™ cone
Made for Indian climatic conditions & music choice, this cone design made of High rigid IMPP™ cone can last longer than most speakers in the market; all the while reproducing powerful bass sounds and clear vocal sound that move your soul.

Larger Magnet
Redesigned magnet with larger size for more power to drive voice coil. It leads to bigger bass, louder sound and less distortion.

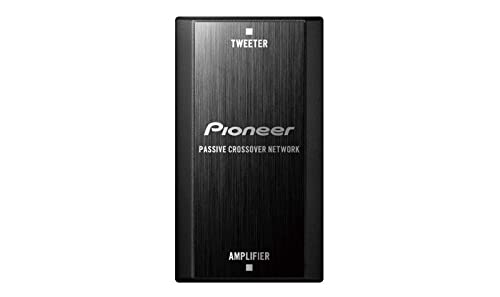

Separate Cross-Over
While your woofer & tweeter justify your music experience, are you missing 'something' in the vocals? Well, it’s the fault of the cross-over which comes with the speaker. Upgrade to Pioneer speakers featuring an external, high-quality crossover which ensures a smooth blend of sounds from the components without losing out any sounds.

Polyimide diaphragm
Specially designed diaphragm material made from Polyimide Diaphragm to withstand extreme heat such as Indian climatic condition. It produces clear and crisp vocal sound.

CarSoundFit App
This app simulates in-car sound when Pioneer speakers are installed into vehicles. You can experience a difference with originally fitted speakers and Pioneer speakers.
This simulated experience is created by using real measurement data of the vehicles' sound field and speaker acoustic data.
Download Android App iOS App

Dust prevention
Pioneer heat release structure allows us to reduce ventilation holes & clearance gaps. The results are optimally efficient heat dissipation and prevention of entry of dust that can cause malfunction.

Aluminum bobbin

High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life.

Elastic polymer surround
Cone surround is made of elastic polymer for strong bass

Long Voice Coil
Enable large displacement. Helps in producing strong bass and High power handling.

High heat resistance
Made for Indian climatic conditions, especially extreme heat

Tweeter mounting option
Various mounting options are included in the package to install tweeter.

Specifications:

General

• Type: Separate. 2-WAY (component package)
• Sound pressure level: 88db(±1.5dB)
• Frequency range: 30Hz~30000Hz(-20dB)
• Maximum power: 390W
• Nominal power: 90W
• Cone size: 6-1/2" ( φ160 mm), CONE
• Impedance: 4 OHM
• Crossover frequencies: 3500 Hz

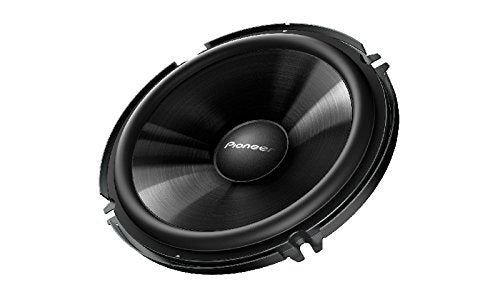

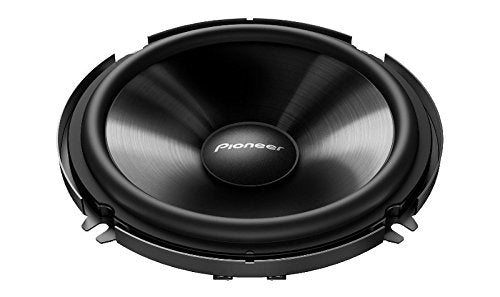

Woofer

• Cone material: High rigid IMPP Cone
• Color: BLACK
• Surround material: Light weight elastic polymer

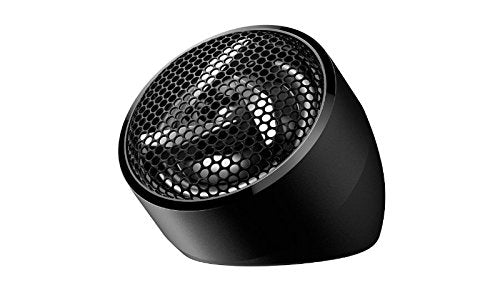

Tweeter

• Type: Dome
• Diaphragm material: Polyimide
• color: Black

Installation Information

• Weight: 0.65kg
• Mounting depth: 53mm
• Cutout hole: 128mm
• Dimensions (Dia x Depth): φ159(mm) x 68(mm)

What's in the BOX

• 2* Speakers
• 2* Crossovers
• 2* Tweeters
• 1* Installation Manual
• 1* Warranty Card
