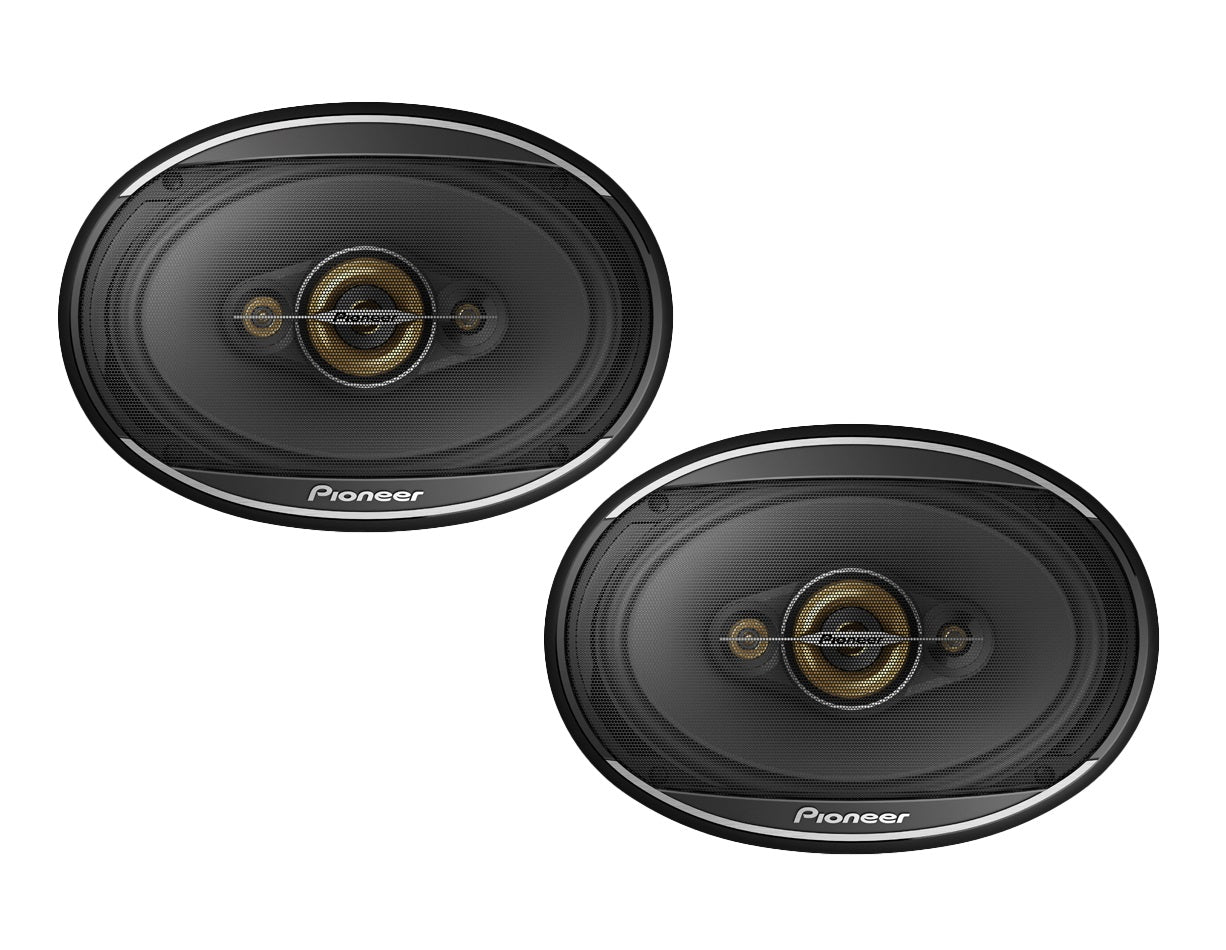

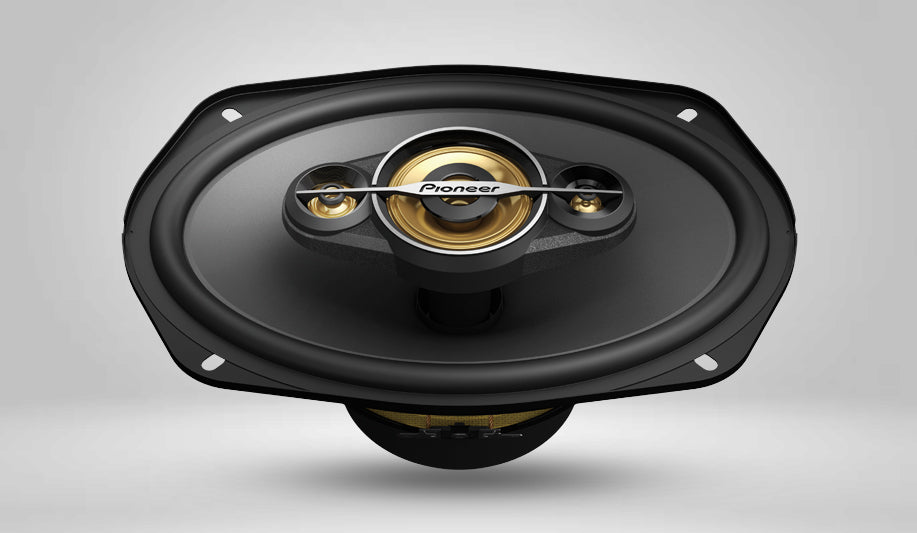

Pioneer TS-A942F 6x9" 4-Way Coaxial Speakers (90W RMS 450W Peak)

Get deeper and richer bass sound, in spite of shallow type design with installation flexibility.

It is the best choice for cars with space constraints. These oval shaped speakers featuring a shallow basket can be easily placed in your car and reproduce deeper and richer bass sound.

Open & Smooth Concept
    Open & Smooth concept delivers Wide Sound Staging (Open) and Smooth Transition (Smooth) that targets the natural sound in car.

Carbon & MICA Reinforced IMPP
    The new rigid Carbon and Mica Reinforced IMPP cone and Elastic polymer Surround provide quicker response and higher sensitivity produces deep and rich sound bass.

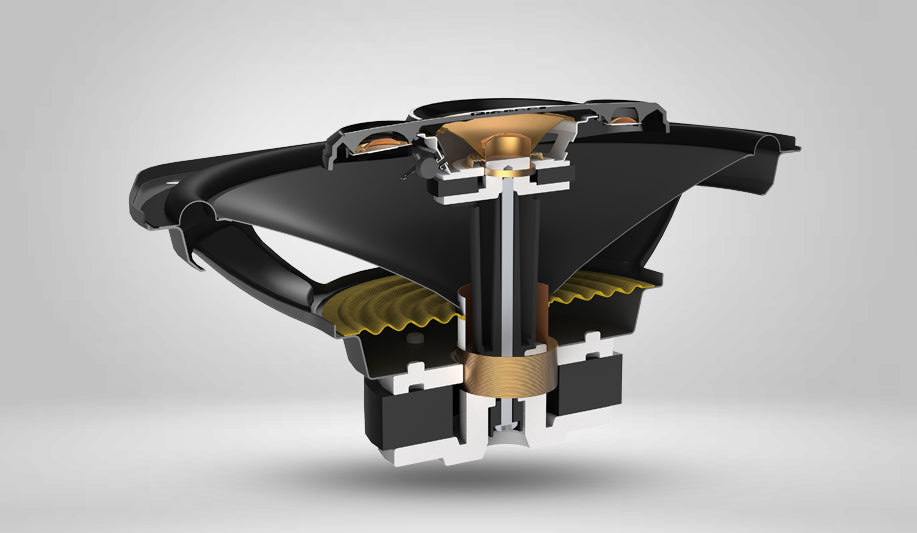

Optimized Motor Design
    The new magnetic circuit and a long and symmetrical voice coil make both rich bass and low distortion possible.

Full covered grille
    This prevents a physical damage and deliver a reliability and high endurance.

Shallow basket
Light weight design with lesser mounting depth for easy installation in your car.

Evolved Midrange
Newly designed pulp cone midrange reproduce high frequency sound more clearly.

Larger Magnet
Redesigned magnet with larger size for more power to drive voice coil.

Elastic polymer surround
Cone surround is made of elastic polymer for better response time & durability


Specifications:

• General Information
• Type: Coax. 4-way
• Maximum Music Power: 450 W
• Nominal power: 90 W
• Frequency Response: 29Hz to 28KHz (-20dB)
• Impedance: 4Ω
• Cone size: 6"x9"(163mmx237mm)
• Sensitivity: 92dB
• Woofer
• Cone material: IMPP Composite
• Color: Black
• Surround material: Elastic Polymer
• Mid-range
• Cone material: Pulp
• Color: Black
• Tweeter
• Cone material: PET
• Color: Red Gold
• Installation information
• Dimension(with grille): (W) 186 X (H) 266 X (D) 102 [mm]
• Cut out hole: 153X222[mm]
• Mounting depth: 72[mm]

What's in the BOX

• 2* 6x9" Speakers
• 2* Speaker grilles
• 2* Speaker wires
• 8* Screws
• 1* Warranty card
