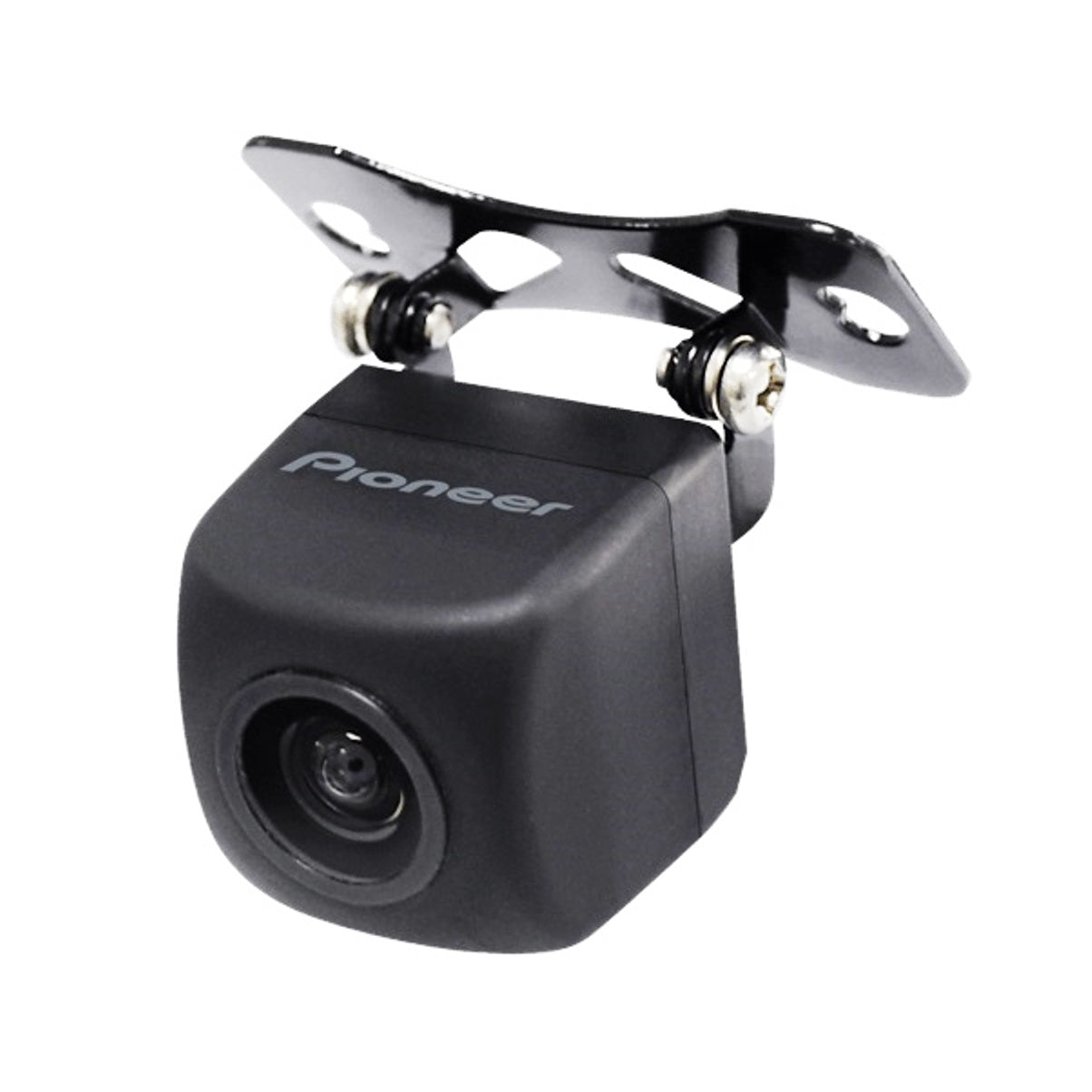

Pioneer ND-BC02 Universal Rear Number Plate Camera

The ND-BC02 is designed to capture vivid images with minimal noise regardless of the operating condition. Rated IP67, this camera can withstand water, dirt, and sand. It also incorporates a highly efficient color sensor and modern electronics, reducing your power consumption.

Rated IP67
       The camera is designed environmentally to withstand water, dirt, and sand - capable of withstanding water immersion between 15 cm and 1 meter for 30 minutes. The number 6 is for total protection against dust. The second number of the IP rating system refers to protection against liquids.

1/3'' Color CMOS Sensor
       The ND-BC02 also also incorporates a highly efficient color sensor and modern electronics, reducing your power consumption.

Specifications:

• Power source: 12.0 V DC
• Max. current consumption: 100 mA or Less
• Output video: Mirror image((for rear view confirmation)
• Sensor: 1/3-inch colour CMOS sensor
• No. of pixels: effective no. of pixels roughly 345600
• Lens: Wide-angle, focal length f = 1.62m, F value 2
• Angle of view: Horizontal: approx. 120°,Vertical: approx. 100°
• Scanning system: Line by line
• Synchronizing system: Internal synchronization
• Signal-to-noise ratio: 48 dB or more
• Horizontal resolution: Approx. 420 TV lines
• Illumination range: Approx. 0.5 lux to 100 000 lux
• Image output: NTSC compatible 1 Vp-p (75Ω)
• Operation temperature range: -30°C to +70°C
• Storage temperature range: -40°C to +85°C
• Dimensions (W x H x D): 23.5 mm x 23.5 mm x 24.0 mm
• Weight: 168 g
• Rear view camera: 1.3 m
• RCA / Power supply cable: 7 m / 0.3 m

What's in the BOX

• 1* Rear View Camera
• 2* Screws
• 1* Power Supply Cable
• 1* Connector Cable &
• 1* Warranty Card
