Pioneer

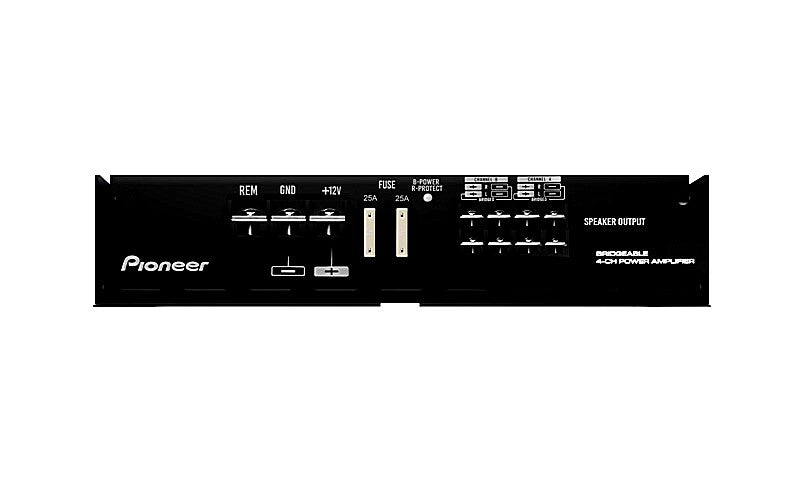

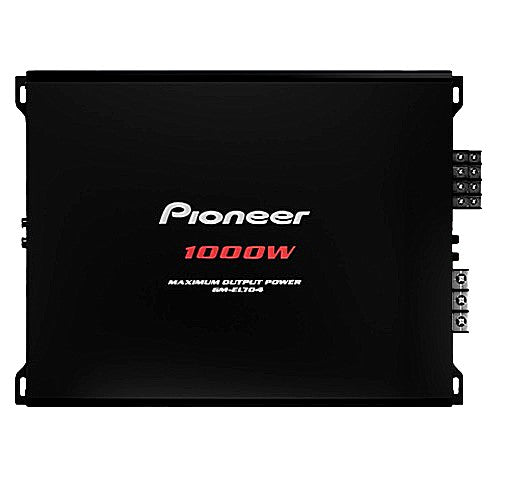

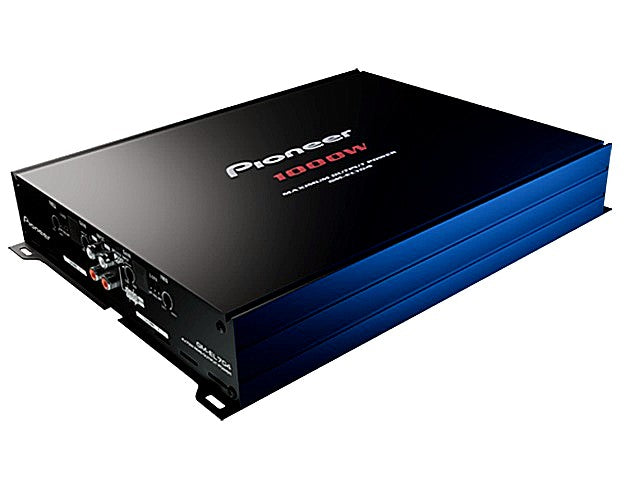

Pioneer GM-EL704 Class A/B 4/3/2 Channel Amplifier (RMS: 70W*4 (4Ω) 95W*4 (2Ω))

Pioneer GM-EL704 Class A/B 4/3/2 Channel Amplifier (RMS: 70W*4 (4Ω) 95W*4 (2Ω))

₹ 10,629.00
₹ 14,000.00 ₹ 10,629.00
Save 24% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.

IN STOCK

Estimated Delivery:

-


Type: Class A/B Amplifier
Channel Output: 4/3/2 Channels
Total RMS Wattage: 280
Impedance: 2/4 ohms
Warranty: 1 Year Brand Warranty

Power Meets Precision. Deep Bass. Clear Sound. Total Control. Built to elevate every drive with powerful performance and seamless connectivity.

High Power and Energetic Sound
High output with the large-capacity electrolytic capacitors. Stable performance ensured with optimized PCB board.

Flexible Sound Tuning

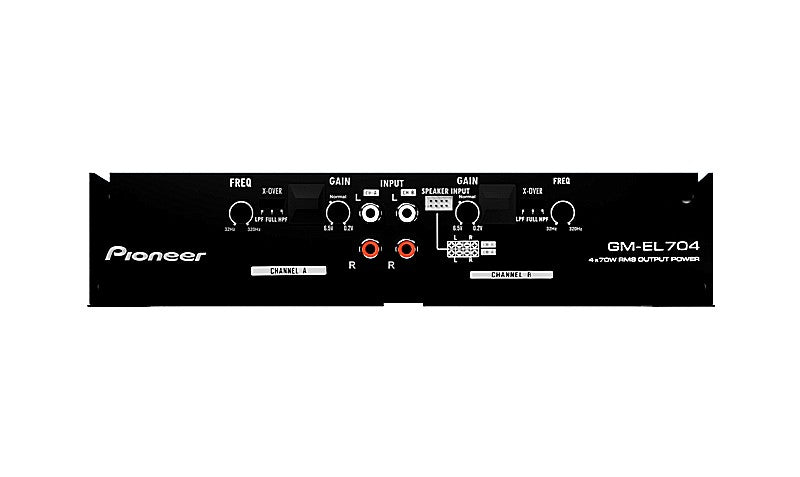

Wide range, variable LPF & HPF for system flexibility. Two-step Bass Boost as a juice for more fun!

Two-step BASS BOOST

Wide range, Variable LPF & HPF

Specifications:

  • Frequency Response: 15~22kHz+/-1dB
  • THD: <0.1%
  • SN Ratio: >80dB
  • Crossover frequency (A-CH): HPF 32-320Hz / LPF 32-320Hz
  • Crossover frequency (B-CH): HPF 32-320Hz / LPF 32-320Hz
  • Bass Boost (A-CH): 50Hz / Min(0dB), Mid(3dB), Max(6dB)
  • Bass Boost (B-CH): 50Hz / Min(2dB), Mid(4dB), Max(6dB)
  • Max Wattage (4 ohms): 125W*4 (4 ohms), 250W*4 (2 ohms)
  • Max Wattage Bridged (4 ohms): 500W*2
  • Rated Power(2 ohms <=1% THD+N): 95W*4
  • Rated Power(4 ohms <=1% THD+N): 70W*4
  • Rated Power(Bridged 4 ohms): 190W*2

What's in the BOX

  • 1* Amplifier
  • 1* Installation Manual &
  • 1* Warranty Card
View full details
