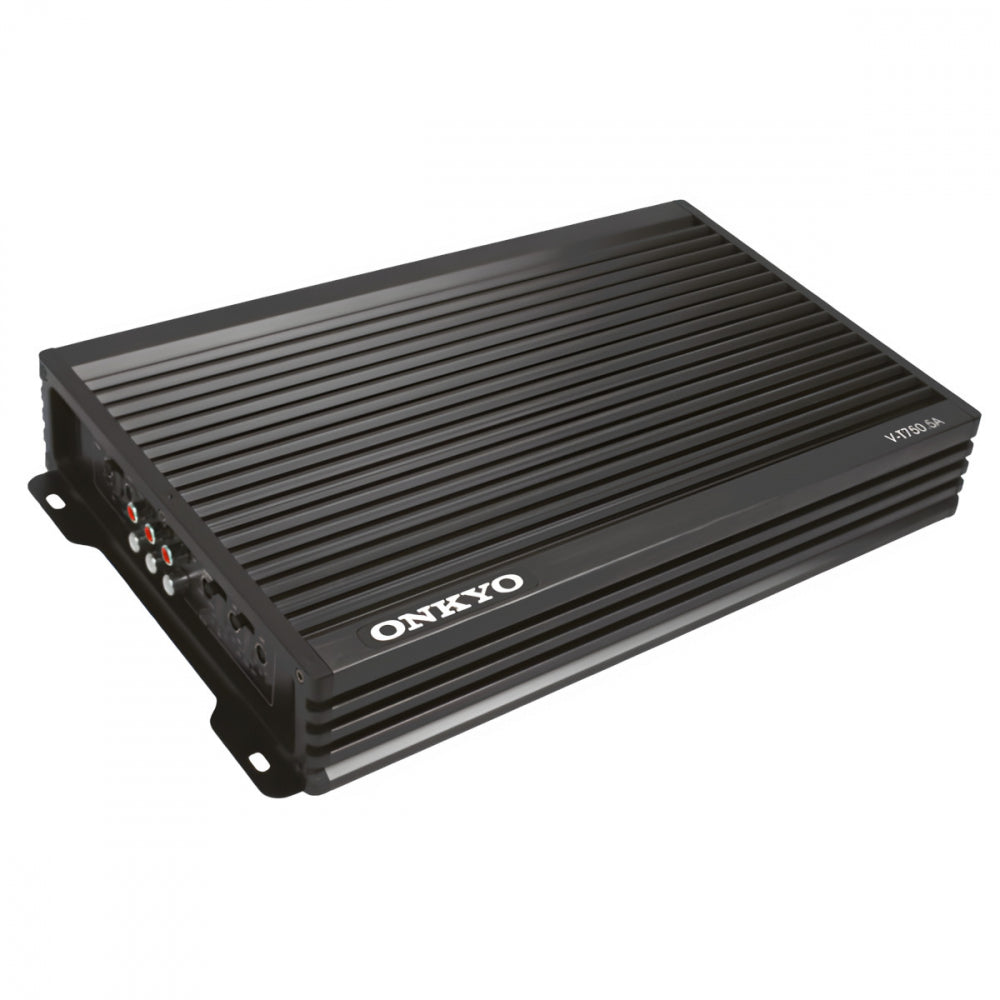

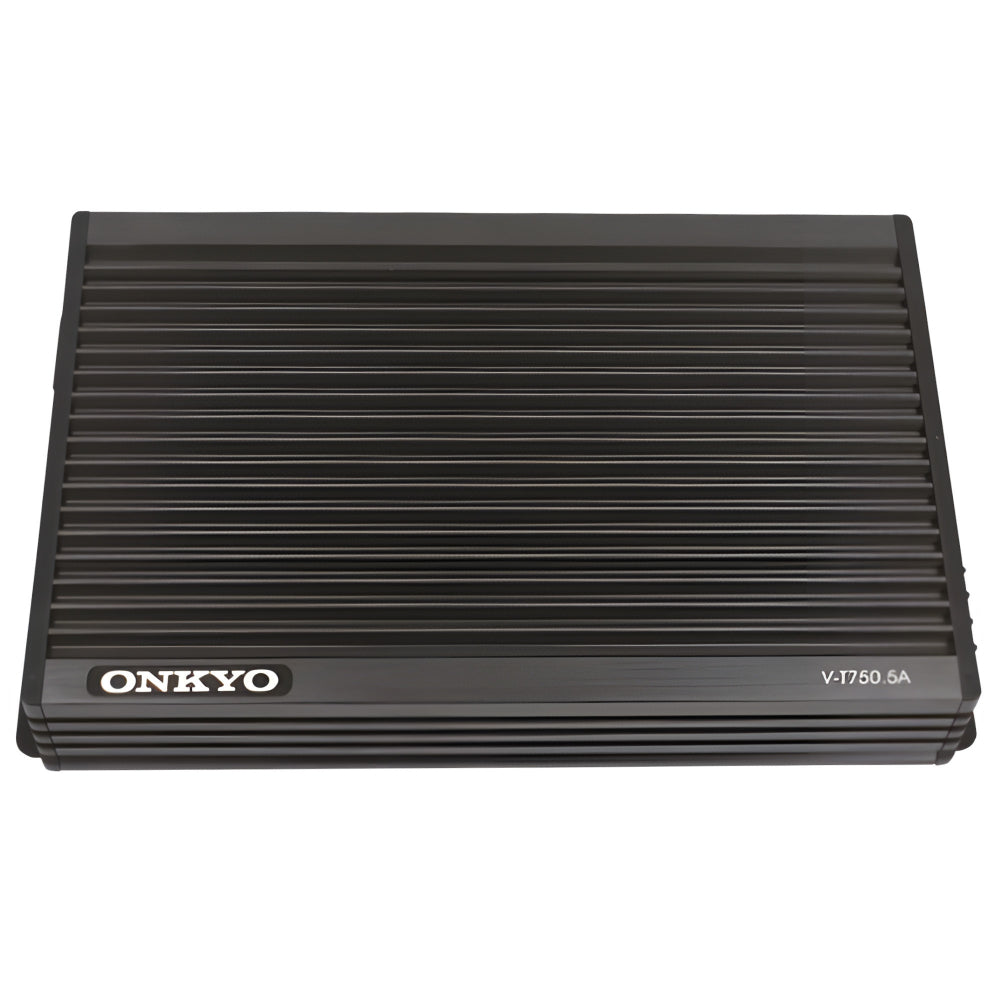

Onkyo V-T750.5A 5 Channel Class A/B Amplifier (RMS: 75W*4 350W*1 (4Ω); 90W*4 500W*1 (2Ω))

The Onkyo V-T750.5A is an affordable, high-performance five-channel amplifier that takes care of your entire sound system. With four channels for your speakers and a dedicated channel to drive a subwoofer, this is an all-in-one solution for all the speakers in your car! With high-quality components, low distortion, and flexible tuning options, this amplifier is built to give you maximum sound for your money.

Features:

• 5-Channel, Class-AB Full Range Amplifier
• Stable into 4 ohms bridged or 2 ohms stereo load
• MOSFET power supply
• RCA and OEM speaker level input
• Variable Inputs Gain Control
• Variable FULL / LP / HP Electronic Crossover
• Variable Bass Boost

Specifications:

• Power @ 4Ω: 4 x 75 + 1 x 350 watts
• Power @ 2Ω: 4 x 90 + 1 x 500 watts
• Power @ 4Ω Bridged: 2 x 180 + 1 x 500 (2Ω)
• Max Power: 3600 watts
• THD @ Rated Power  < 0.2%
• Signal to Noise Ratio > 90dB
• Frequency Response 20Hz to 20kHz ±1dB
• Input Sensitivity .15v to 8v
• High Pass Filter: 40-3000Hz
• Low Pass Filter: 40-250Hz
• Dimensions in mm: 357(W) x 55(H) x 217(L)
• Net Weight: 3.06 kgs

​What's in the BOX

• 1* Amplifier

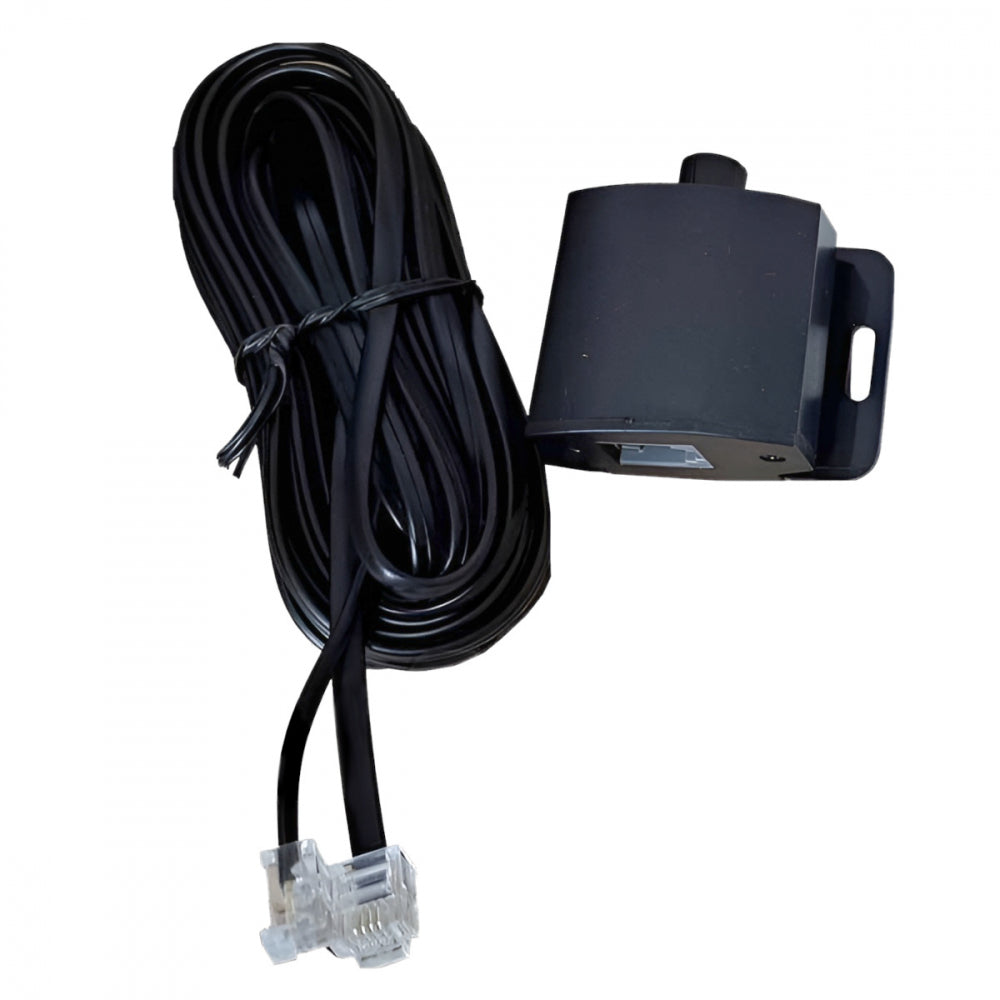

• 1* Wired Bass Remote
• 4* Screws
• 2* 40A Fuse
• 1* User Manual &

• 1* Warranty Card
