Nakamichi

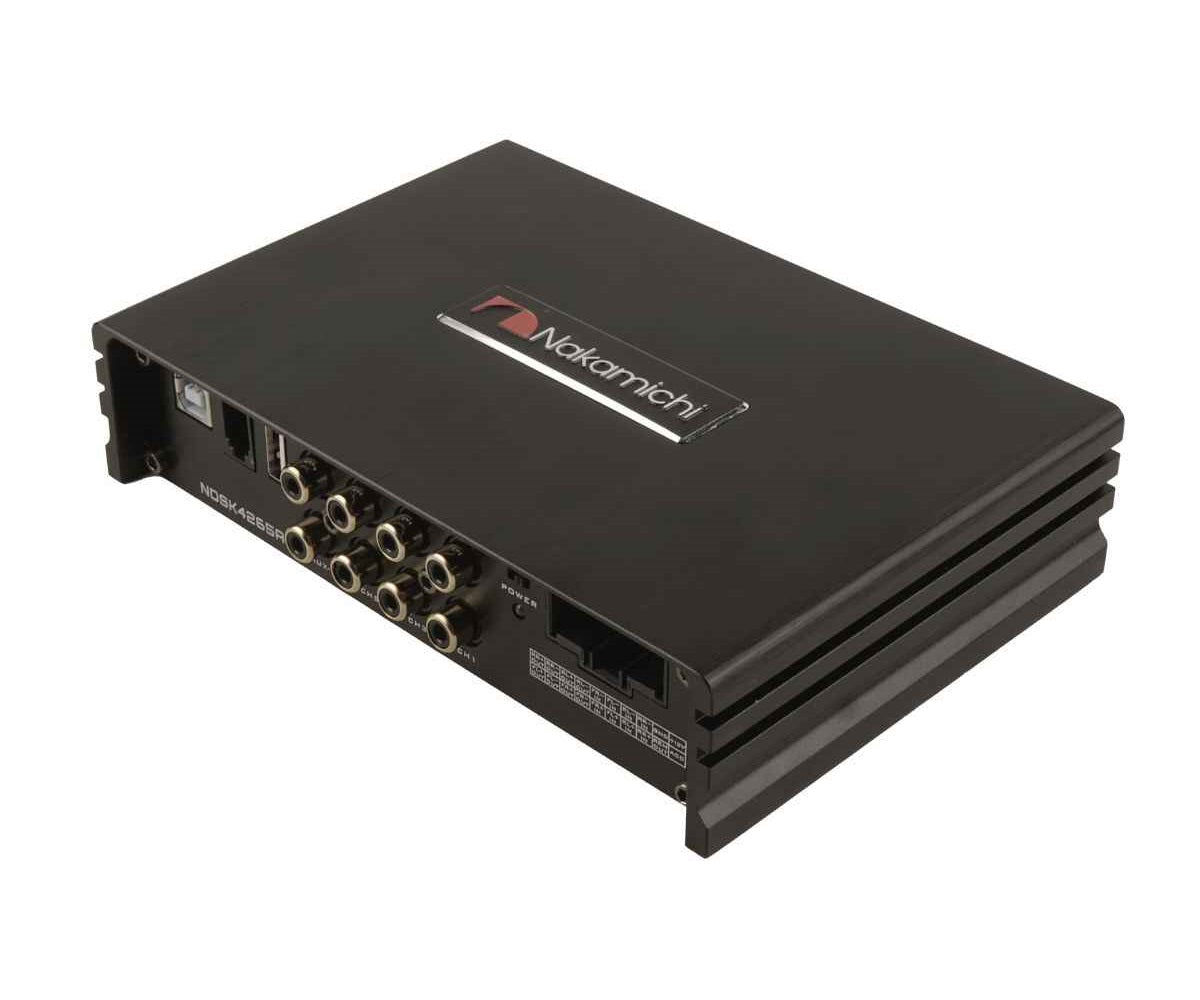

Nakamichi NDSK4265AU 6 Channel DSP / 4 Channel Class AB Amplifier

Nakamichi NDSK4265AU 6 Channel DSP / 4 Channel Class AB Amplifier

Regular price ₹ 11,499.00
Regular price ₹ 15,990.00 Sale price ₹ 11,499.00
Save 28% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.

IN STOCK

Estimated Delivery:

-


Type: DSP Amplifier
Channel Output: 6 Channels
Total RMS Wattage: 120
Impedance: 2/4 ohms
Warranty: 1 Year Brand Warranty

Specifications:

  • Dynamic Range(RCA Input): ≥100dB
  • S/N (RCA Input): ≥90dB
  • Frequency Response: 20Hz~20KHz
  • Input Impedance: High Level Input:51Ω
  • Low level Output Impedance: 100Ω
  • Signal Input: RCA Input:8Vpp;High Level:26Vpp
  • Output Range: RCA Output:7Vpp;N-Power Output: 4x30W Power
  • Power: DC 9V-16V
  • REM Input: High Level Input Signal: FR+/FR-or ACC control cable
  • REM Output: +12V Start up Voltage Output
  • Standby Power: ≤0.1W
  • Gross Weight: Approx. 0.7kg
  • Box Dimension(L×H×W): 174.5×120×40mm
  • Input Signal Type: 4 Channel high level,2 Channel low level,supports internal Bluetooth and USB music playback
  • Output Type: 6 Channels low level,4 Channels high level
  • Output Gain: Gain range: Mute,-59dB~6dB
  • Output Signal EQ:
    • 31-band EQ for every channel
    • Frequency Range: 20Hz~20KHz,1Hz Accuracy
    • Q value(Slope): 0.404~28.85
    • Gain:-20.0dB~+20.0dB,0.1dB Accuracy
  • Output Signal Crossover:
    • Equipped with high and low pass filters.
    • Professional filtering types: Butter-W, Bessel,Link-Rill
    • Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz
    • Filter Slope setup: 6dB/Oct ~ 48dB/Oct
  • Output Phase and Time Alignment:
    • Adjust phase and time alignment for every output channel
    • In Phase or Out Phase(0°-180°)
    • Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch.
  • Presets: Save up to 6 presets into the device.

What's in the BOX

  • 1* DSP Amplifier
  • 2* User Manuals
  • 1* USB 2.0 Cable (1.5m)
  • 2* Installation Brackets
  • 2* Self Taping Overhead Screws (4x20mm)
  • 4* Cross Head Mechanical Screws (3x8mm)
  • 2* Velcro (sets)
