Mission Mcube+SE 5.1 Home Theater Speaker Package

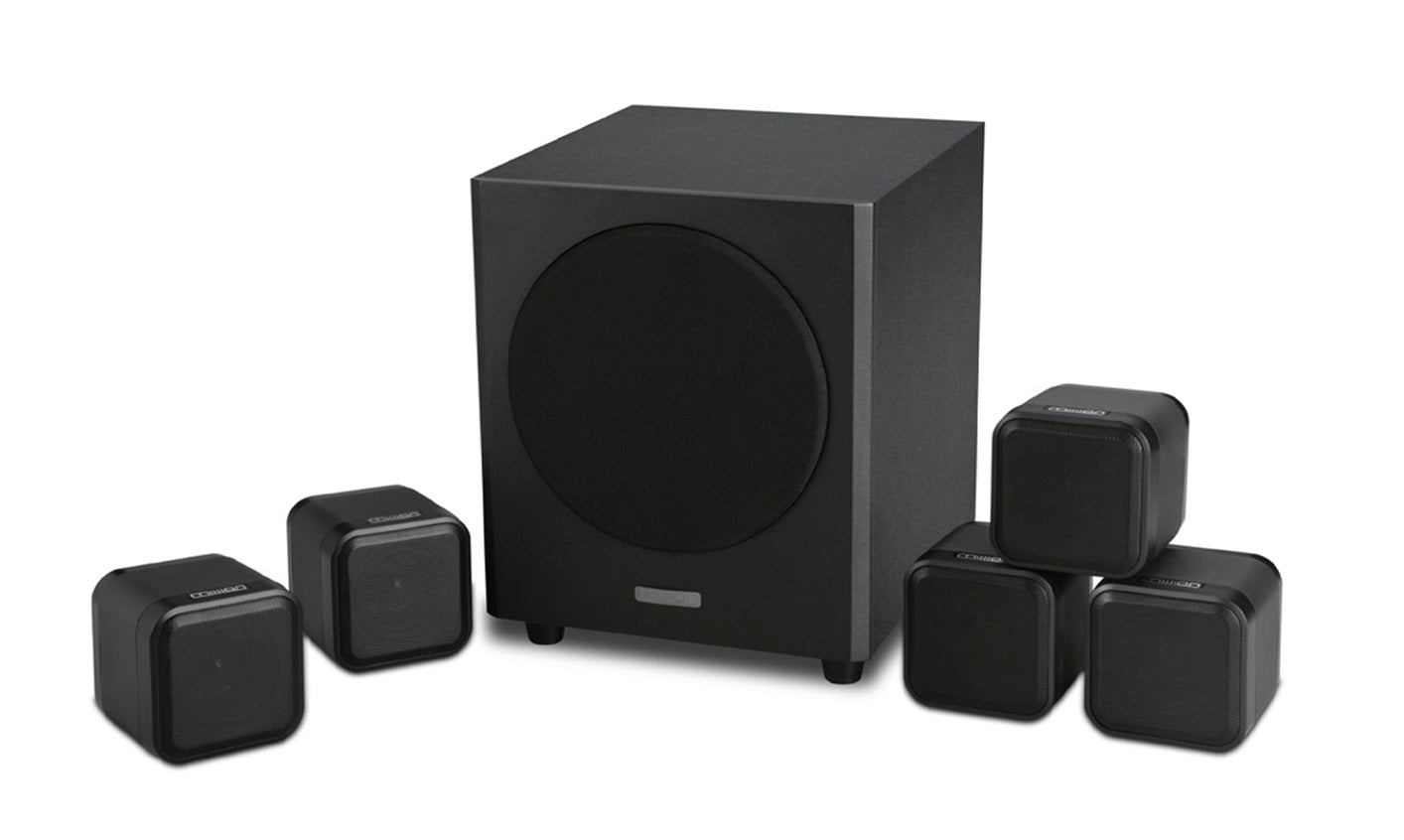

Continuing the success of the M-CUBE series we, at Mission, bring to you this latest version which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative M-CUBE range.

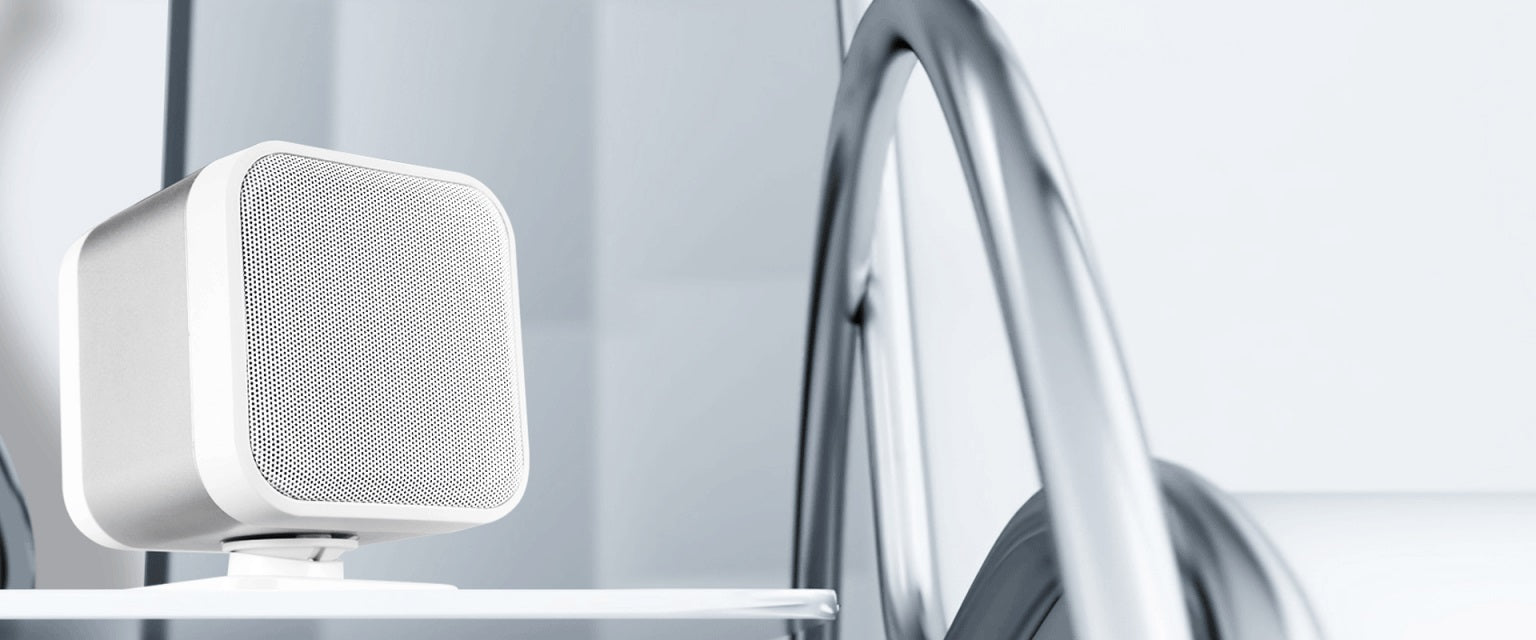

The M-CUBE+SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home. Installation is simple thanks to the small, elegant appearance of the M-CUBE+SE satellite speakers multiple mounting arrangements and the wide dispersion characteristics.

The full-range driver in each M-CUBE+SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area.

The M-CUBE+SE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control. This is the result of using a 200mm long-throw, high linearity sub-bass unit driven by a new 150 Watt Class D amplifier equipped with precisely aligned equalization for a clear and powerful bass rendition that matches the satellites.

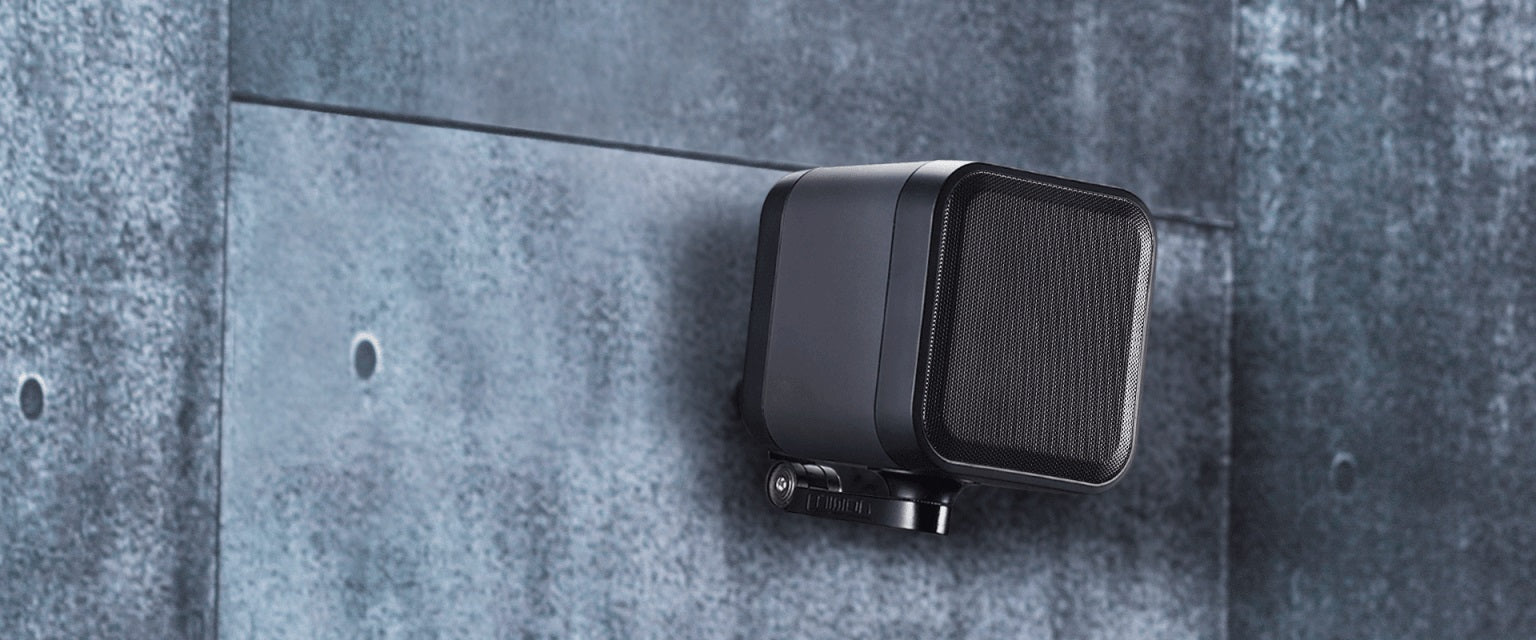

With easy-install on-wall or shelf mounting, the new Mission M-CUBE+SE is the solution for anyone looking for hi-fi quality sound from AV and music sources who require a versatile and discrete loudspeaker system.

Specifications:

• M-CUBE+SE SATELLITE
• General description: Wide bandwidth bookshelf/surround speaker
• Enclosure Type:    Close box
• Transducer driver: 3” Full range
• AV shield: No
• Sensitivity (2.83V@1M):    85 dB
• Recommended amplifier power: 40-80 W
• Nominal impedance: 8 Ohms
• Minimum impedance: 3.6 Ohms
• Frequency response (+/-3dB): 120Hz-20KHz
• Bass extension(-6dB): 110 Hz
• Cabinet Volume (in litres): 0.52 L
• Dimension (H*W*D)MM: 100*100*103
• Carton Size (L*W*H)MM: 390*390*525 (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
• Net weight (Kg): 12 (Packed in a system, incl. subwoofer and 5pcs satellite speakers)
• Gross weight (Kg): 14 (Packed in a system.incl. subwoofer and Spcs satellite speakers)
• Standard accessories: Desk stand, User manual, guarantee certificate
• M-CUBE+SE SUBWOOFER
• General Description: Active closed-box subwoofer system
• Enclosure type: Closed box
• Transducer complement: 8 inch (200mm) long throw bass driver
• Input sensitivity: 200mV for maximum Ouput
• Amplifier power output: 70W
• Peak power output: 150W
• Peak SPL: 110 dB
• Frequency response: 40Hz -150 Hz
• Bass extension (-6dB): 35Hz
• Crossover frequency: 35Hz -150 Hz
• Signal -to-noise ratio(s/n): >85dB
• Special features: Phase inversion, Auto On/Off, low pass filter frequency adjustment
• Dimension (H*W*D)MM: H(298+30)*W268*D294
• Power requirements: AC 100V-120V~/60Hz or 220V-240V~50/60Hz
• Standard accessories:    Power cord, floor spikes, user manual, guarantee certificate
