Marantz Cinema 60 Premium 7.2 Channel 8K Ultra HD AV Receiver with HEOS Built-in | Dolby Atmos & Vision | 6 HDMI Inputs | DTS:X

Engineered To Perform
    Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.

Exquisite Design
    A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Peerless Performance
    Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.

Sound Master Tuned
    The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader
    CINEMA 60 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

For the Soundtrack of Your Life
    HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.

• Power Amplifier
  • Number of Powered Channels: 7
  • Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W
  • Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
  • Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
  • Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200 W
  • 70% Guarantee Yes
  • Discrete Power Amplifier Yes
  • Amplifier Topology Class A/B
  • Current Feedback Topology Yes
  • Bi-Amp Drive assign
• Multichannel Surround Technologies
  • DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
  • Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
  • Max Number of Processing (Preamp) Channels: 7.1

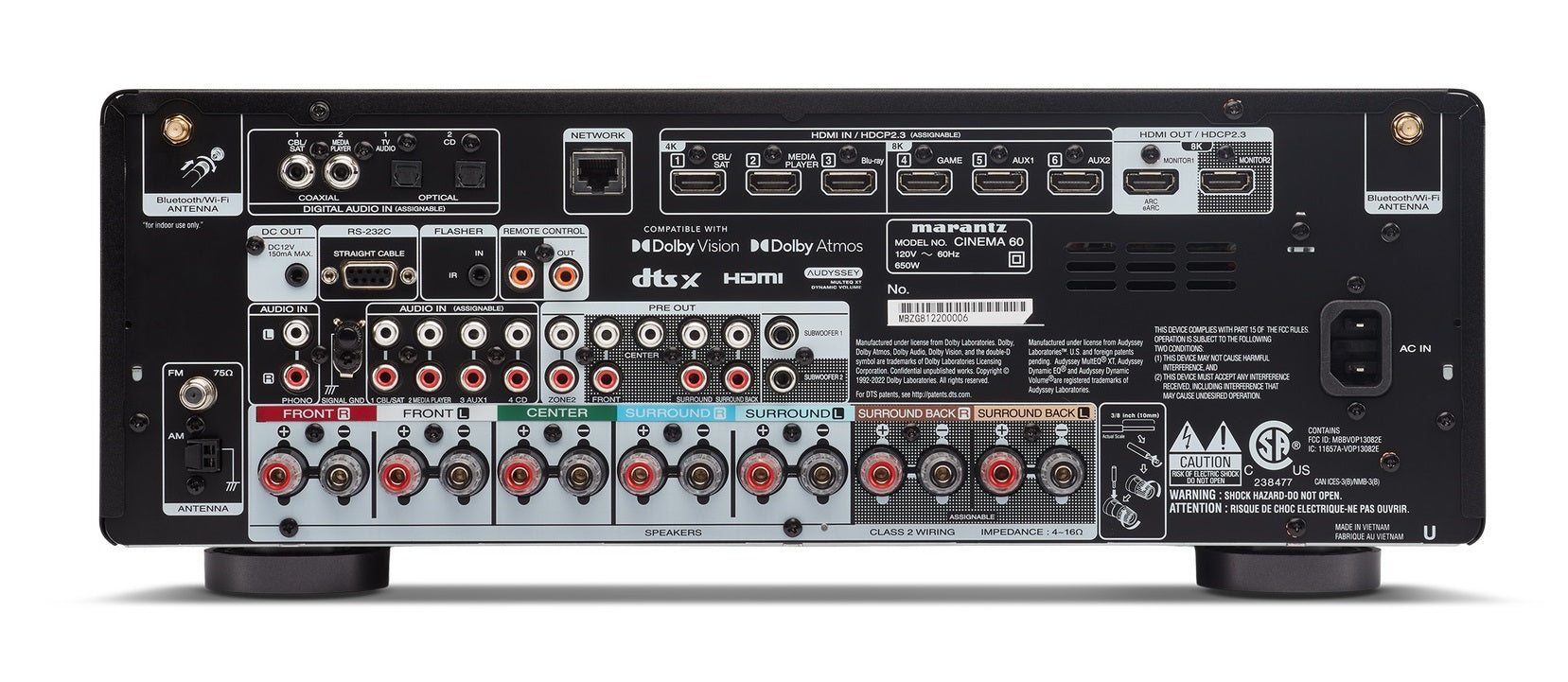

• Inputs Outputs
  • HDMI In / Out: 6 / 2
  • Multi-Room Video Out via HDMI: No
  • Analog In / Fixed Level Out: 4 in / 0 out
  • Phono (MM) In: Yes
  • Digital In: Optical / Coaxial 2 / 2
  • Multi-Room Out: analog / digital 1 / 0
  • Multichannel Preamp Out: 7.2
  • Subwoofer Out: 2
  • 7.1 multichannel input: No
  • Number of Speaker Terminals: 7
  • Speaker A / B assignable
  • Multi-Room Speaker Terminal assignable
  • Front Inputs USB-A
  • USB Audio / Made for iPod / Made for iPhone: Yes / No / No
  • AM/FM Tuner: Yes
• HDMI
  • Total HDMI Inputs / No. Support 8K: 6 / 3
  • HDCP2.3 support: Yes
  • HDMI Outputs: Main / Zone 2 / 0
  • Analog to HDMI Video Conversion: No
  • HDMI Upscaling: 1080P/4K to 8K
  • Max resolution @ framerate: 8K/60Hz, 4K/120Hz
  • Audio Return Channel: ARC, eARC
  • Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
  • ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
  • Variable Refresh Rate / Quick Frame Transport: Yes / Yes
  • HDMI Pass-Through in Standby Mode: Yes
  • CEC: Yes
  • DSD Audio over HDMI: No
  • Auto LipSync: Yes
• Performance Technologies
  • Copper Plated Chassis: No
  • Toroidal Power Supply Transformer: No
  • Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
  • Pure Direct Mode: Yes
  • Gold Plated RCA Terminals: No
  • Clock Jitter Reducer: No
  • Acoustic Room Correction
  • Audyssey MultEQ XT
  • Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
  • Audyssey LFC: No
  • Dirac Live Support: No
  • Variable Cross Over: Yes
  • Optimized Bass Redirection: Yes
  • Bass Sync: No
• Music File Support
  • Lossy Formats MP3 / WMA / AAC
  • Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
  • DSD Audio 2.8 MHz / 5.6MHz
  • Gapless Playback FLAC, WAV ,ALAC ,DSD
  • Compressed Audio Enhancer: MDAX2 Yes
  • Network Audio Sharing Yes
• Streaming Services
  • HEOS Multi-room and Streaming: Yes
  • AirPlay Audio Streaming: AirPlay 2
  • Internet Radio: TuneIn
  • Spotify*: Spotify Connect
  • Pandora: Yes
  • SiriusXM: Yes
  • Other Streaming Services*: Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
  • Roon tested: Yes
• Network Connectivity
  • Ethernet Ports: Yes
  • Wi-Fi (include version / band): Yes
  • Bluetooth (Include version): Yes
  • Bluetooth Re-transmit for Bluetooth headphones: Yes
• Smart Home Integration and Control
  • Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
  • App for Smart Phones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
  • HEOS Multi-Room Integrated: Yes
  • HEOS Link Compatibility: IR/ IP Yes / Yes
  • Multi-Room zones: 2
  • Zone Audio Source HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2Ch / Yes / Yes
  • Zone Audio Output Speaker / Preout: Yes / Yes
  • Zone HDMI Output from HDMI Source: No
  • Control Connectivity: IP Control / RS232 Control / Web Control / App Control
  • IR Flasher In: Yes
  • Marantz Remote Bus: Yes
  • DC Trigger Output: 1
  • HDMI Diagnostics: Yes
• Others
  • Front Display port hole: OLED
  • GUI Languages: 3
  • Setup Assistant: Yes
  • Smart Select on Remote: Yes
  • Firmware Update by Network / USB: Yes / Yes
  • ECO Mode: Yes
  • Auto Power off: Yes
  • Sleep Timer: Yes
• General
  • Available Colors: Black
  • Metal Front Panel: No
  • System Remote Control: RC049SR
  • Power Consumption in W: 650
  • Power Consumption No-Sound (ECO on/off) in W: 45 / 75
  • Standby Consumption in W: 0.2
  • CEC Standby Consumption in W: 0.5
  • Network Standby Consumption in W: Less than 2.0
• Weight & Dimensions
  • Antenna:Horizontal:(W x D x H) in inches: 17.4 x 13.9 x 6.5
  • Antenna:Vertical :(W x D x H) in inches: 17.4 x 13.9 x 9.3
  • W/o Antenna:(W x D x H) in inches: 17.4 x 13.5 x 6.5
  • Weight in kgs: 10.91

What's in the BOX

• 1* Main unit
• 1* Remote control w/ batteries
• 1* AM/FM antenna
• Wire labels
• 1* Quick start guide
• 1* Audyssey microphone
• 1* Card board microphone stand
• 2* External Detachable Antenna
• 1* AC cord
