JL Audio

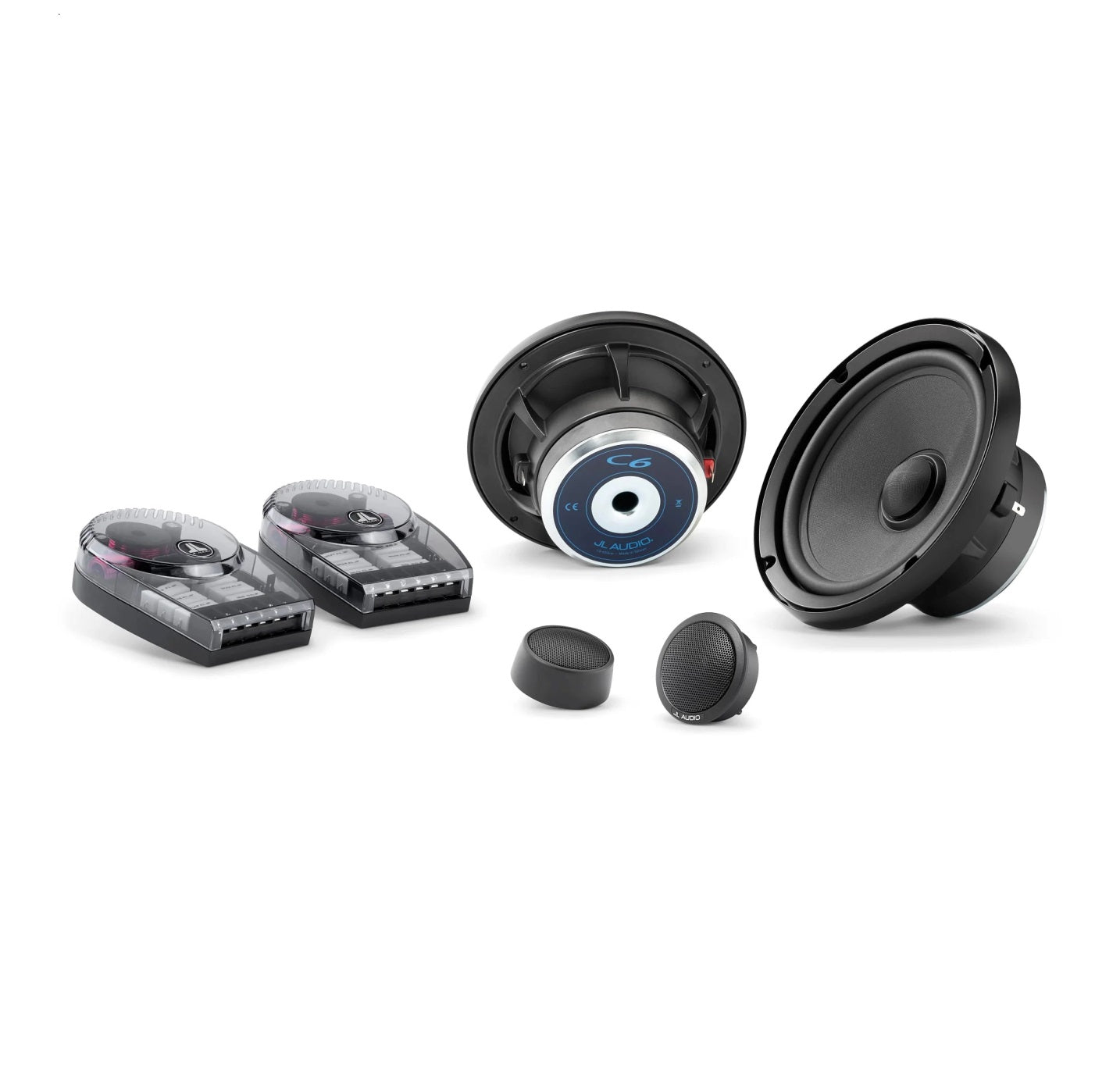

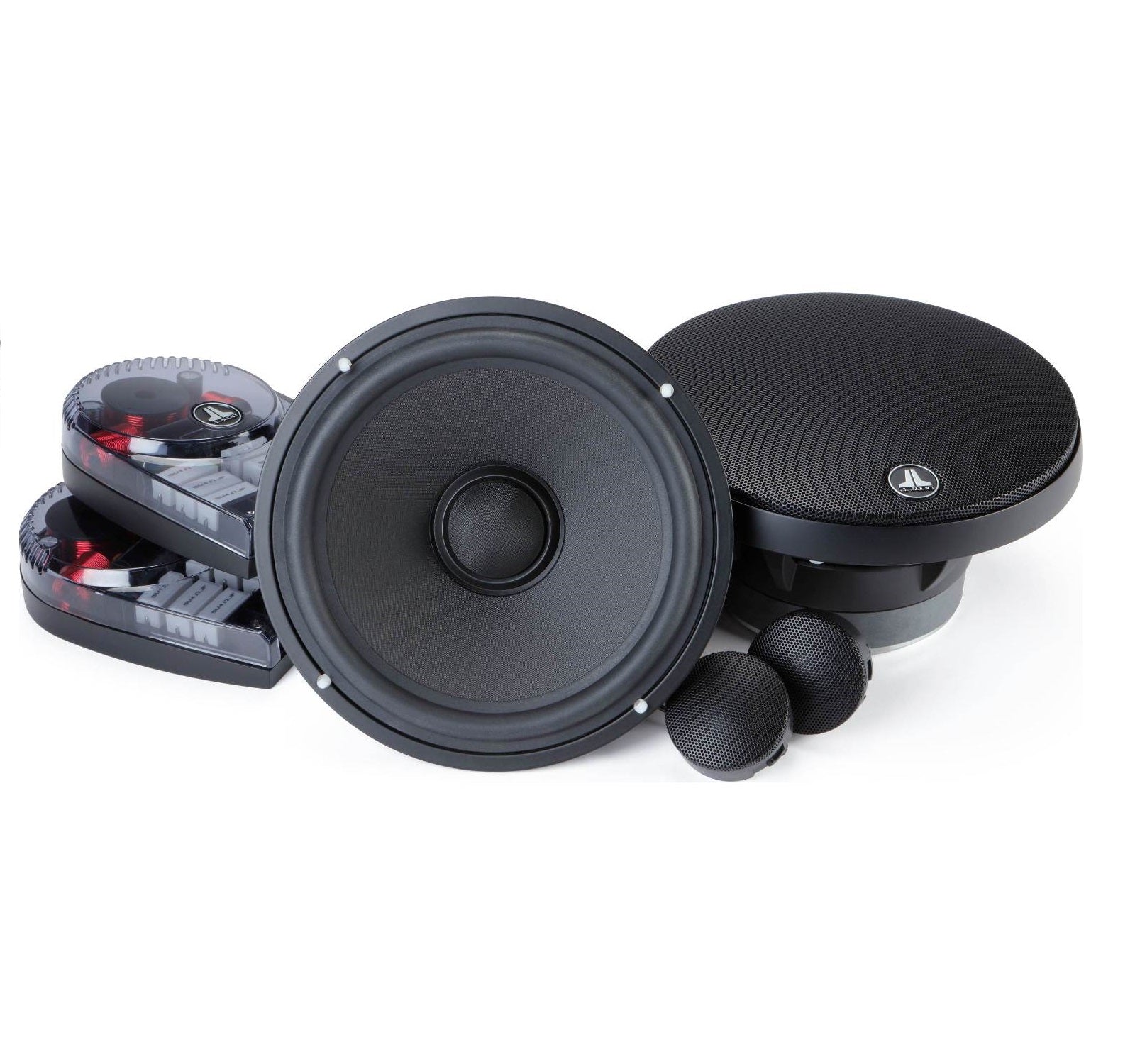

JL Audio C6-650 6.5" Component Speakers (100W RMS 300W Peak)

JL Audio C6-650 6.5" Component Speakers (100W RMS 300W Peak)

Regular price ₹ 76,999.00
Regular price ₹ 109,999.00 Sale price ₹ 76,999.00
Save 30% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.

IN STOCK

Estimated Delivery:

-


Type: Component Speakers
Size: 6.5 inches
Total RMS Wattage: 200
Impedance: 4 ohms
Warranty: 1 Year Brand Warranty

Two-way Component System: 6.5" (165 mm) Woofer, 1" (25 mm) Silk Dome Tweeter

Born from shared technologies used in our flagship C7 speakers, the C6-650 component system combines the smoothness and transparency of a premium silk dome tweeter with a top-flight component woofer to create a loudspeaker system with exceptional refinement and dynamic capability.

Benefiting from vast woofer design experience and advanced modeling systems of JL Audio, the 6.5" (165 mm) C6 component woofers feature purpose-engineered, cast alloy frames outfitted with our Elevated Frame Cooling technology. A DMA-optimized, forged and machined motor system generates outstanding midbass impact with ultra-low distortion.

The 1" (25 mm) C6 component tweeters feature edge-driven pure silk dome diaphragms for smooth high-frequency performance with remarkable off-axis response and damping. Neodymium motors and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Premium passive crossover networks are included with each C6-650 component system. Featuring four levels of tweeter adjustment, these outboard filter networks are equipped with premium polyester film and electrolytic capacitors as well as low-loss air-core inductors — all accessible beneath a protective, polycarbonate cover. Each C6 passive crossover also includes an advanced electronic tweeter protection circuit designed to minimize the possibility of tweeter failure.

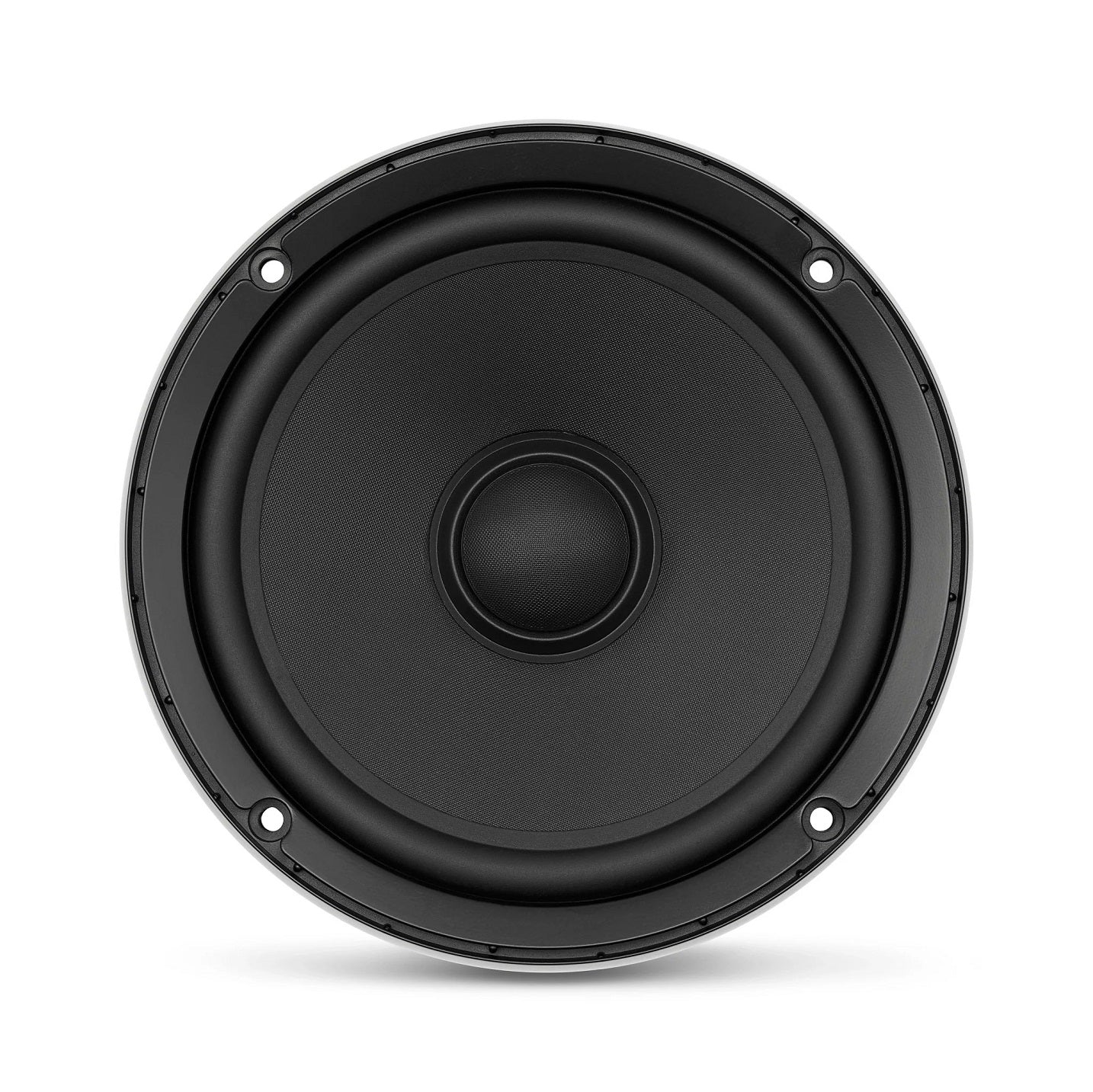

C6 Woofer Features:
• Forged and machined motor plates with DMA-optimized geometries to create linear motor force under power, leading to outstanding midbass impact, linearity and low distortion
• Large diameter, linear profile, flat spider for linear compliance and outstanding excursion capability
• Center cap designed to optimize
the high-frequency response of the woofer for seamless transition to a tweeter’s response
• Oversized voice coil for extended power handling capability, minimizing thermal compression and distortion at higher listening levels
• Cast
alloy frame with our Elevated Frame Cooling feature
• Includes fine mesh grilles

C6 Tweeter Features:
• Edge-driven pure silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
• Neodymium motor delivers high magnetic flux from a compact motor design
• Ferrofluid cooling and damping improves reliability and response smoothness
• Includes surface- and flush-mount fixtures

Woofer grilles are included, each consisting of a black grille tray and a fine steel mesh grille with an electroformed JL Audio badge logo.

Speakers are sold as a pair.

Highlights:

  • Dynamic Motor Analysis - DMA Optimized Motor
  • Elevated Frame Cooling
  • Silk Dome Tweeter

Specifications:

  • Continuous Power Handling (RMS): 100W
  • Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
  • System Efficiency: 87.37 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 53 Hz - 21 KHz ± 3 dB
  • Woofer
    • Frame Outer Diameter: 6.50 in / 165 mm
    • Grille Tray Outer Diameter: 6.76 in / 172 mm
    • Motor Outer Diameter: 3.54 in / 90 mm
    • Frontal Grille Protrusion: 1 in / 25 mm
    • Mounting Hole Diameter: 5.46 in / 139 mm
    • Mounting Depth: 2.60 in / 66 mm
  • Tweeter
    • Flush Mount Fixture Diameter: 2.13 in / 54 mm
    • Surface Mount Fixture Diameter: 2.11 in / 54 mm
    • Flush Mount Mounting Hole Diameter: 1.85 in / 47 mm
    • Flush Mount Mounting Depth: 1.85 in / 47 mm
    • Flush Mount Protrusion: 0.30 in / 8 mm
    • Surface Mount Protrusion: 1.04 in / 26 mm
  • Crossover
    • Width (W): 3.36 in / 85 mm
    • Height (H): 1.44 in / 37 mm
    • Depth (D): 4.72 in / 120 mm

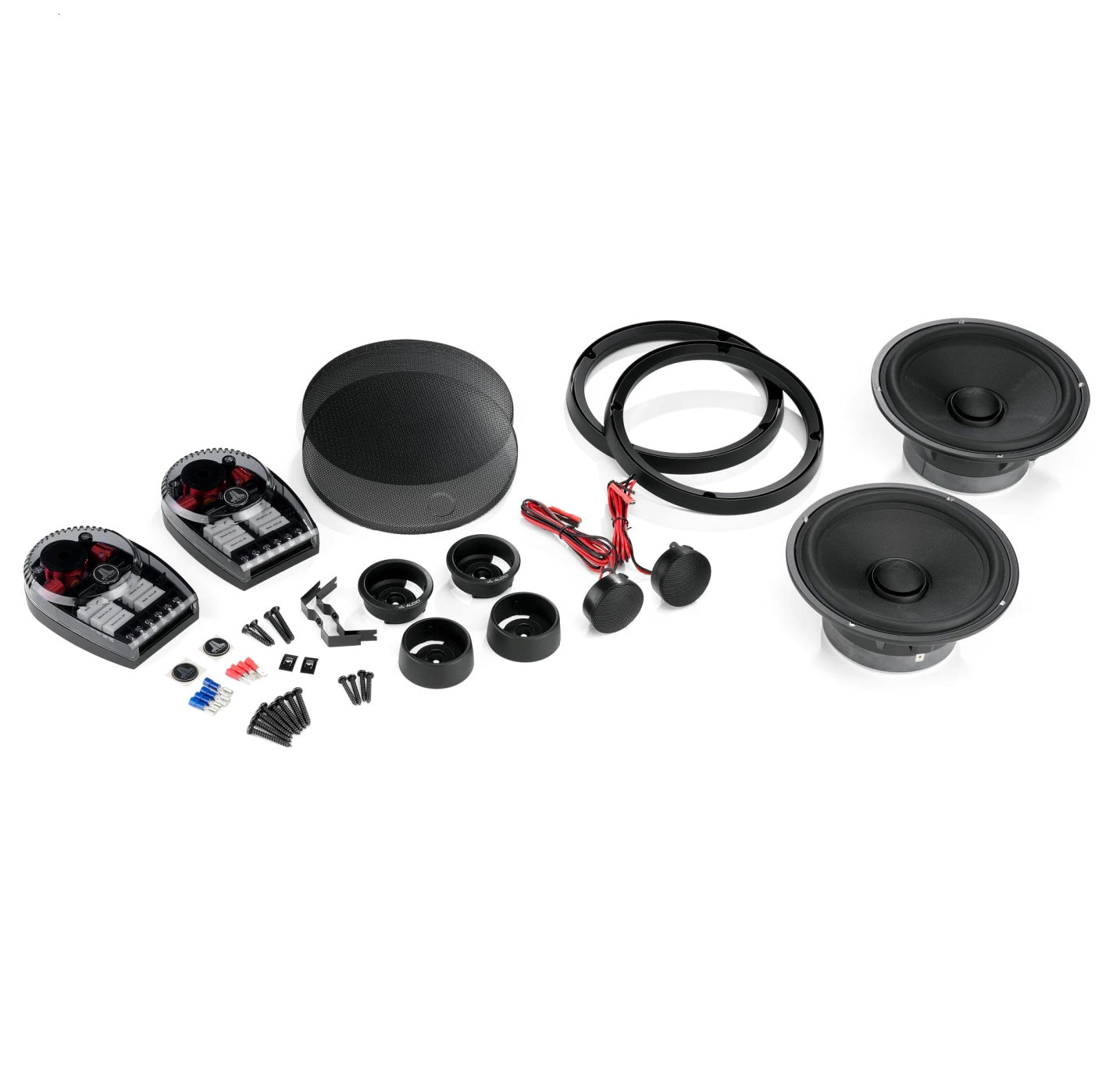

What's in the BOX

  • 2* C6-650cw Woofers
  • 2* C6-100ct Tweeters (36" wires attached)
  • 2* C6-650-XO Crossovers
  • 2* Grille frames
  • 2* Grilles
  • 2* Flush-mount tweeter housings
  • 2* Surface-mount tweeter housings
  • 2* Metal spring clips for flush-mount tweeter housings
  • 2* Speed clips
  • 2* M4x30mm Machine screws
  • 2* 1" Flat-head screws
  • 4* 1" Pan-head screws
  • 8* 1-1/4" Pan-head screws
  • 2* Self-adhesive JL Audio badges
  • 2* Crimp-on 0.187" male quick slides
  • 2* Crimp-on 0.110" male quick slides
  • 2* Crimp-on 0.187" female quick slides
  • 2* Crimp-on 0.25" female quick slides
  • 1* Owner's Manual &
  • 1* Warranty Card
