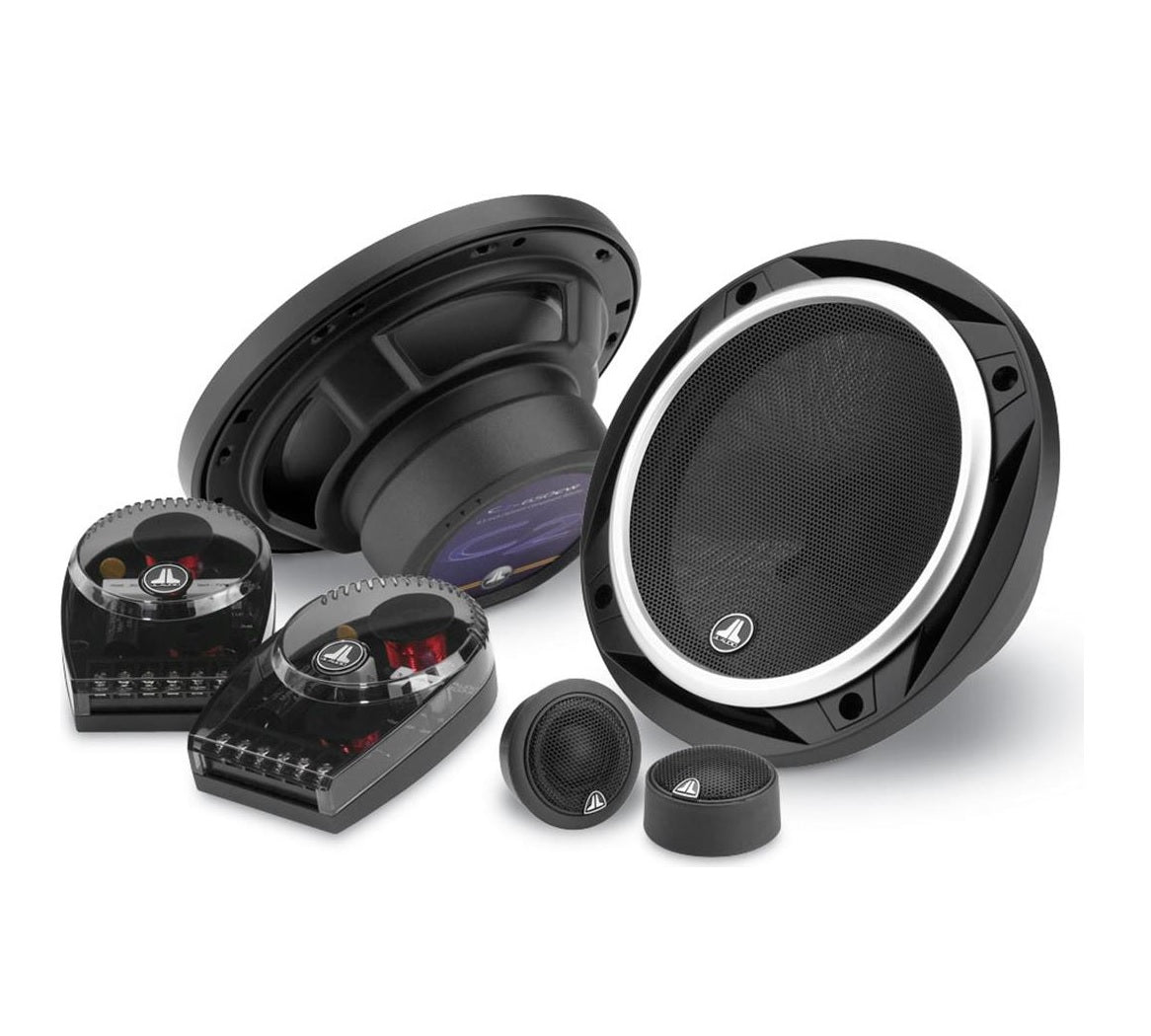

JL Audio C2-650 6.5" Component Speakers (60W RMS)

2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

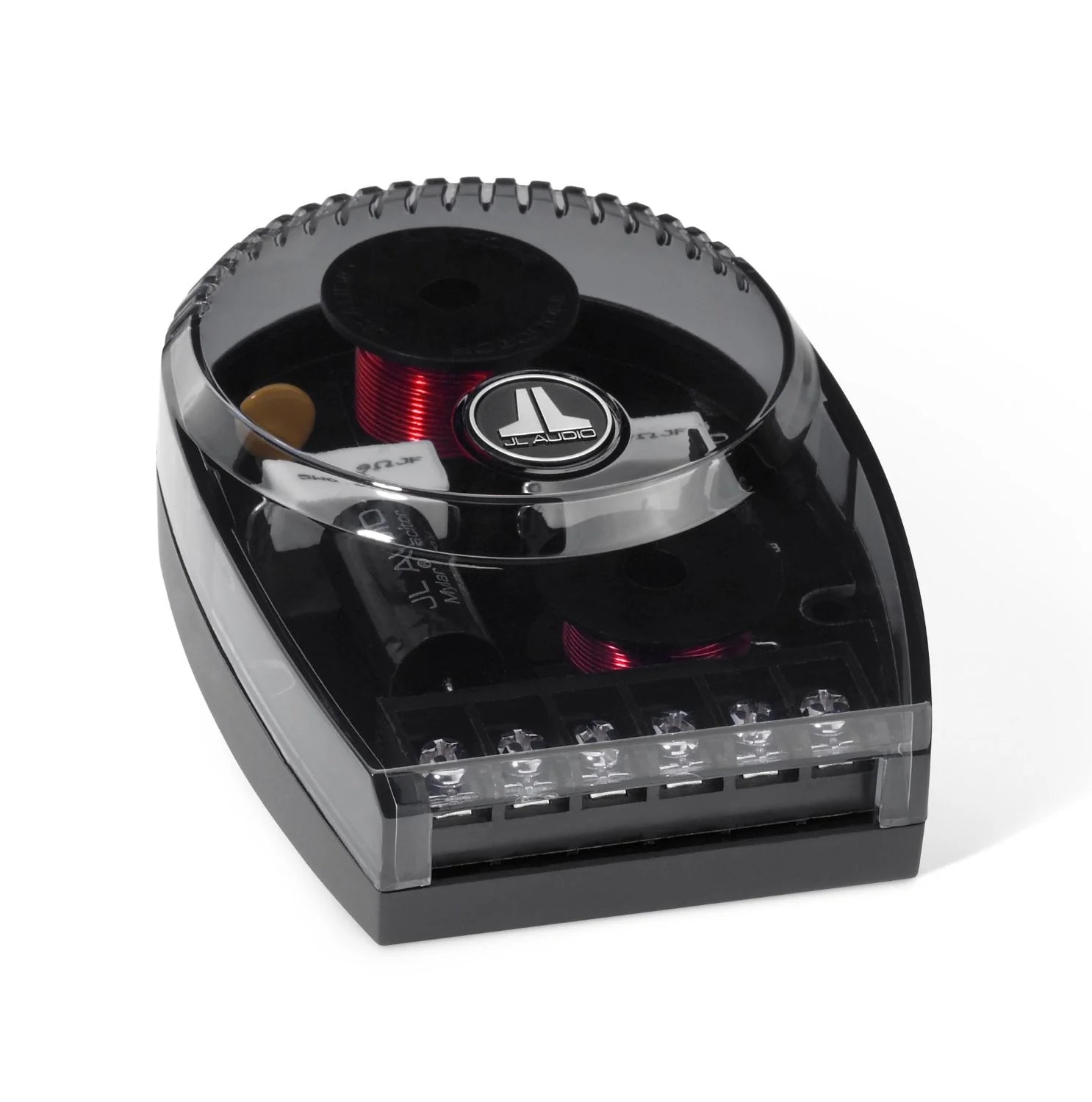

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

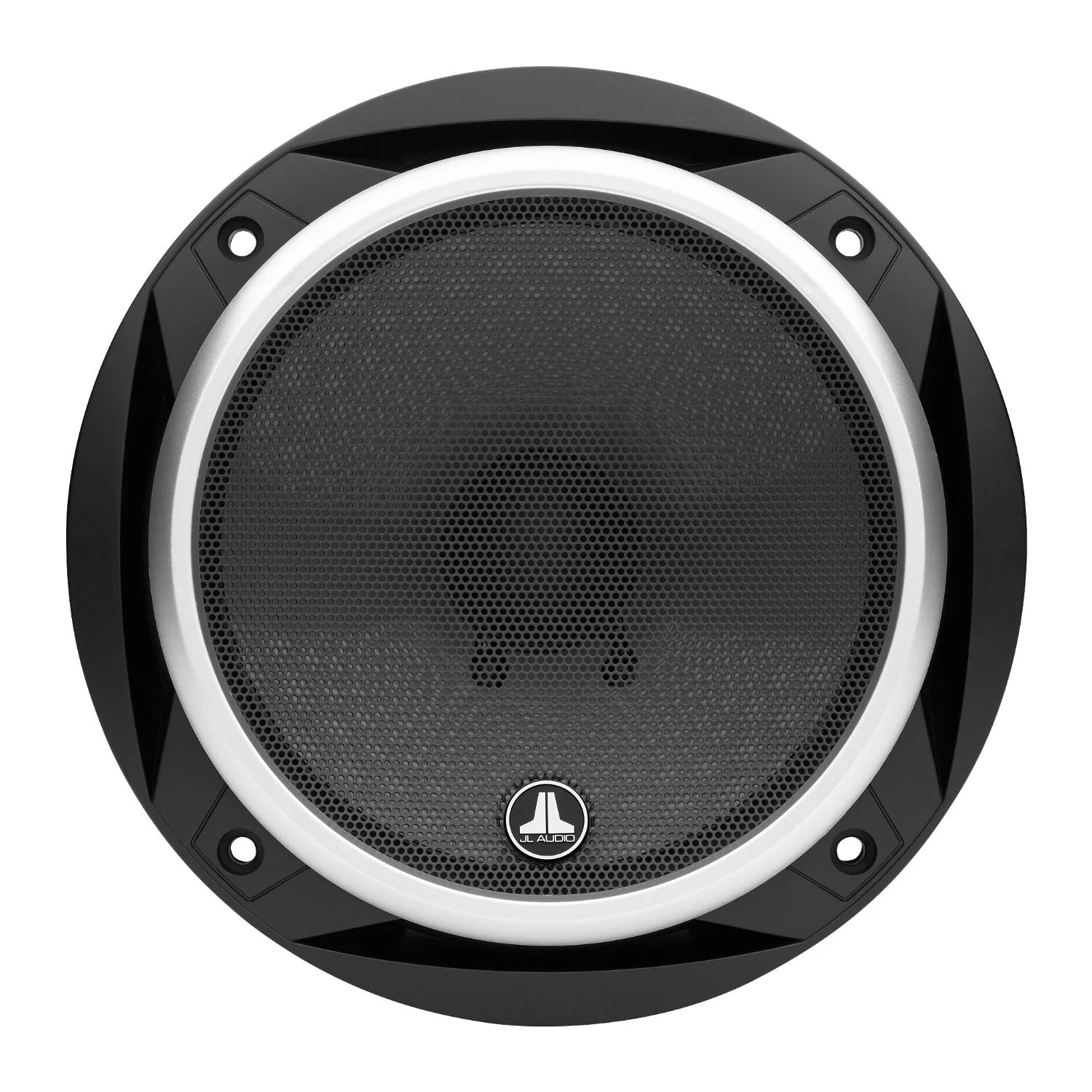

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Specifications:

• Continuous Power Handling (RMS): 60 W
• Recommended Amplifier Power (RMS): 15 - 100 W / Ch.
• Efficiency: 91.0 dB @ 1 W / 1 m
• Nominal Impedance: 4 Ω
• Frequency Response: 59 Hz - 22 KHz ± 3 dB
• Woofer
• Frame Outer Diameter: 6.5 in / 165 mm
• Grille Tray Outer Diameter: 6.84 in / 174 mm
• Motor Outer Diameter: 3.15 in / 80 mm
• Frontal Grille Protrusion: 0.85 in / 22 mm
• Mounting Hole Diameter: 5.56 in / 141 mm
• Mounting Depth: 2.44 in / 62 mm
• Tweeter
• Flush Mount Fixture Diameter: 1.87 in / 48 mm
• Surface Mount Fixture Diameter: 1.69 in / 43 mm
• Flush Mount Mounting Hole Diameter: 1.625 in / 41 mm
• Flush Mount Mounting Depth: 0.76 in / 19 mm
• Flush Mount Tweeter Frontal Protrusion: 0.29 in / 7 mm
• Surface Mount Tweeter Frontal Protrusion: 0.92 in / 2*3 mm
• Crossover
• Width (W): 3.36 in / 85 mm
• Height (H): 1.44 in / 37 mm
• Depth (D): 4.72* in / 12*0 mm

What's in the BOX

• 2* C2-650cw Woofers
• 2* C2-075ct Tweeters (with 6" wires attached)
• 2* C2-650-XO Crossovers
• 2* Woofer Grilles
• 2* Self-adhesive JL Audio badges
• 2* Flush mount tweeter housings
• 2* Surface mount tweeter housings
• 2* Metal spring clips for tweeter fixtures
• 2* M4x30mm Pan-head machine screws
• 2* Crimp-on 0.187" Male quick slides
• 2* Crimp-on 0.110" Male quick slides
• 2* Crimp-on 0.205" Female quick slides
• 2* Crimp-on 0.110" Female quick slides
• 4* 7/8" Flat head self-tapping screws
• 12* 1-1/8" Pan head self-tapping screws
• 8* Speed clips
• 12* Crimp-on spade connectors
• 1* Owner's Manual
• 1* Woofer cutout template
• 1* Warranty Card
