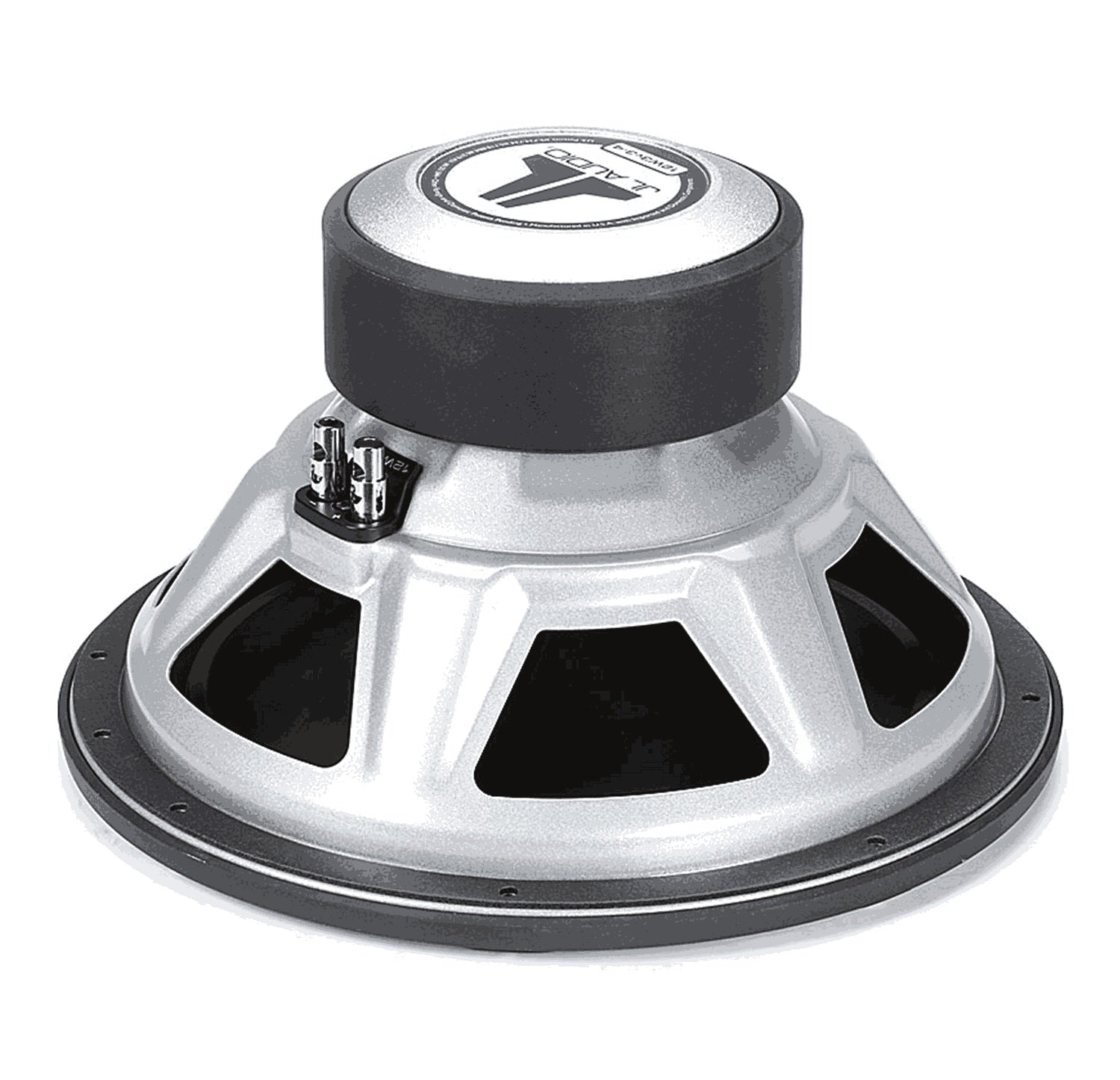

JL Audio 12W3V3 12" SVC Subfwoofer (500W RMS @ 2Ω/4Ω)

JL Audio designed their W3v3 subwoofers to deliver powerful, accurate bass with a medium-power amplifier. Their extensive motor assembly research resulted in a design that ensures smooth, precise cone movement at any power level. Exclusive cooling features shunt heat away from the sub's internal motor structure for long term durability and reduced distortion. The W3v3 sub works well in a sealed or ported enclosure.

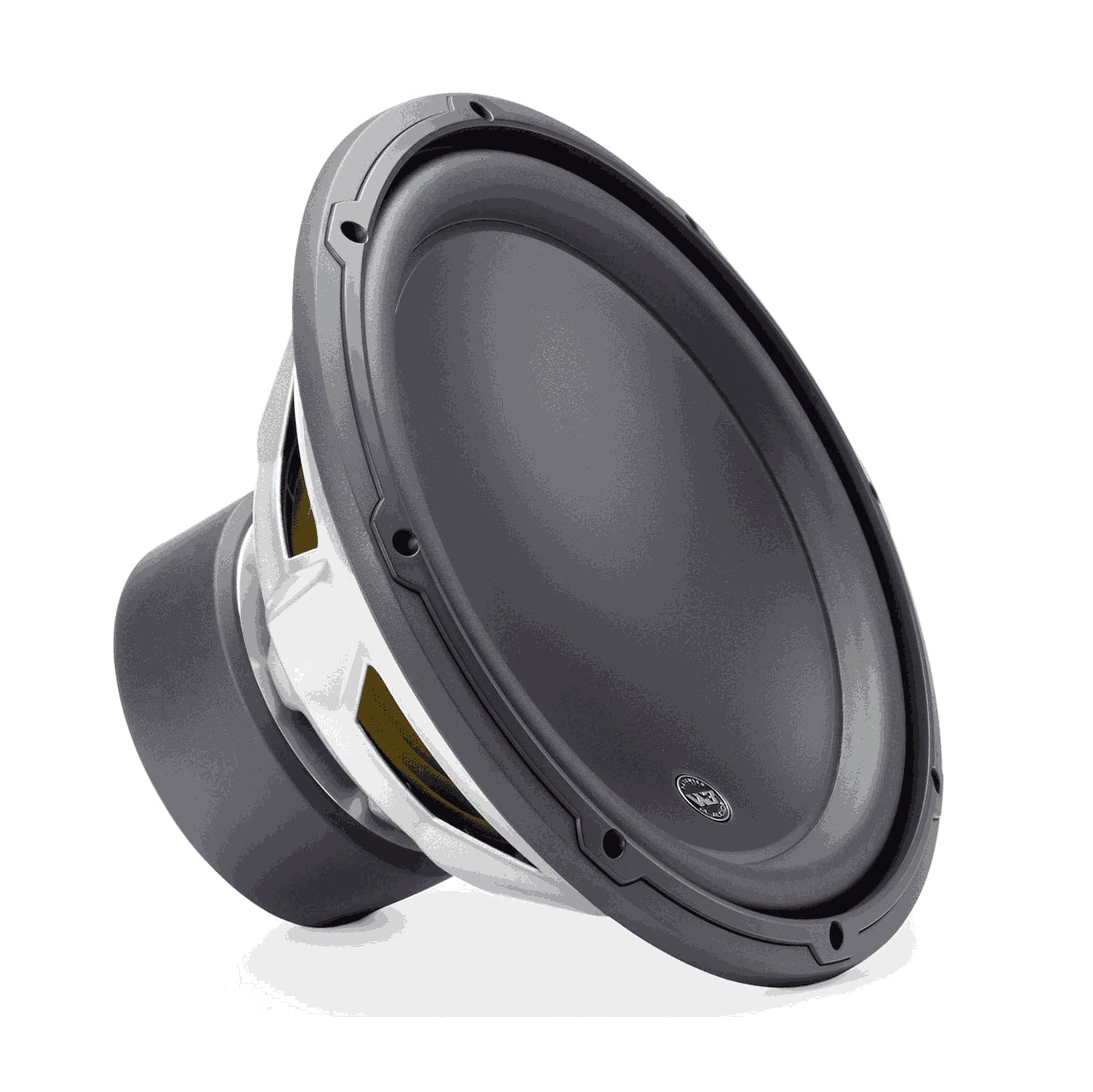

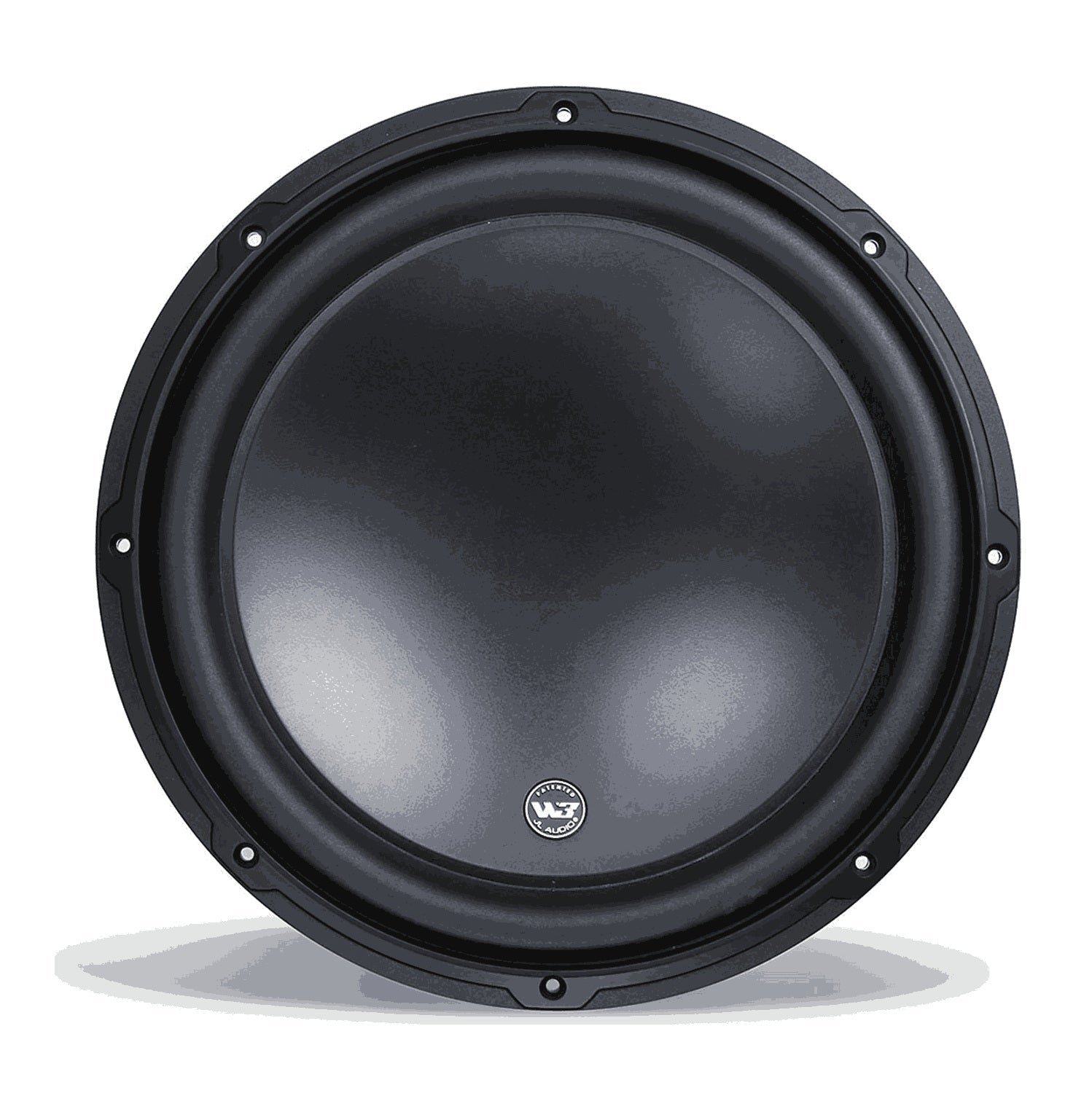

The 12W3v3-4 subwoofer boasts a 12" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement, for increased reliability and consistent bass output. The removable, customizable trim ring accepts optional JL Audio grilles, and can be painted to enhance your installation.

ENGINEERED FOR PERFORMANCE
      Offering impressive output, accuracy and sound quality at moderate power levels, the W3v3 series subwoofers provide an immersive audio experience that can fit comfortably in space-saving sealed or ported enclosures.

DYNAMIC MOTOR ANALYSIS (DMA) OPTIMIZED SPEAKERS
      DMA delivers linear motor force over a wide range of speaker excursion and power levels. The result is tight, clean and articulate bass performance with ultralow distortion and stellar sound quality.

POLYPROPYLENE CONE TECHNOLOGY
      An injection-molded, mineral-filled polypropylene cone structure with rubber surround offers crisp, strong bass output matched with the rigidity and durability to withstand extended play at high volume levels. A distinctive metallic JL Audio medallion adds a finishing accent.

CUSTOM ACCENTS
      A removable and customizable mounting flange trim ring is included. Optional steel-mesh grille inserts (sold separately) add style and protection for your subwoofer — and the removable trim ring receives these inserts directly to make grille installation a snap.

POWERFULLY ADAPTABLE
      The W3v3 subwoofer line offers superb sound quality and power handling for a wide range of vehicles and amplifiers. The most compact 6.5-inch model has a continuous power-handling capability of 150 watts RMS, while the largest 13.5-inch driver offers up to 600 watts RMS of continuous power-handling capability.

ELEVATED FRAME COOLING
       The patented JL Audio elevated frame cooling design creates a pathway for high-velocity air to flow directly across the top plate of the speaker voice coil — cooling it for better power handling and improved reliability.

ENGINEERED LEAD-WIRE SYSTEM
      Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

FCAM™ TECHNOLOGY
      This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

VENTED REINFORCEMENT COLLAR
      The JL Audio VRC™ collar design improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.

Specifications:

• Size: 12"
• Weight: 6.58 Kgs
• Continuous power handling (RMS): 500W RMS
• Sensitivity (SPL @ 1 W/1 m): 87.15 dB
• Nominal impedance: 2/4 ohms
• Recommended amplifier power (RMS): 150-500W
• Cone material: Mineral-filled polypropylene
• Speaker connections: Push-button terminal
• Mounting Dimensions
  • Frame outer diameter: 12.5"
  • Mounting depth clearance: 6.65"
  • Mounting hole: 11.0625"
  • Bolt hole circle: 11.7"
  • Motor outer diameter: 5.5"
  • Driver displacement: 0.071 cu ft (2.01 L)

What's in the BOX

• 1* W3v3 subwoofer
• 1* Trim ring (installed) &
• 1* Warranty Card
