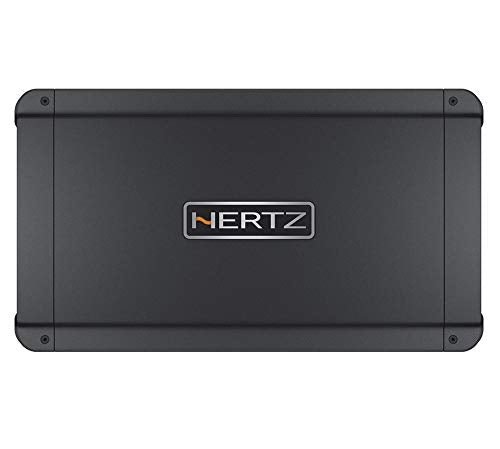

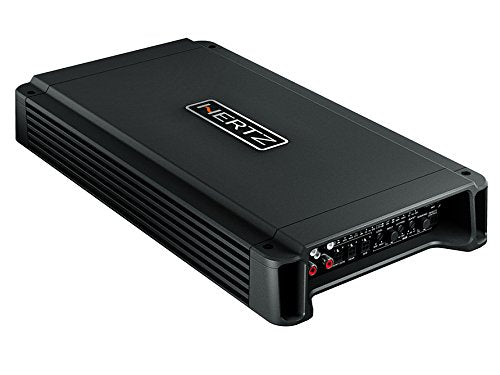

Hertz HCP5D 5 Channel Class D Amplifier (RMS: 55W*4 + 160W*1 (4Ω) 90W*4 + 280W*1 (2 Ω))

HCP 5D is a front + rear + sub complete car audio amplifier with five very powerful  D class channels. It features a wide range of inputs to obtain the best configuration with every car audio source. HCP 5 D is suitable in a five channels system with subwoofer, in a three channel front + sub system using the front and rear built-in filters that include also a bass boost circuit and a subsonic filter. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system.

The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.

Specifications:

• Channels: 5 - 3

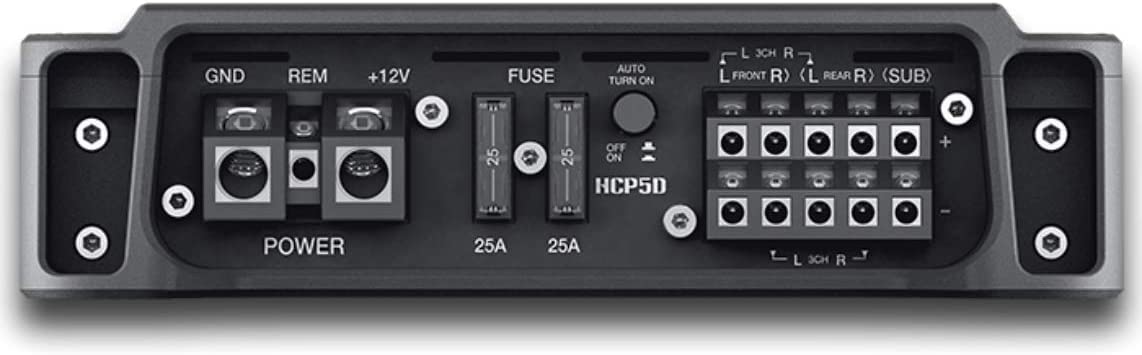

• Power supply voltage / fuse:     11 ÷ 15 VDC / 2 x 25 A
• Idling current (power ON/OFF):     2 A / 0.04 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 30 A
• Remote In: 7 ÷ 15 VDC - 1 mA
• ART: Automatic Remote Turn-On/Off with Speaker-In
• Distorsion - THD (100 Hz @ 4 Ω): 0.02 %
• Bandwidth FRONT/REAR: 10 ÷ 50k Hz
• Bandwidth SUB: 10 ÷ 500 Hz
• S/N Ratio (A weighted @ 1 V): 100 dB
• Damping factor (100 Hz @ 4 Ω) FRONT/REAR: 100
• Damping factor (100 Hz @ 4 Ω) SUB: 250
• Pre-In sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In sensitivity: 0.8 ÷ 20 VRMS
• Load impedance (MIN)
  • @ 5 Ch: 2 Ω
  • @ 3 Ch: 4 Ω + 4 Ω + 2 Ω
• Max size (mm / in.): 345 x 190 x 50 / 13.58 x 7.48 x 1.97
• Weight (kg / lb.): 2.61 / 5.75
• Adjustable Crossovers: Yes

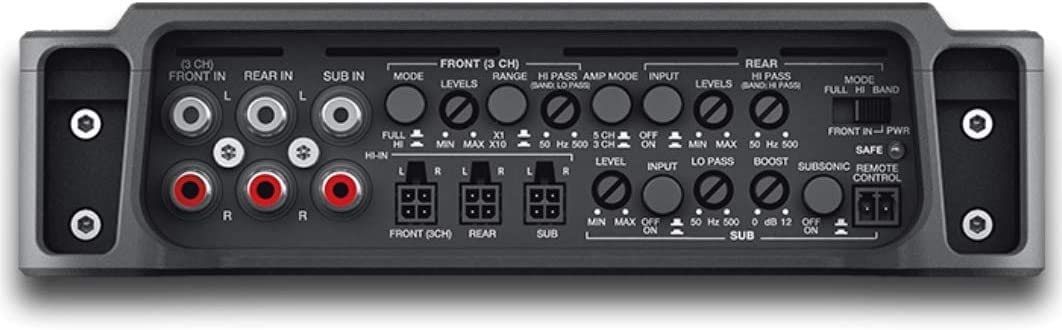

• INPUTS: PRE IN / SPEAKER IN
• FRONT Ch. filters FULL: Yes
• Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
• REAR Ch. filters FULL: Yes
• Hi-Pass: 50 ÷ 5k Hz @ 12 dB/Oct.
• Band-Pass: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct. 50 ÷ 5 kHz (lo) @ 12 dB/Oct.
• SUB Ch. filter LO-PASS: 50 ÷ 500 Hz @ 24 dB/Oct.
• SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.
• BOOST 50 Hz (adjust): (0 ÷12) dB
• Remote Volume Control: -50 ÷ 6) dB
• Output Power (RMS) @ 14.4 VDC, THD 1%:
  • 5 Ch:     55 W x 4 + 160 W x 1 (4 Ω)
    5 Ch:     90 W x 4 + 280 W x 1 (2 Ω)
    3 Ch:     180 W x 2 (4 Ω) + 160 W x 1 (4 Ω)
    3 Ch:     180 W x 2 (4 Ω) + 280 W x 1 (2 Ω)
• Output Power (RMS) @ 14.4 VDC, THD 10%:
  • 5 Ch:     65 W x 4 + 200 W x 1 (4 Ω)
    5 Ch:     105 W x 4 + 330 W x 1 (2 Ω)
    3 Ch:     210 W x 2 (4 Ω) + 200 W x 1 (4 Ω)
    3 Ch:     210 W x 2 (4 Ω) + 330 W x 1 (2 Ω)
• CEA 2006-A Ratings: RMS Power (4 Ω, ≤ 1 % THD + N, 14.4 V): 50 W x 4 Ch + 150 W + 1 Ch
• S/N Ratio (ref. 1 W output): (50 W Ch) 83 dBA (150 W Ch) 85 dBA
• Total Power: 1500 W

What's in the BOX

• 1* 5 Channel Amplifier
• 4* Screws &
• 1* Warranty Card
