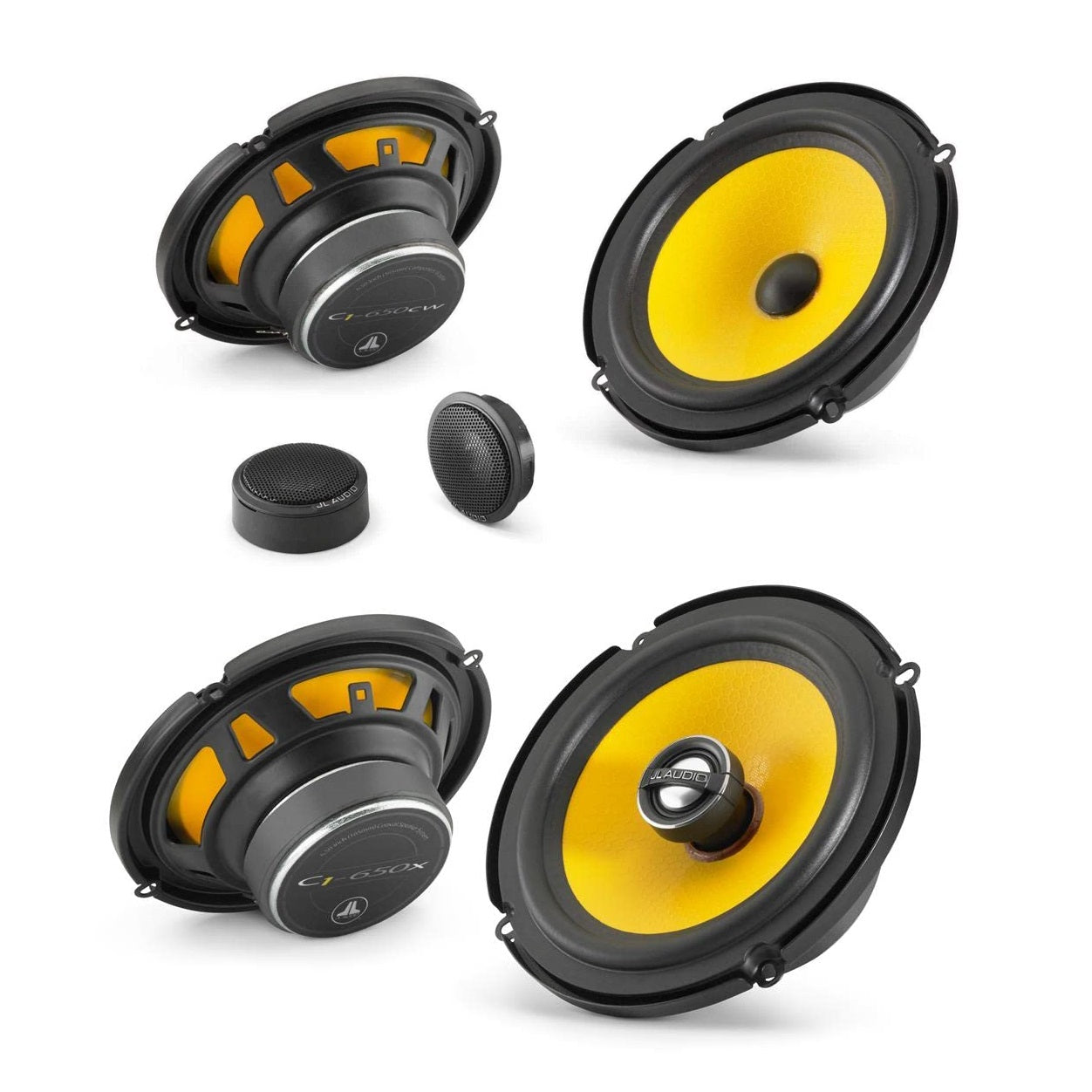

Combo of JL Audio C1-650 & C1-650X 6.5" Component & Coaxial Speakers (50W RMS)

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

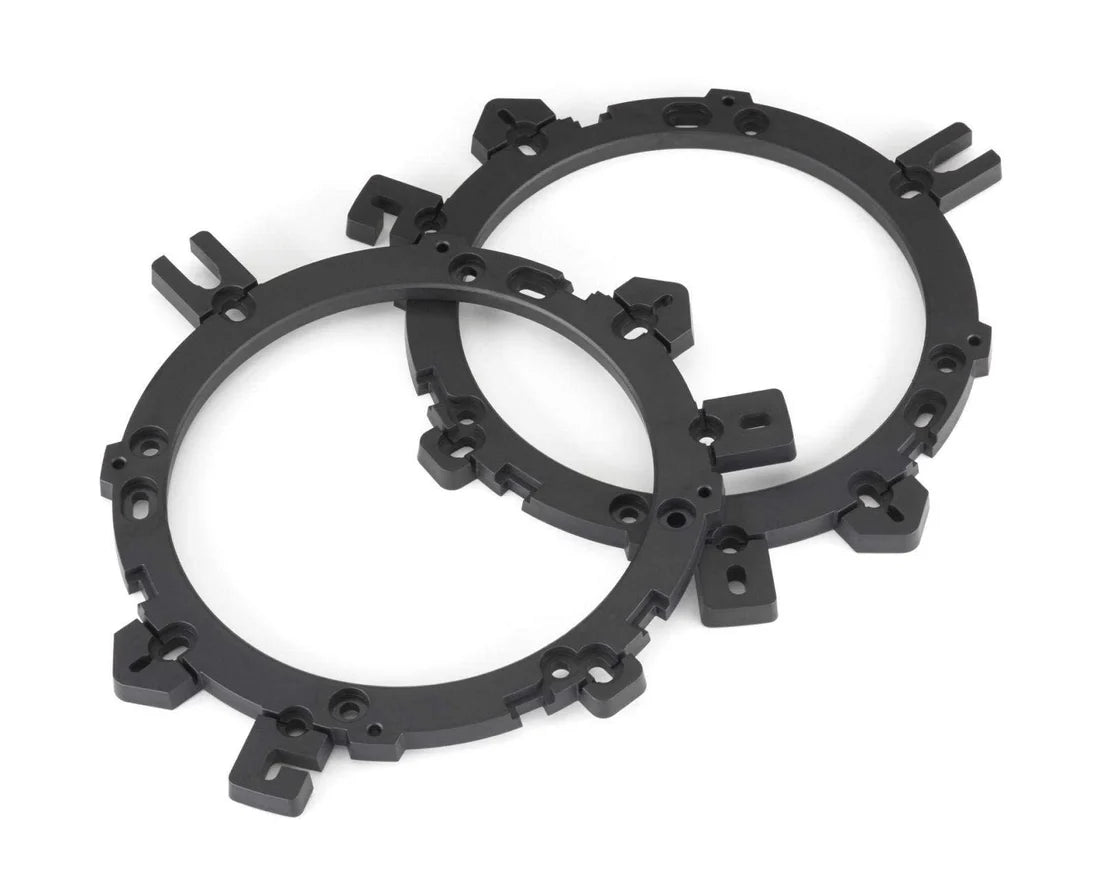

To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

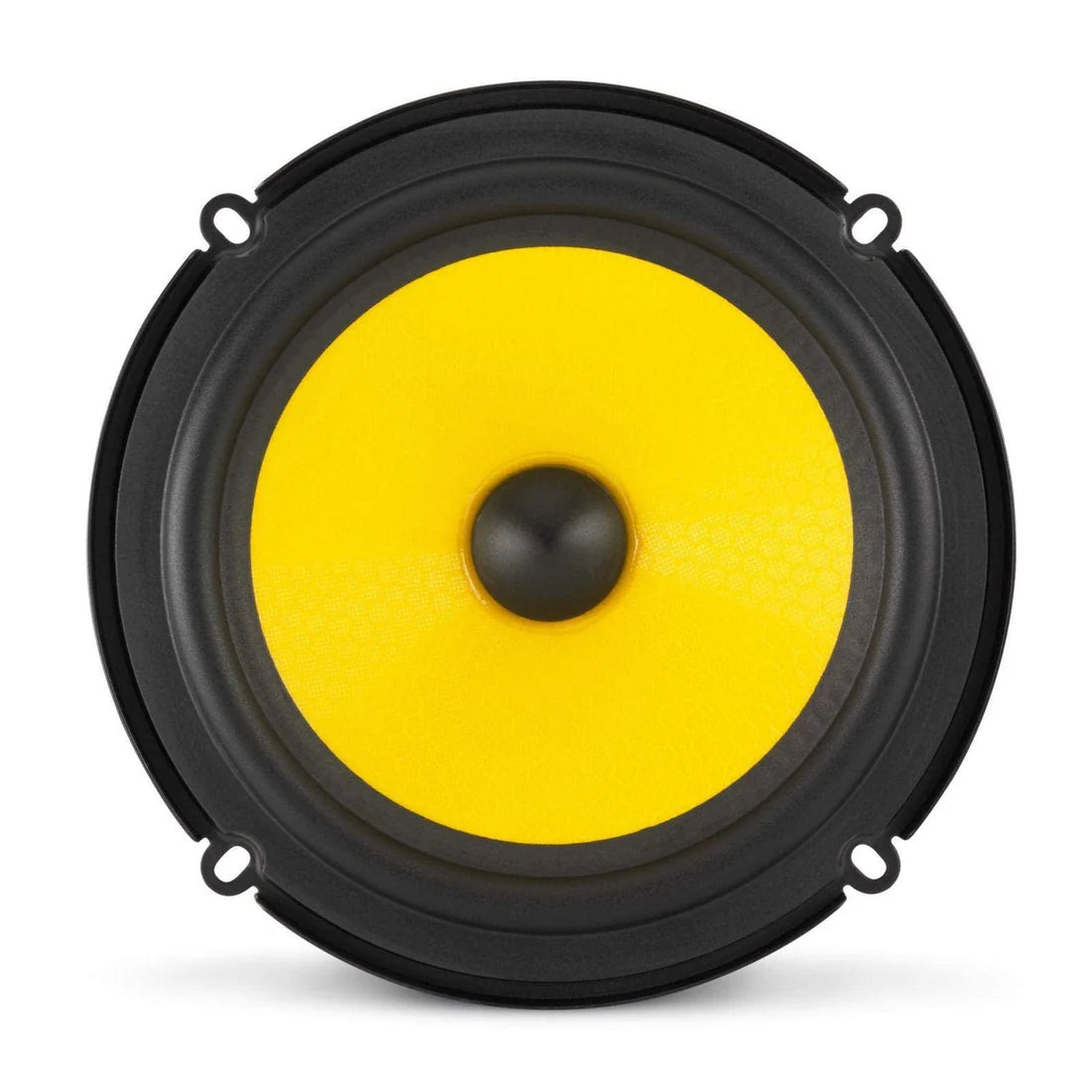

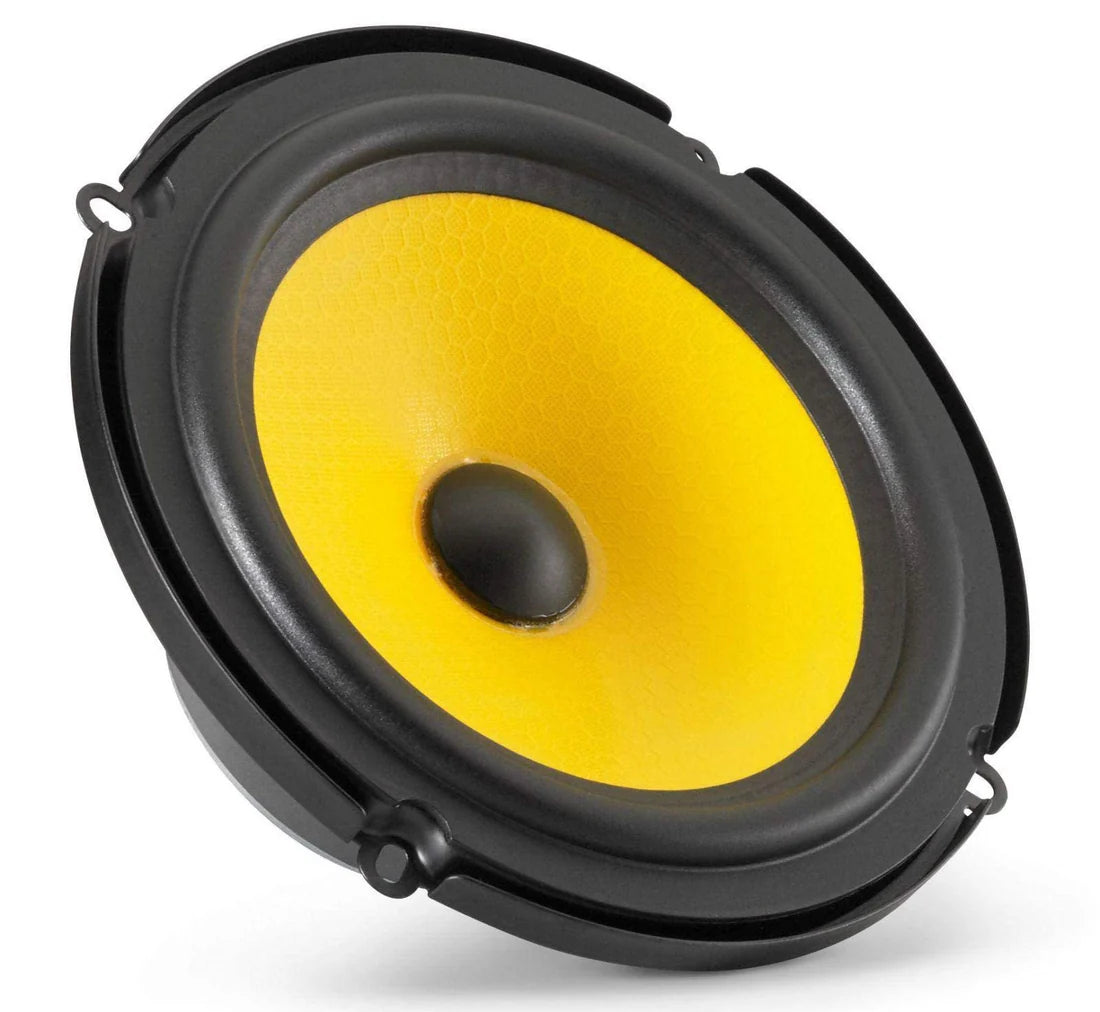

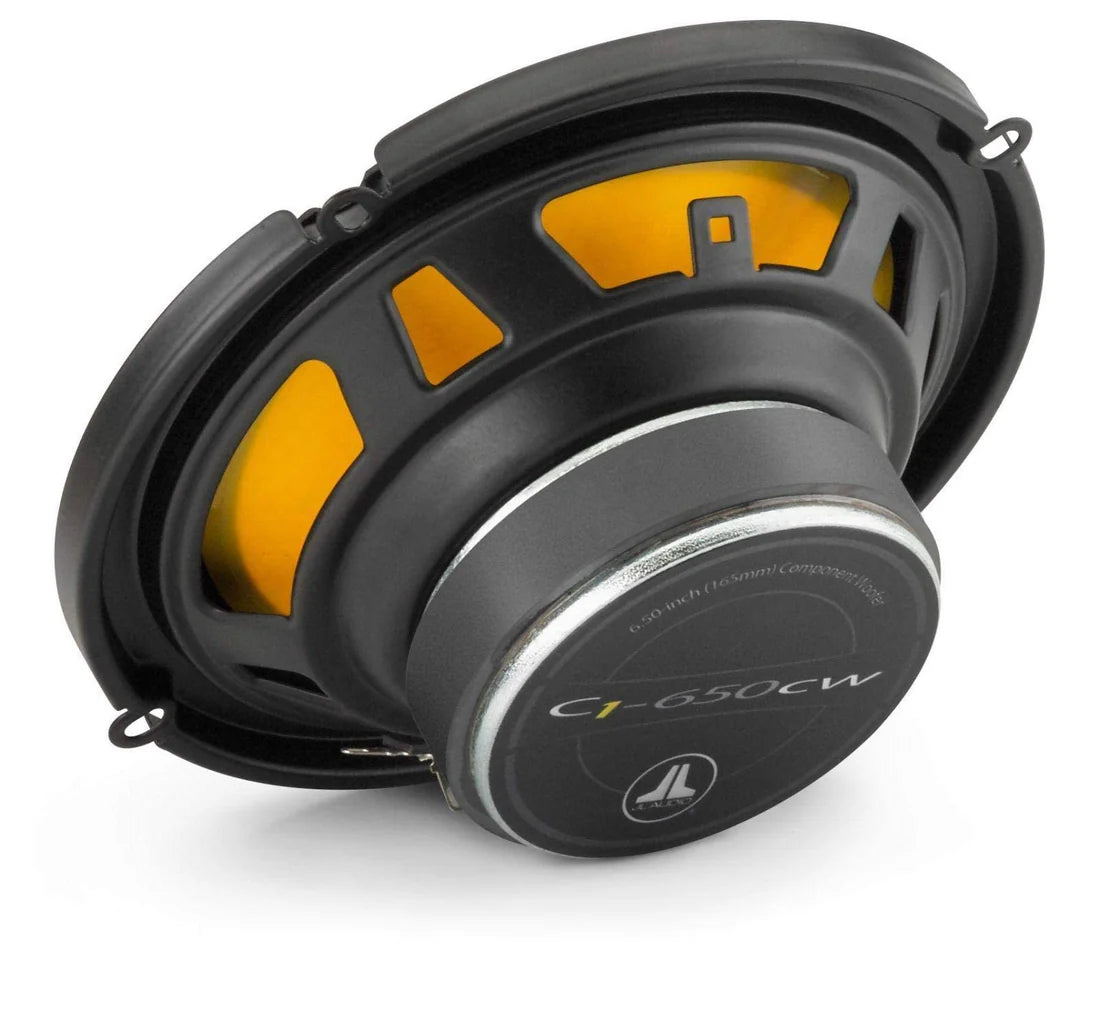

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.

When it comes to value, C1 is the real deal!

Specifications:

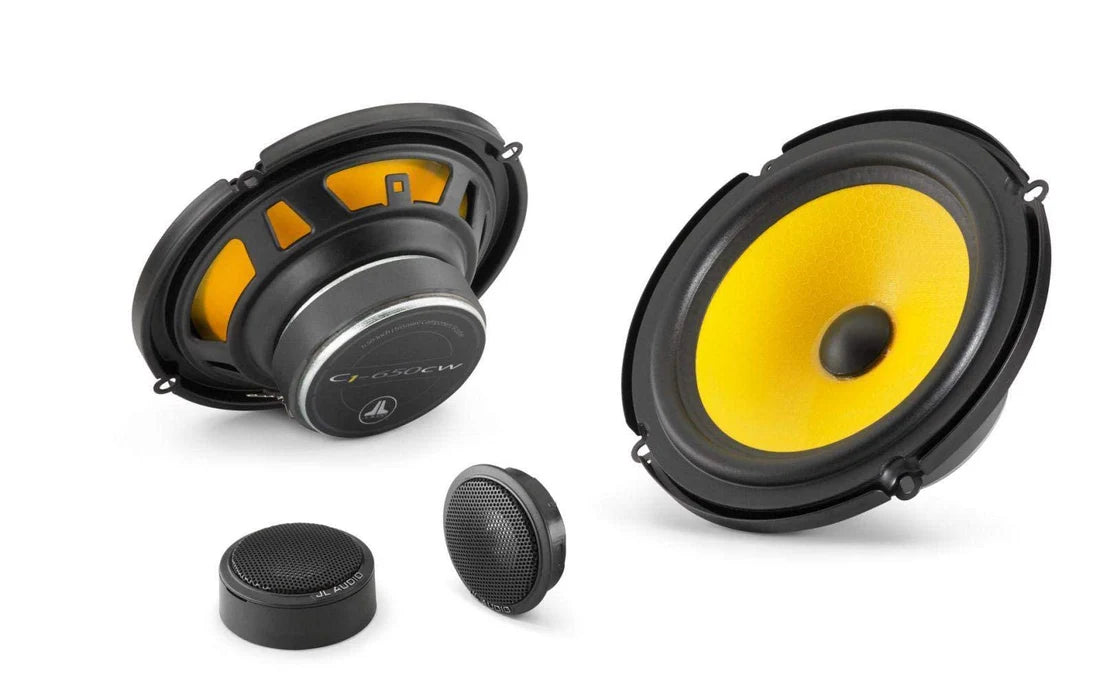

C1-650

• Continuous Power Handling (RMS): 50 W
• Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
• Efficiency: 91.0 dB @ 1 W / 1 m
• Nominal Impedance: 4 Ω
• Frequency Response: 48 Hz - 24 KHz ± 3 dB
• Speaker
• Frame Outer Diameter: 6.25 in / 159 mm
• Grille Tray Outer Diameter: 6.84 in / 174 mm
• Motor Outer Diameter: 3.15 in / 80 mm
• Mounting Hole Diameter: 5.02 in / 128 mm
• Mounting Depth: 2.07 in / 53 mm
• Tweeter
• Flush Mount Fixture Diameter: 1.87 in / 48 mm
• Surface Mount Fixture Diameter: 1.69 in / 43 mm
• Flush Mount Mounting Hole Diameter: 1.625 in / 41 mm
• Flush Mount Mounting Depth: 0.76 in / 19 mm
• Flush Mount Tweeter Frontal Protrusion: 0.29 in / 7 mm
• Surface Mount Tweeter Frontal Protrusion: 0.92 in / 23 mm
• Crossover
• Width (W): 1.96 in / 50 mm
• Height (H): 0.90 in / 23 mm
• Depth (D): 1.34 in / 34 mm

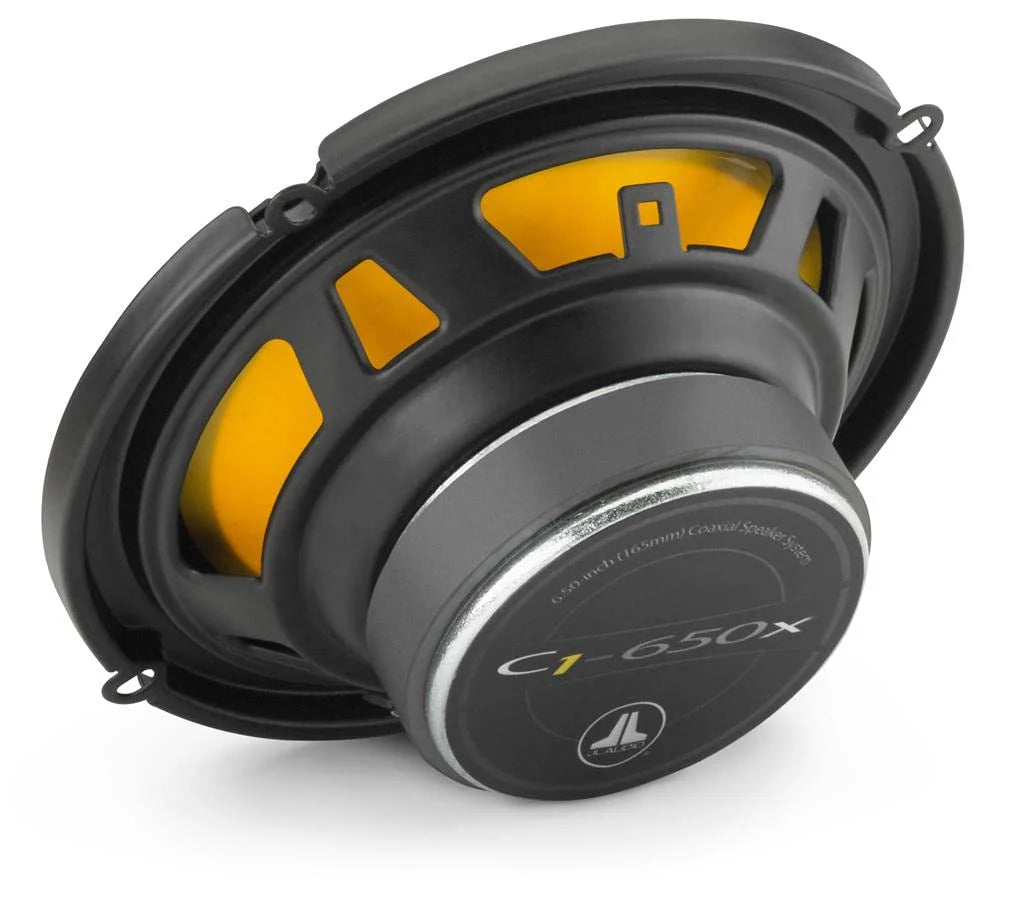

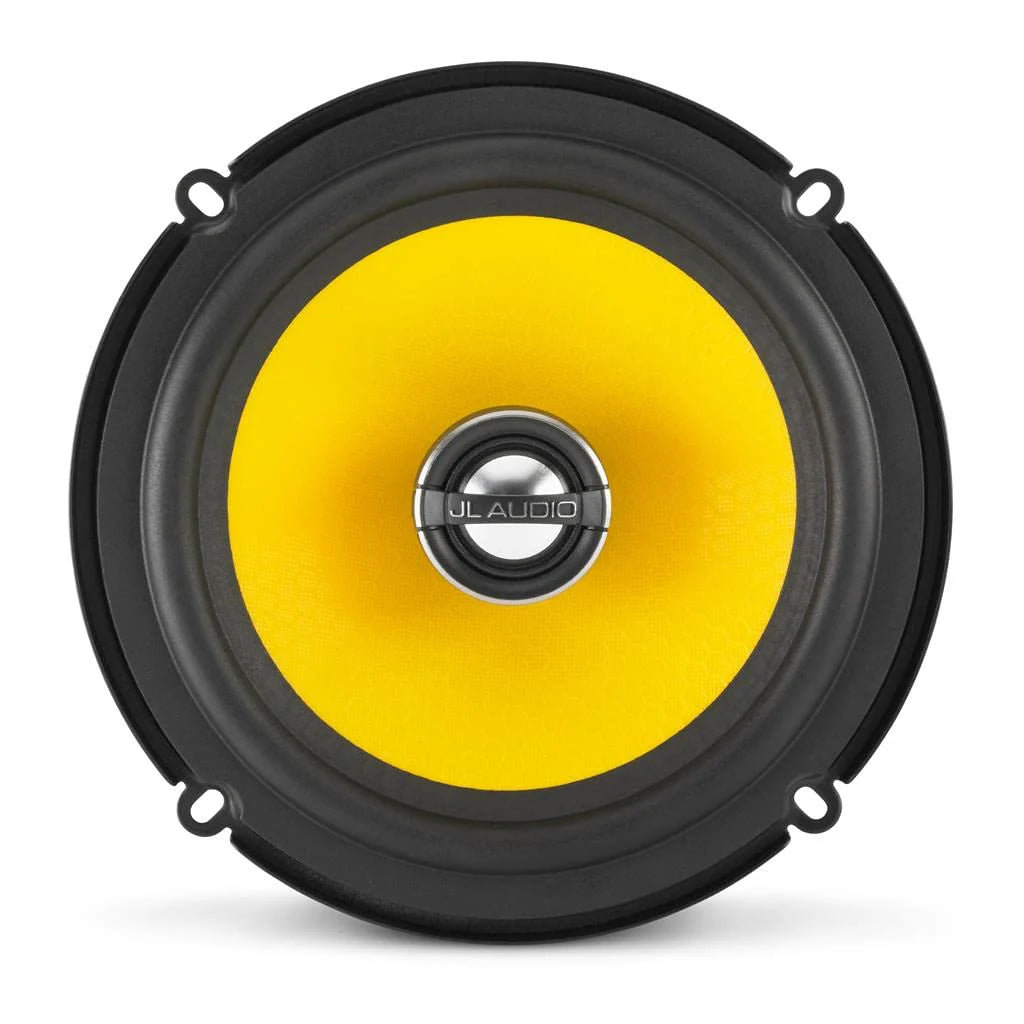

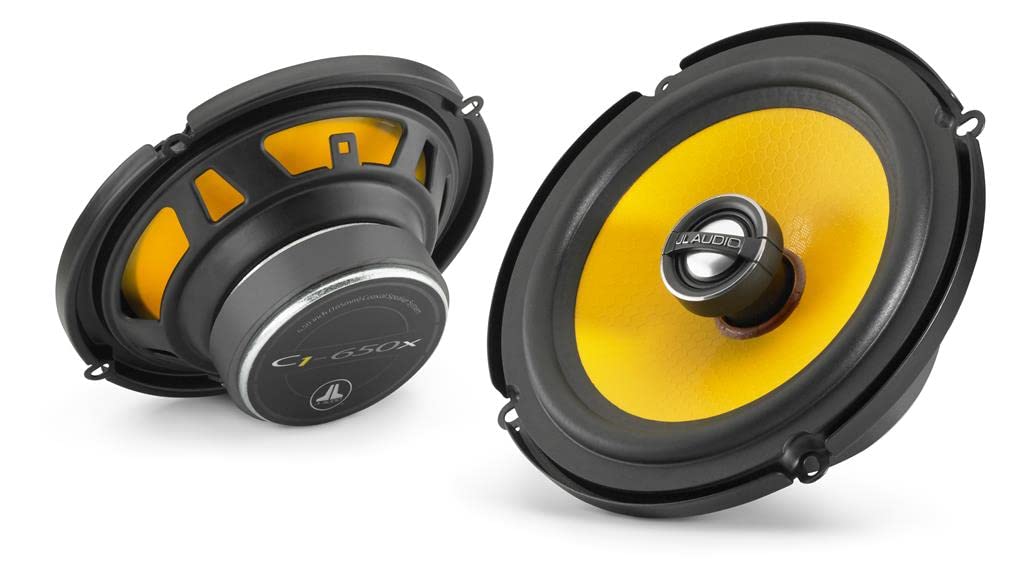

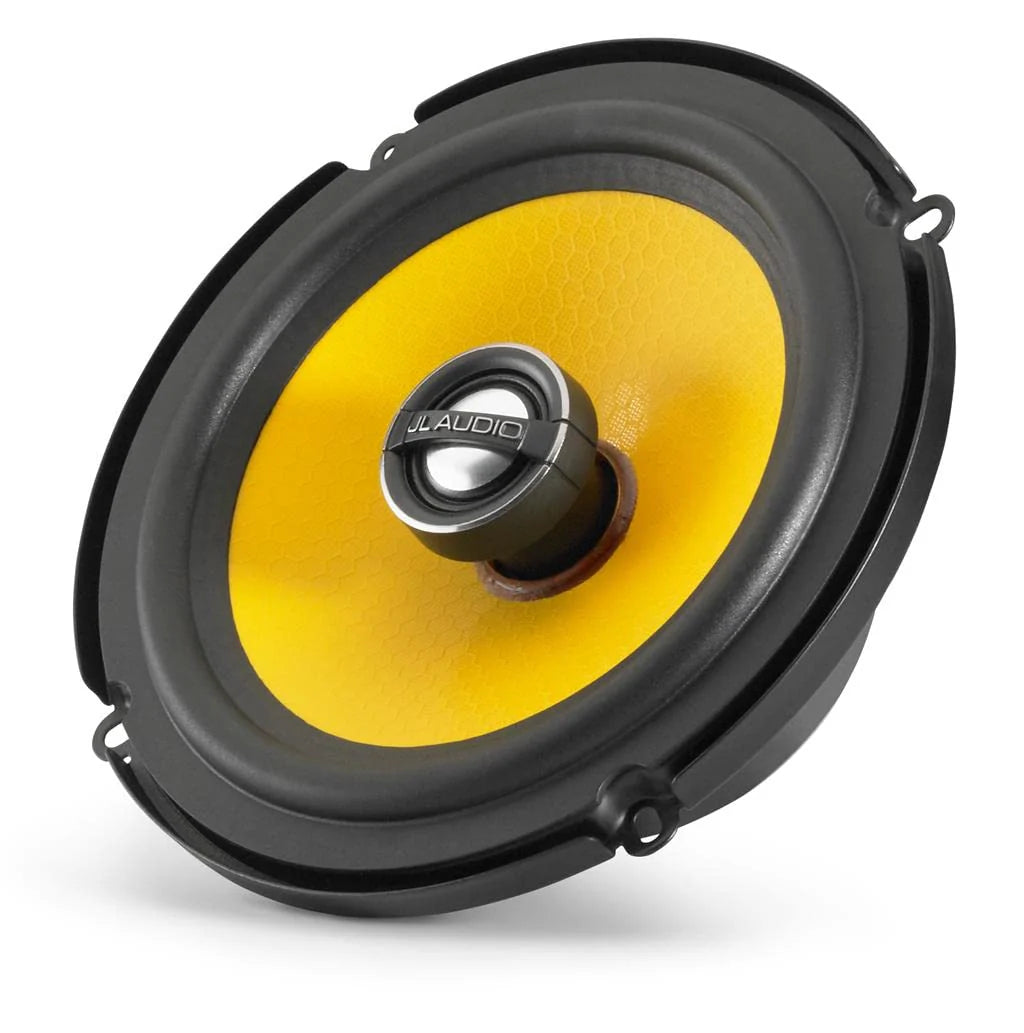

C1-650X

• Continuous Power Handling (RMS): 50 W
• Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
• Efficiency: 90.5 dB @ 1 W / 1 m
• Nominal Impedance: 4 Ω
• Frequency Response: 48 Hz - 24 KHz ± 3 dB
• Frame Outer Diameter: 6.25 in / 159 mm
• Motor Outer Diameter: 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion: 0.72 in / 18 mm
• Mounting Hole Diameter: 5.02 in / 128 mm
• Mounting Depth: 2.07 in / 53 mm

What's in the BOX

C1-650

• 2* Speakers

• 2* Tweeters (with 6" wires attached)
• 2* Multi-application woofer mounting rings
• 2* Tweeter crossovers
• 2* Flush mount tweeter housings (tweeters installed)
• 2* Surface mount tweeter housings
• 2* Metal spring clips for tweeter fixtures
• 2* Crimp-on 0.187" Female quick slides
• 2* Crimp-on 0.110" Female quick slides
• 4* 5/8" Flat head screws
• 8* 3/4" Pan head screws
• 8* 1/4" Pan head screws
• 8* Speed clips
• 2* 25mm Stud bolts
• 2* 10mm Stud bolts
• 2* M5 Nuts
• 1* Owner's manual

• 1* Woofer cutout
• 1* Warranty Card

C1-650X

• 2* Speakers
• 2* Multi-application adapter brackets
• 8* 3/4" Screws (#8)
• 8* 1/4" Thread forming screws (#8)
• 8* Speed clips
• 2* 0.187" Crimpable female quick slides
• 2* 0.110" Crimpable female quick slides
• 1* Owner's manual
• 1* Warranty Card
