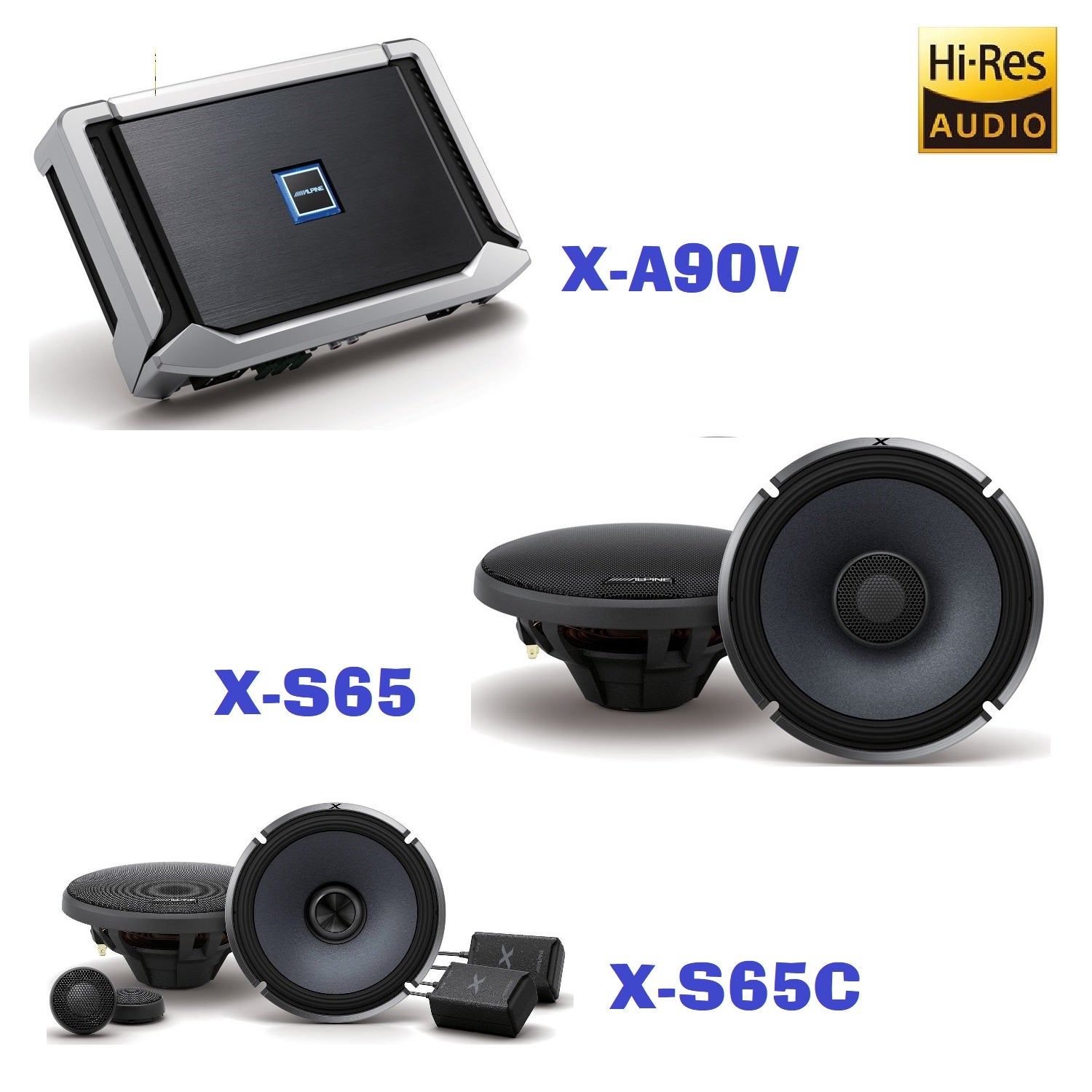

Combo of Alpine X-A90V 5 Channel Amplifier + X-S65C 6.5 Component Speakers + X-S65 6.5" Coaxial Speakers

Alpine introduces the all-new X-Series of high-grade speakers and amplifiers. These products have been engineered and tuned to create a perfect match for extraordinarily dynamic, realistic sound reproduction and a spatial sound impression.

The all-new X-Series amplifiers set a new standard for sound quality performance and power output in a very compact design.

X-A90V 5 Channel Amplifier

Features:

• Install
• Terminal Layout: One side
• Screw Mount / Wire Cover: Plug Type Connector (PWR and SPK Terminal)
• Mounting Design: Easy Stacking and Smart Installation
• General
• Amplifier Type: Class-D (Digital)
• Channel Design: 4-channel + 1-channel (Mono)
• Thermal Control: Thermal Management Control
• Power Supply: PWM regulated Interleaved flyback with active clamp
• Board Circuitry: S.T.A.R. Circuitry
• Power Indicator: Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
• Built-in Bass EQ
• Subsonic Filter: Variable Subsonic Filter
• Gain Control: Adjustable
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

Specifications:

• Max Power Output Ratings
• Total Max Power: 1800W
• RMS Power Ratings
• Per Channel into 4ohms, 14.4V (≤1%THD+N): 75W RMS x 4 + 300W RMS x 1
• Per Channel into 2ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1
• Bridged into 4ohms, 14.4V (≤1%THD+N): 200W RMS x 2
• Sound Tuning
• Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct) for Mono
• Crossover Frequency (LPF): 50-400 Hz (-24dB/oct) Mono
• Crossover Frequency (HPF): 50-400 Hz (-12dB/oct) Full-Range
• Equalizer (Bass EQ): 0-12dB
• General
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (Speaker Level Input): 0.5 - 10V (CH1/2, CH3/4), 0.4 - 10V (Subwoofer)
• Input Sensitivity (RCA Input) : 0.2 - 4V (CH1/2, CH3/4), 0.1 - 4V (Subwoofer)
• High Level Input with automatic power on
• Cable size: Power Cable 4AWG (20mm2), SPK Cable 8AWG (8mm2)
• Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10 - 60kHz
• Frequency Response (+0, -3dB: 1W into 4 ohms) for Subwoofer: 8 - 400 Hz
• THD+N (10W into 4 ohms): <0.02%
• THD+N (600W into 4 ohms): <0.07%
• Damping Factor for CH-1/2/3/4: >500
• Damping Factor for Subwoofer: >1000
• Signal to Noise (Rated Power into 4 ohms): >105dB (CH1-4)
• Signal to Noise (Rated Power into 4 ohms): >104dB (Mono)
• Dimensions & Weight

• Weight: 3.3 kg
• Heat Sink (WxHxD) mm: 297 x 51 x 192

What's in the BOX:

• 1* 5 Channel Amplifier
• 3* 30-amp ATO fuses (installed)
• 1* Terminal Cover Left
• 1* Terminal Cover Right
• 1* Terminal Cover Front
• 1* Battery connector plug
• 3* Speaker connector plugs
• 4* Self-tapping screws (Length 3/4")
• 1* 2mm Allen wrench
• 1* 4mm Allen wrench
• 1* Owner's Manual
• 1* Warranty Card

X-S65C 6.5" Component Speakers

Features:

• Tweeter
• 1′′ (2.5cm) Hard Dome Carbon Graphite Tweeter
• Neodymium Magnet
• Surface Mount Application
• Woofer
• Nano-Fibre Cone
• Radial Ring Magnet Design
• HAMR Surround
• Large 35mm Voice Coil
• Ultra High Density Neodymium Magnet
• Shallow Mounting Design
• Network (X-S65C and X-S69C only)
• Compact design for easy installation
• In-line Network Design
• Tweeter level Adjustment: 3 Steps (-3, 0, +3dB)
• Phase adjustment (normal / reverse)
• High Grade Network Components

Specifications:

• Power Handling
• Peak Power: 360 Watts
• RMS Power: 120 Watts
• Dimensions
• Woofer Mounting Diameter: 137 mm
• Woofer Mounting Depth: 59 mm
• General
• Frequency Response: 55 Hz - 50 kHz
• Impedance: 4 Ohms
• Recommended Amplification : 120 W RMS, per Channel
• Sensitivity : 89dB / W (1m)

What's in the BOX:

• 2* 2-way speakers
• 2* Speaker grilles
• 2* Grille badges
• 2* Tweeters (each has a 26" length of wire attached)
• 2* Tweeter grilles (installed)
• 2* Surface mount housings (with tweeters installed)
• 2* Tweeter crossovers (each has attached 32" input and 14" output wires)
• 2* Rectangular adhesive backed pads (crossover)
• 2* Circular adhesive backed discs (tweeter)
• 8* 1-1/8" Screws
• 8* 5/8" Screws
• 8* Speed-clips
• 4* Speed nuts
• 4* 5" Zip ties
• 1* Warranty Card

X-S65 6.5" Coaxial Speakers

Features:

• Tweeter
• 1′′ (2.5cm) Hard Dome Carbon Graphite Tweeter
• Neodymium Magnet
• Surface Mount Application
• Woofer
• Nano-Fibre Cone
• Radial Ring Magnet Design
• HAMR Surround
• Large 35mm Voice Coil
• Ultra High Density Neodymium Magnet
• Shallow Mounting Design
• Network (X-S65C and X-S69C only)
• Compact design for easy installation
• In-line Network Design
• Tweeter level Adjustment: 3 Steps (-3, 0, +3dB)
• Phase adjustment (normal / reverse)
• High Grade Network Components

Specifications:

• Power Handling
• Peak Power: 330 Watts
• RMS Power: 110 Watts
• Dimensions
• Woofer Mounting Diameter: 137 mm
• Woofer Mounting Depth: 59 mm
• General
• Frequency Response: 55 Hz - 50 kHz
• Impedance: 4 Ohms
• Recommended Amplification : 120 W RMS, per Channel
• Sensitivity : 89dB / W (1m)

What's in the BOX:

• 2* 2-way speakers
• 2* Speaker grilles
• 2* Grille mounting rings
• 2* Grille badges
• 8* 1-1/8" Screws
• 8* Speed clips
• 1* Warranty Card
