Blaupunkt BC DH3.1 AHD & SD Universal Front/Rear Bumper Camera w/ Moving Guidelines

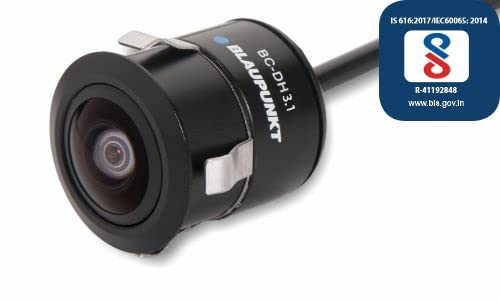

Bureau of Indian Standards (BIS) certified 170° Universal Front / Reverse Bumper Camera with AHD & SD Picture Quality.

BC DH3.1 AHD (rear bumper camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside. Compatible with AHD and SD installs.

A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH3.1 AHD incorporates a highly efficient color sensor and modern electronics, reducing power consumption.

Specifications:

• Power Supply: DC12V±3V
• Current Consumption: 70mA
• Optical Format: 1/3”
• Video System: AHD / SD
• Image Sensor: CMOS
• Effective Pixels: 1280 x 720
• Lens Angle: 170° (D), 110° (H), 100° (V)
• White Balance: Auto

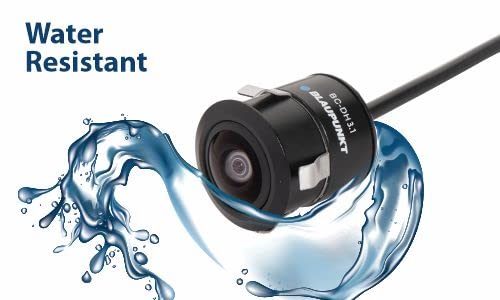

• Water Resistant
• Illumination Min.: 0.01 Lux
• Operating Temperature: -20°C~+70°C
• Humidity: up to 95%
• Signal System: Default-AHD (PAL), CVBS (NTSC)
• Video Signal: 1.0Vp-p at 75 ohm

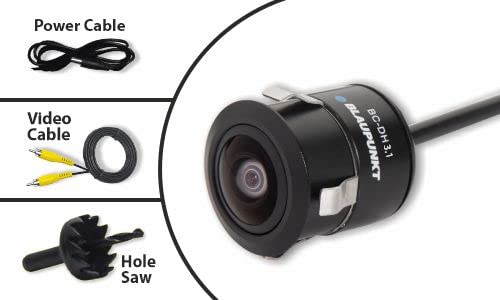

What's in the BOX

• 1* Camera
• 2* Connector Cable
• 1* Installation Accessories
• 1* Hole Saw
• 1* Warranty Card &
• 1* User Manual
