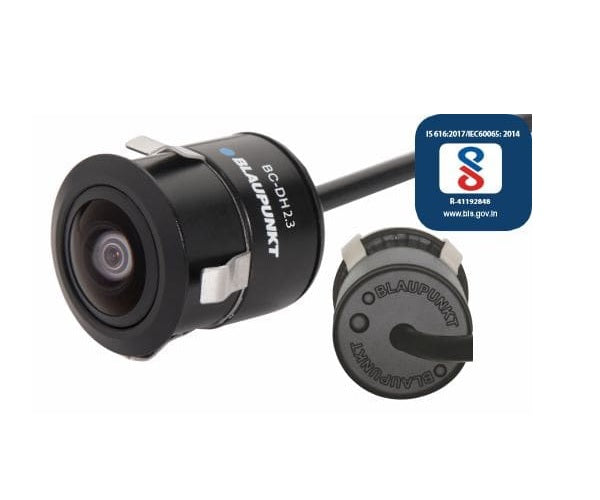

Blaupunkt BC DH 2.3 AHD Universal Front/Rear Bumper Camera w/ Moving Guidelines

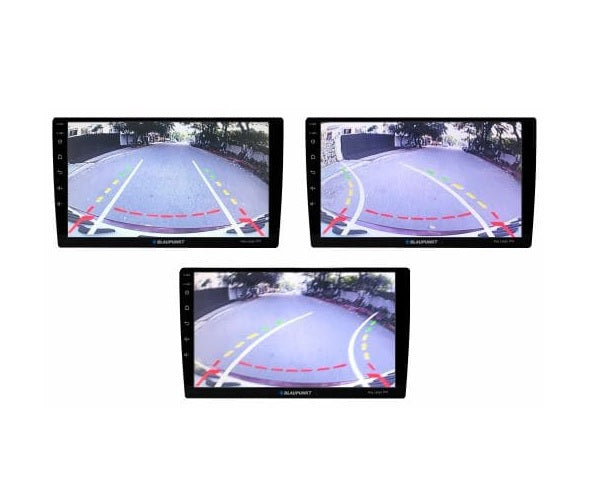

BC DH2.3 AHD (Rear Bumper Camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside. This Rear Bumper Camera comes with AHD Picture Quality & Moving Guidelines.

A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH2.3 AHD incorporates a highly efficient color sensor and modern electronics, reducing power consumption.

Specifications:

• Power Supply: DC12V±3V
• Video System: AHD (PAL)
• Current Consumption: 50mA
• Optical Format: 1/3
• Image Sensor: CMOS lens
• Effective Pixels: 1280(H) x 720(V) 25fps
• Video Signal: 1.0 Vp-p / 75ohm
• Lens Angle: 170° (D), 110° (H),100° (V)
• Electronic Shutter: 1/60 ~ 1/100000 sec
• White Balance: Auto
• Humidity: up to 90%
• Water Resistant: IP67
• Illumination Min.: 0.01Lux
• Operating Temperature: -20°C ~ +70°C

What's in the BOX

• 1* Camera
• 2* Connector Cable
• 1* Hole Saw
• 1* Warranty Card
• 1* User Manual
