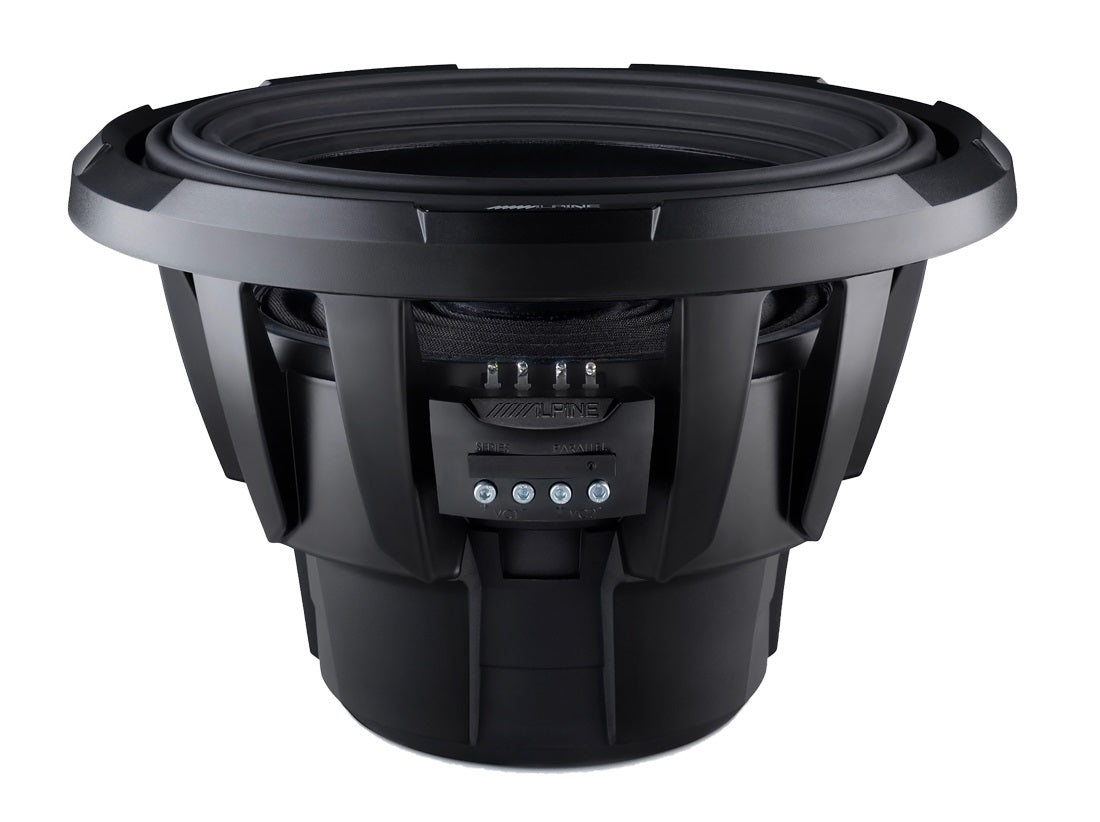

Alpine X-W12D4 12" DVC Subwoofer (900W RMS 2700W Peak)

Alpine introduces the all-new X-Series of high-grade speakers, subwoofers and amplifiers. These products have been engineered and tuned to create a perfect match for extraordinarily dynamic, realistic sound reproduction and a spatial sound impression. With Alpine X-Series subwoofers, you get the top of Alpine’s subwoofer technology for massive and accurate bass output. These flagship subs have been engineered and tuned with highest precision and use highest grade materials.

Introducing the Ultimate Subwoofer
    The New X-Series subwoofers were developed from a sound philosophy we call Alpine ID – a focus on highly accurate components built for superior imaging. A triple stacked magnet surrounds an extended voice coil, which allows a very long excursion resulting in huge air movement. A specialized CRC pole with integrated cooling fins and an aluminum shorting cap reduce the lag of coil’s alternating movement while also providing cooling within the motor. The cone structure is suspended by two spiders and our patented H.A.M.R. surround. The stability of the dual-spider along with the even unfolding of the multi-roll surround create incredibly linear cone travel, free of any unneeded movement that cause distortion.

Built to Move Tones of Air
    The 24mm X-max is best in class and allows close to 2 inches of full cone motion. In order to create a powerful yet accurate subwoofer, we had to implement several technologies that keep the cone under control. Dual spiders ensure a rigid moving assembly while the HAMR surround provides long linear travel. A shorting ring keeps the THD down while a custom heat sink integrated CRC pole and shorting cap keeps high magnetic force. These design aspects come together to produce incredibly precise, powerful bass.

Easy Grille and Trim Ring Included
    Taking design cues from tweeter development, we’re incorporating a twist-lock trim ring which allows easy attachment of the included metal mesh grill. With a simple twist, the trim ring locks into place, concealing the mounting screws and locking the optional grille into place. The trim can be installed with or without the grille.

All New Motor Design
    The powerful and efficient motor coupled with its highly-controlled suspension give the X-Series subwoofer the ability to create loud and accurate bass in a very small, sealed box. Only requiring 28.3 l of air space (15.6 l for the 10”), the 12” X-Series subwoofer can reproduce frequencies down to 40 Hz before rolling off, leaving you with bass that digs deep and plenty of trunk space.

A Perfect Match
    The X-Series amplifier X-A90M is the perfect amplifier for the job. Along with the 900W power matched specifications of both components, each were built under the same sound philosophy, Alpine ID. With a focus on musicality and sound imaging, the X-W12D4 / X-W10D4 is complimented by the amplifier's clean, low distortion output and >1500 damping factor. Add the X-Series speakers to the system and prepare to experience a new level of in-car imaging.

Specifications:

 Subwoofer Type

• 12′′ (25 cm) Subwoofer (4Ω + 4Ω)

 Frequency response

• 23 Hz - 200 Hz

 Power handling

• 2700 Watts peak power
• 900 Watts RMS power

 Design

• Cast Aluminum frame
• H.A.M.R surround
• 8mm² Insert Terminals with Series/Parallel Jumper Plug

 Dimension

• Mounting diameter : 281 mm
• Mounting depth : 184 mm

What's in the BOX

• 1* 12" Dual 4-ohm voice coil subwoofer
• 1* Warranty Card
• 1* Installation Manual
