Alpine S2-A60M S2 Series Class D Mono Amplifier (RMS: 330W (4Ω) 600W (2Ω))

Alpine introduces the all-new S2 amplifiers - a perfect match to the S2 Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance and won’t shut down due to overheating. They also feature excellent sound quality in their price range.

Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S2-A60M measures just 220mm in width x 210mm in length for easy installation in virtually any vehicle.

Along with Alpine’s new intelligent amplifier platform, the new S2 Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

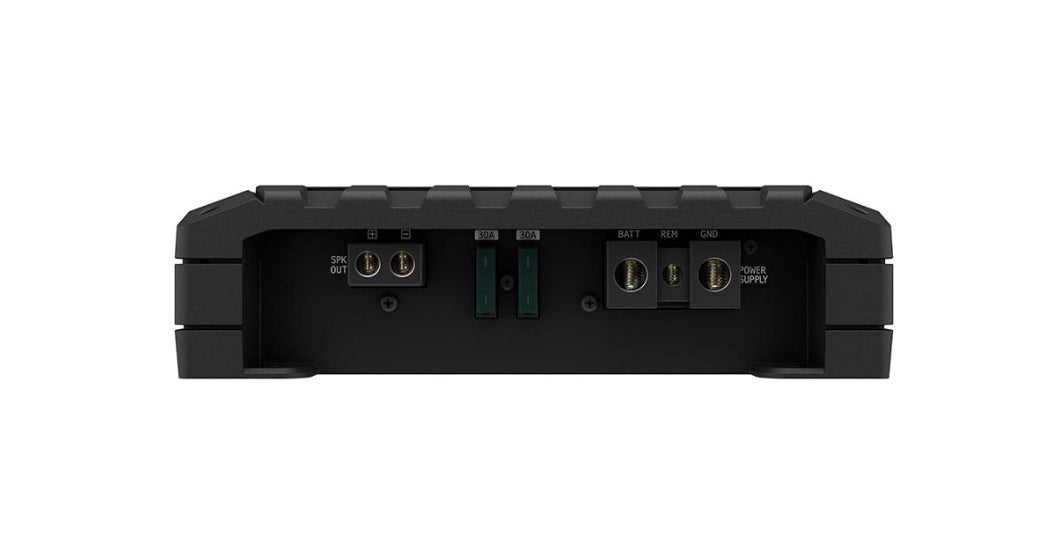

The speaker and power cable terminals are conveniently located on the left side of the amplifier to allow a clean installation.

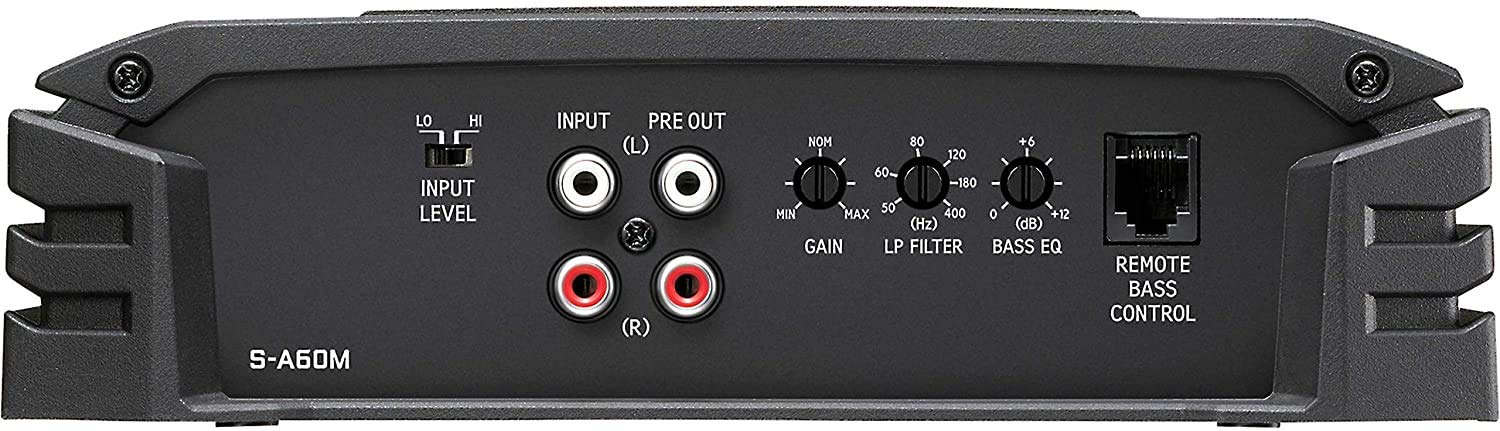

The 2-Channel RCA speaker signal inputs accept low and high-power signals. This makes it easy to connect the S2-A60M directly to your original car stereo, regardless of your head unit’s power output (RCA connectors with open cable leads are available separately).

You can connect the RUX-KNOB2 remote bass knob (optional available) to the S2-A60M to control the subwoofer level straight from your dash (applicable for channel 3+4 in bridged mode for subwoofer usage).

You can fine-tune your subwoofer cut-off frequency with the integrated LPF and give additional Bass boost of up to 12dB with the built-in Bass EQ.

Features:

• Terminal Layout: One side
• Small footprint for easy installation
• Screw terminals (for speaker and power cables)
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF)
• Gain Control: Adjustable
• Bass EQ
• Bass Control: Remote Bass Control (RUX-KNOB2) Ready

Specifications:

• Max Power Output: 1100W
• RMS Power Ratings 14.4V (≤1%THD+N): 1 x 600W @ 2Ω, 1 x 330W @ 4Ω

• Sound Tuning Crossover: Variable LPF, 50-400Hz (-12dB/oct )
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
• THD+N (@ 10W into 4 ohms): <0.03%
• THD+N (@ 50W into 4 ohms): <0.08%
• Damping Factor: >1000
• Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
• Weight: 1.9 kg
• Dimensions: (WxHxD): 8.8 x 1.06 x 8.4 inches


What's in the BOX

• 1* Amplifier
• 4* Self Tapping Screw (M4 x 20)
• 1* Heaxgon Wrench &
• 1* Warranty Card
