Alpine

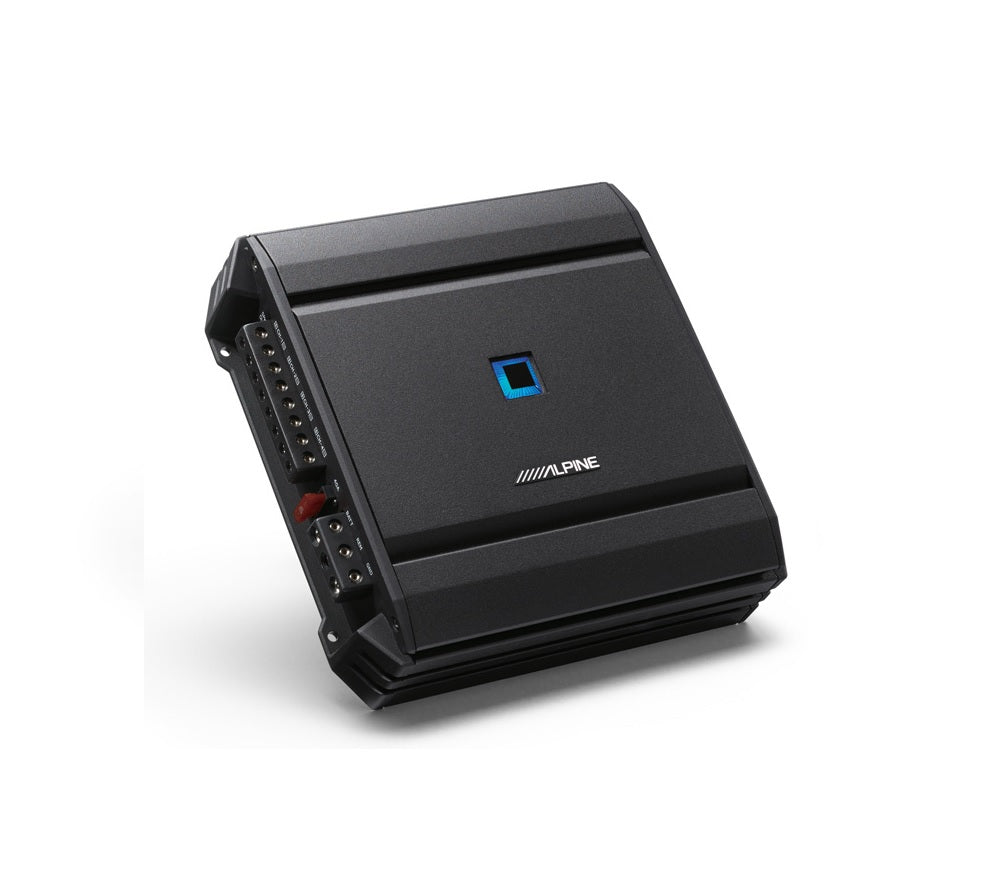

Alpine S-A55V S-Series 5 Channel Class D Amplifier (RMS: 40W*4 200W*1 (4Ω); 60W*4 300W*1 (2Ω))

Alpine S-A55V S-Series 5 Channel Class D Amplifier (RMS: 40W*4 200W*1 (4Ω); 60W*4 300W*1 (2Ω))

₹ 26,299.00
₹ 37,999.00 ₹ 26,299.00
Save 30% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.

IN STOCK

Estimated Delivery:

-


Type: Class D Amplifier
Channel Output: 5 Channels
Total RMS Wattage: 160
Impedance: 2/4 ohms
Warranty: 1 Year Brand Warranty

Alpine introduces the all-new S-Series amplifiers - a perfect match to the S-Series speakers. These amps have an excellent Watts-per-Euro ratio in the Class-D category, feature a very high heat resistance and won’t shut down due to overheating. They also feature excellent sound quality in their price range.

The S-Series amplifiers are available in mono, 4-channel and 5-channel configuration.

Highlights:

  • Terminal Layout: One side
  • Small footprint for easy installation
  • Screw terminals (for speaker and power cables)
  • Amplifier Type: Class-D (Digital)
  • Channel Design: 5 Channel
  • Thermal Management Control
  • Top Mounted LED Power/Status Indicator
  • Speaker Level Input with remote turn on
  • Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
  • Gain Control: Adjustable
  • Bass Control: Remote Bass Control (RUX-KNOB2) Ready

All Digital Design
       Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The S-A55V measures just 286mm in width x 204mm in length for easy installation in virtually any vehicle.

Thermal Protection
       Along with Alpine’s new intelligent amplifier platform, the new S-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

One-sided Cable Terminals
       The speaker and power cable terminals are conveniently located on the left side of the amplifier to allow a clean installation.

Control Your Subwoofer
       You can connect the RUX-KNOB2 remote bass knod (optional available) to the S-A55V to control the subwoofer level straight from your dash.

High-Pass / Low-Pass Filter
       With this filter switch you can assign the amplification channel (pair) to be used for door speakers or a subwoofer. You can then adjust the cut-off frequency for more precise tuning.

Specifications:

 Type

  • Class D
  • 5-Channel Power Amplifier

 Frequency response

  • (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 50Hz - 30kHz
  • (+0/-1dB: 1W into 4 ohms) for CH-5: 60Hz - 20kHz

 Power handling

  • 1100 watts max power
  • 4 x 40 watts + 1 x 200 watts RMS power at 4 Ohms
  • 4 x 60 watts + 1 x 300 watts RMS power at 2 Ohms
  • 2 x 120 watts Bridged power at 4 Ohms

 Design

  • Thermal protection
  • Crossover adjustable : 50 - 400 Hz (-12 dB/oct.)

 Dimension

  • 286 x 57.5 x 204 mm

What's in the BOX

  • 1* Amplifier
  • 4* Self Tapping Screw (M4 x 20)
  • 1* Hexagon Wrench
  • 1* Warranty Card
