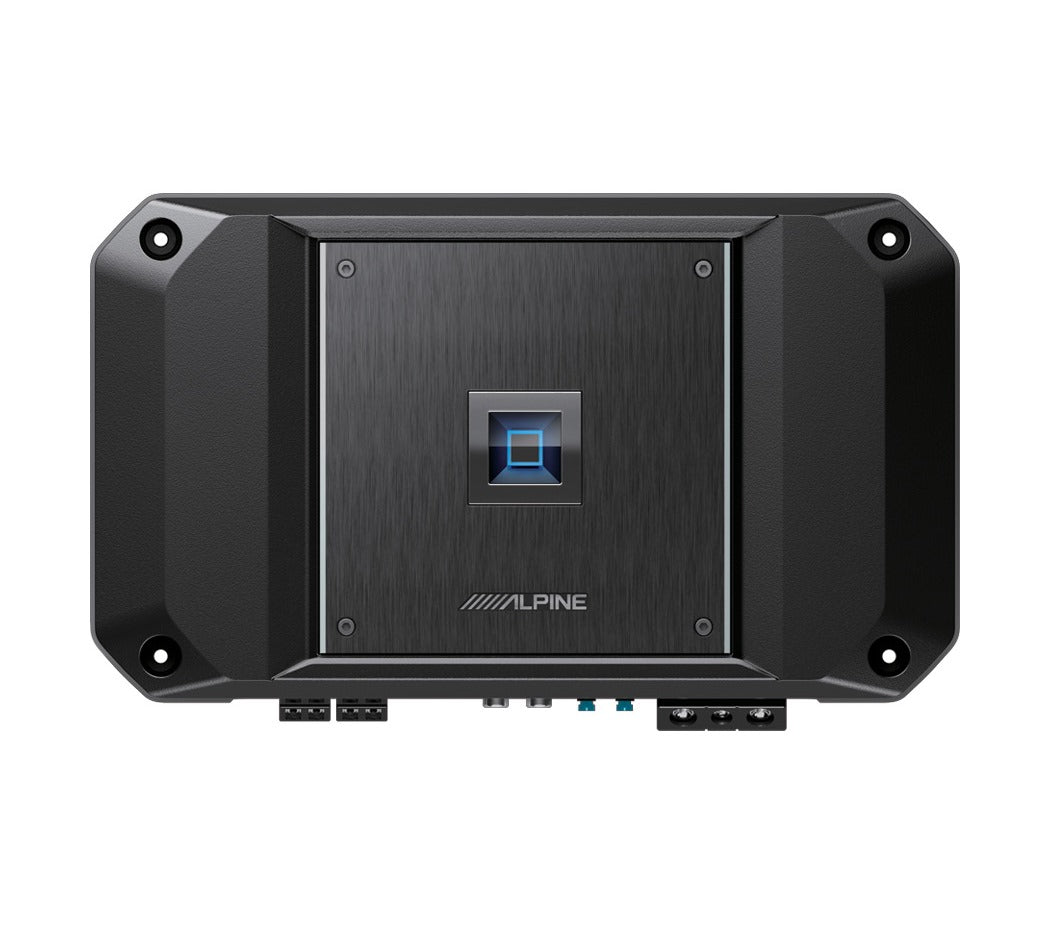

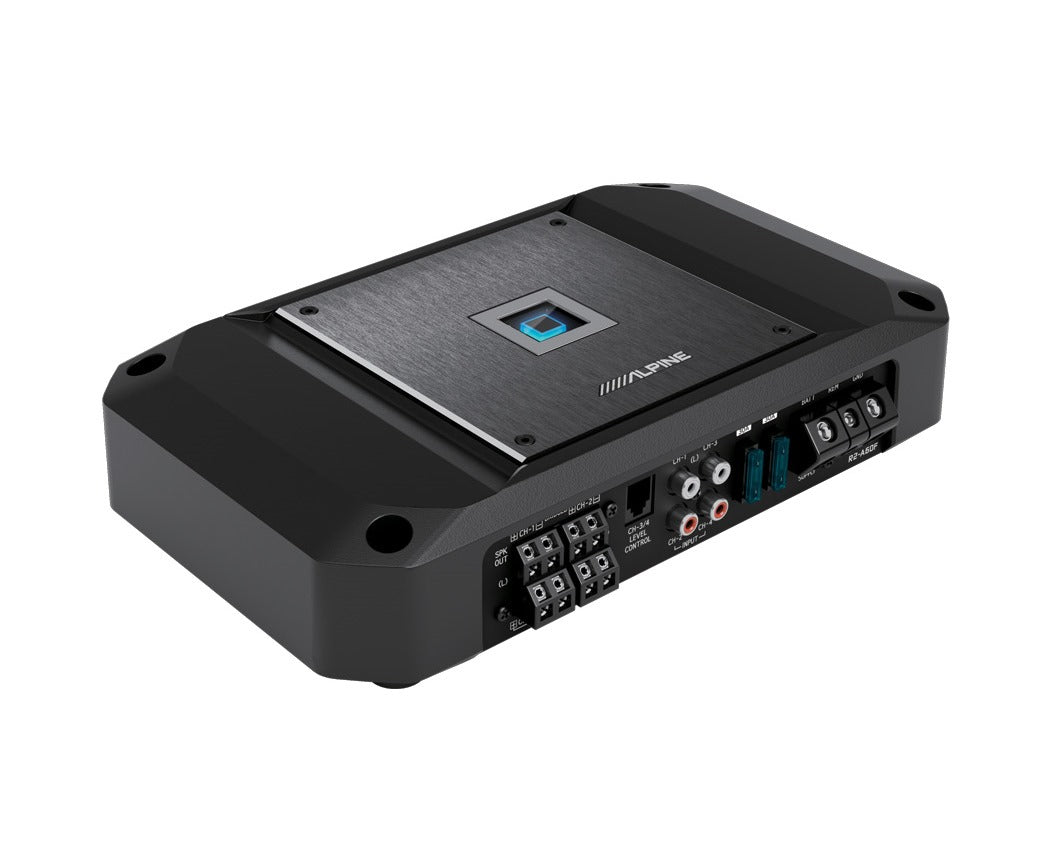

Alpine R2-A60F 4/3/2 Channel Class D Amplifier (RMS: 100W*4 (4Ω) 150W*4 (2Ω))

Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A60F 4-Channel Amplifier, now certified for Hi-Res Audio Playback.

Hi-Res Certified
    The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.

Reduced Footprint
    The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.

Simplified Installation

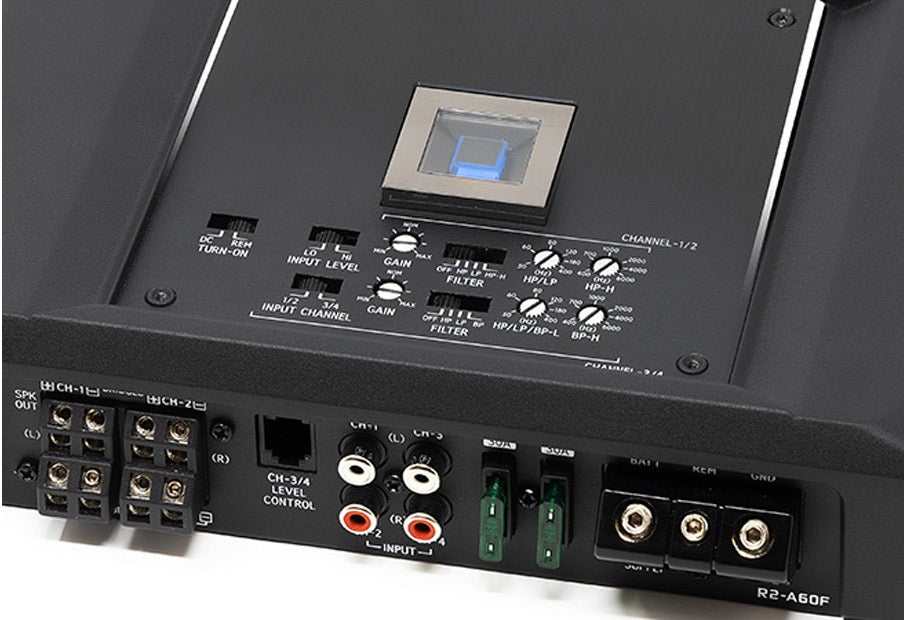

     Intentional designs were made to the amplifier that consolidated all speaker connections to one side of the amplifier for easy access. Amplifier controls were relocated to the top of the convenient access to gain and crossover controls. To simplify the installation process, mounting "feet" are integrated on to the chassis of the amplifier.

TRICKLE DOWN TECH
       Using "trick-down" technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation Playback capabilities that will take this legendary system to the next level in sound performance.

Features:

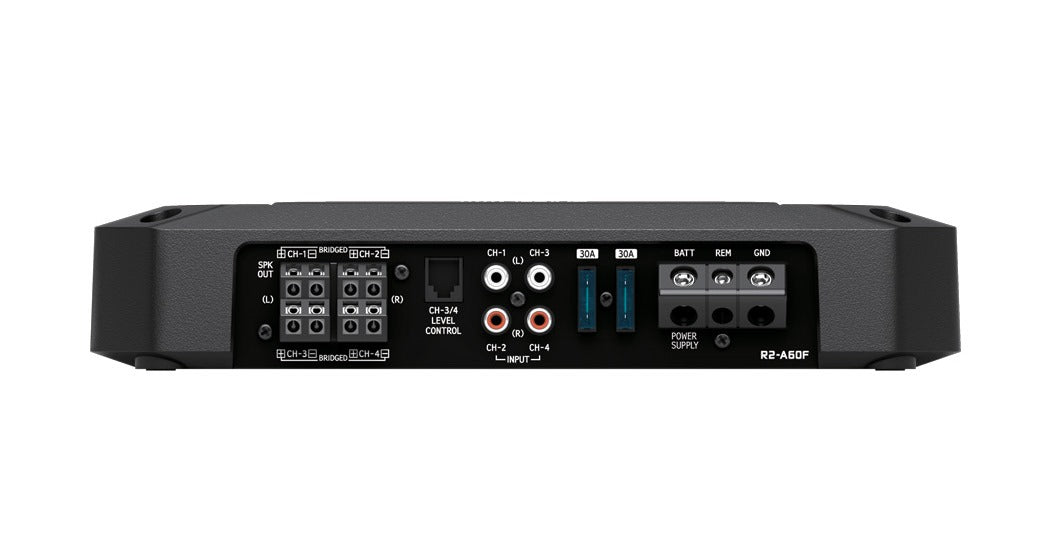

• Terminal Layout: One side
• Small footprint for easy installation
• Screw terminals (for speaker and power cables)
• Amplifier Type: Class-D (Digital)
• Channel Design: 4/3/2 Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF), High-Pass Filter (HPF) and Band-Pass Filter
• Gain Control: Adjustable
• Bass EQ

Specifications:

• Max Power Output Ratings
• Total Max Power: 1200W
• RMS Power Ratings
• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 150W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 100W
• Bridged, 4 Ohms, 14.4V: 2 x 300W
• Sound Tuning
• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
• Crossover: Variable HPF-H: 400Hz-6kHz
• General
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 45kHz
• THD+N (@ 10W into 4 Ohms): <0.03%
• Damping Factor: >500
• Weight: 3.2kg
• Dimensions (WxHxD) mm: 282 x 55 x 165

What's in the BOX

• 1* 4-Channel amplifier
• 2* 30-amp ATO fuses (installed)
• 2* 4 Mounting feet
• 4* 3/4" Screws
• 8* M2.5x5.5mm Machine screws
• 1* 2mm Allen wrench
• 1* 3mm Allen wrench
• 1* Owner's manual (English/ French/ Spanish) &

• 1* Warranty Card
