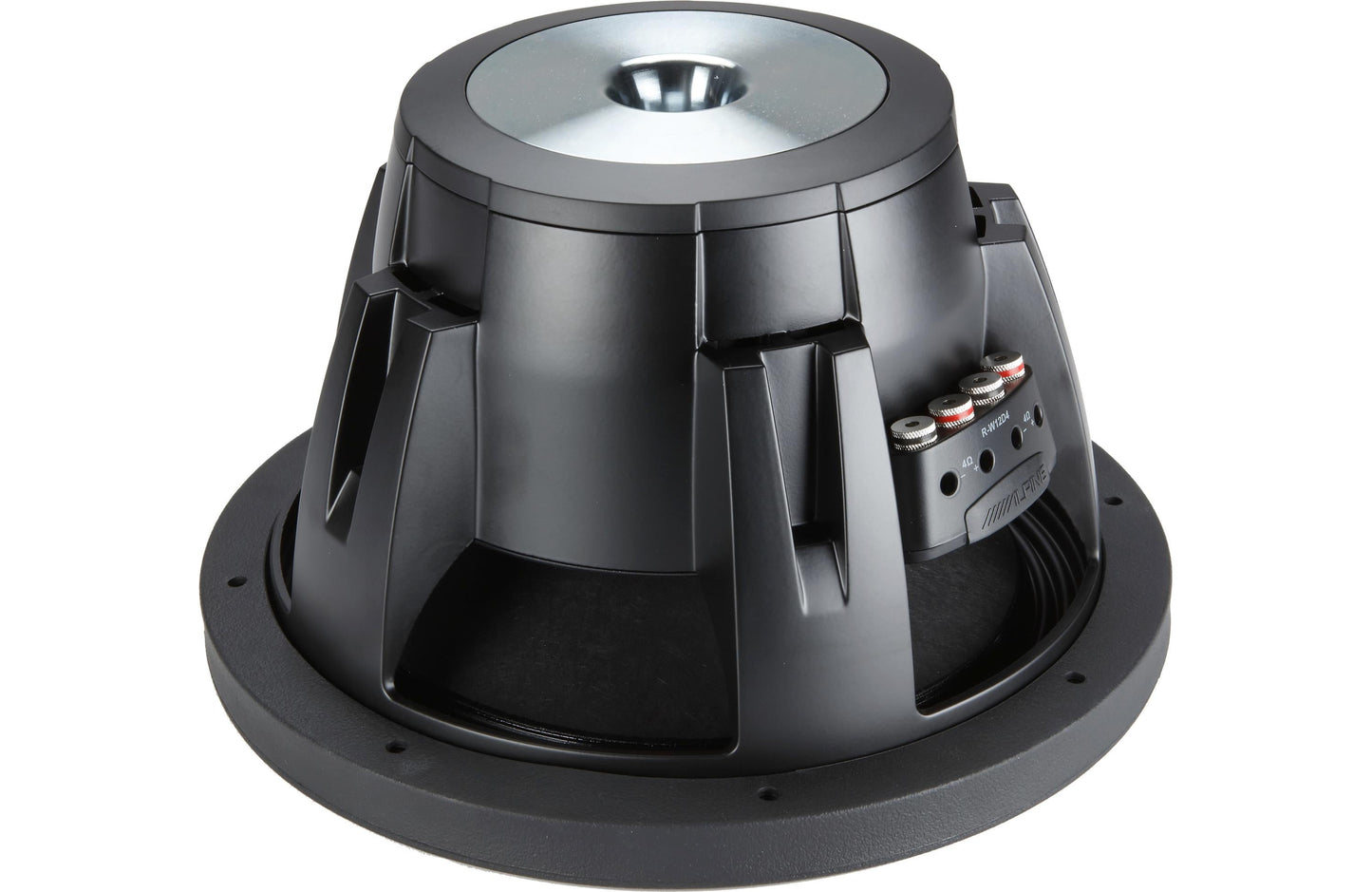

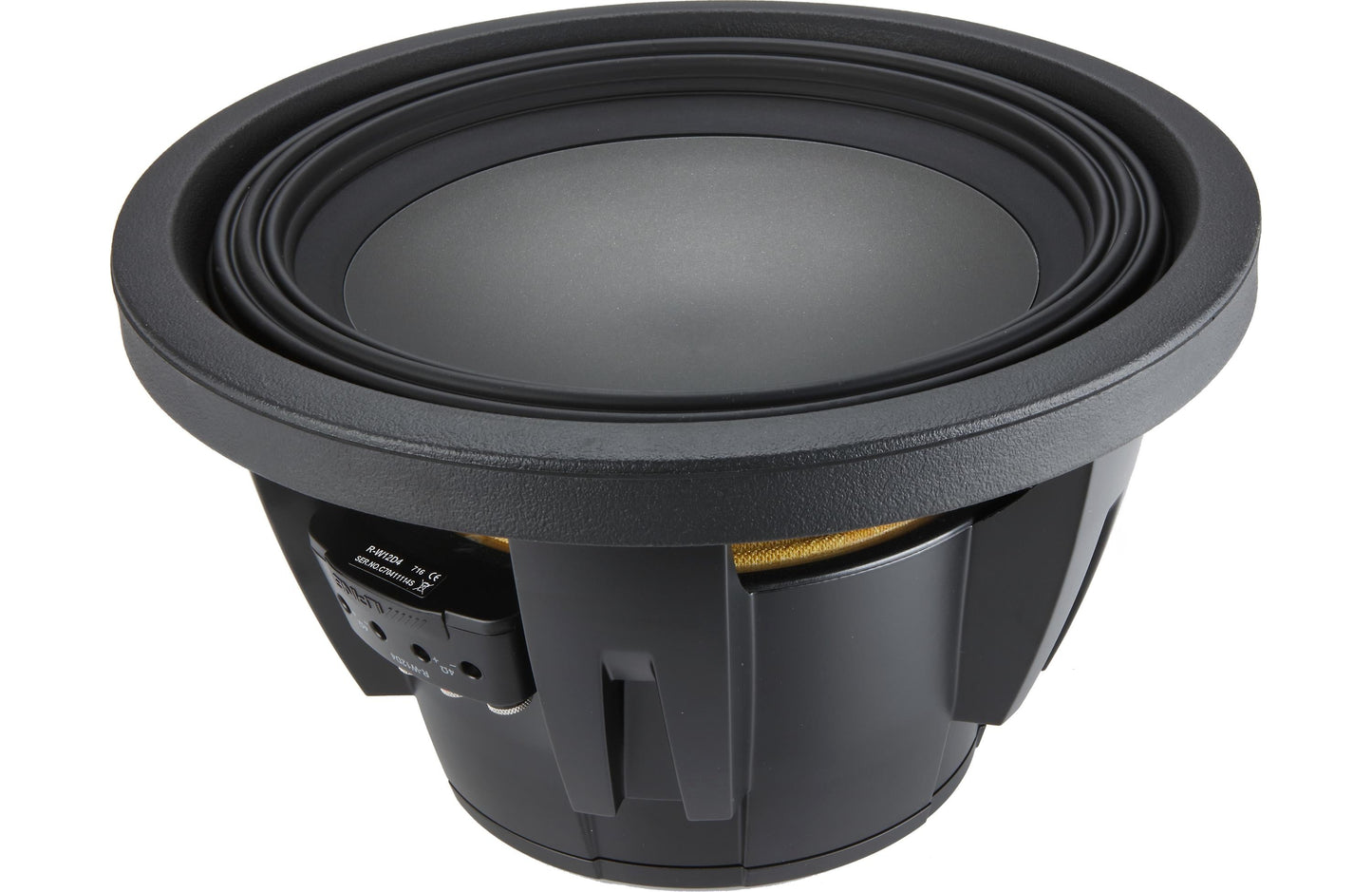

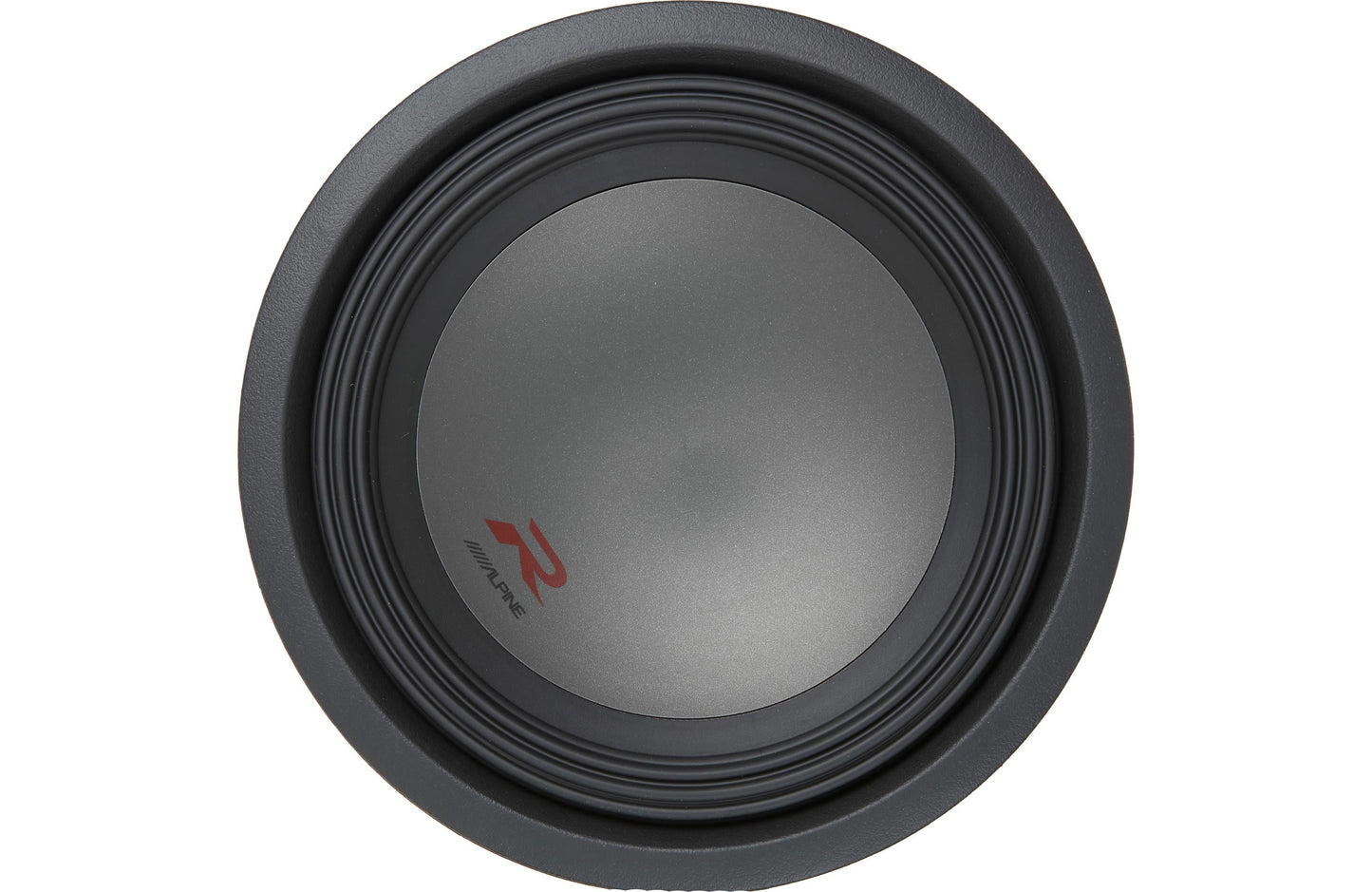

Alpine R-W10D4 10" DVC Subwoofer (750W RMS 2250W Peak)
Alpine R-W10D4 10" DVC Subwoofer (750W RMS 2250W Peak)
IN STOCK
Estimated Delivery:
-
Type:
Without Amplifier & Enclosure (Passive)
Size: 10 inches
Total RMS Wattage: 750
Impedance:
4+4 ohms
Warranty: 1 Year Brand Warranty
Alpine is proud to announce the introduction of the new R-Series Subwoofer lineup that is built off the highly esteemed Type R platform. With select key design and build improvements, the R-Series Subwoofer is able to output more of that deep bass extension and control that the Type-R is known for. Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, we were able to increase vibration absorption of the cap while lowering the density. The resulting lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.
R-Series subwoofers feature a Kevlar-treated cone for durability. The combination of this cone with the Santoprene surround allows the subwoofer to deliver 19mm of X-max, for incredible, hard-hitting bass.
A new method of attaching the spider and cone to the voice coil ensures not only rigidity throughout the motor structure but contributes to the subwoofers increased accuracy.
Specifications:
- Subwoofer Type
10′′ (25 cm) Subwoofers (4Ω + 4Ω) - Frequency response
26Hz - 200Hz - Power handling
2250 Watts peak power
750 Watts RMS power - Design
Cast Aluminum frame
H.A.M.R surround
Heavy Duty 8 gauge Push with Housing, Banana Plug Jumper - Dimension
Mounting diameter : 230.5mm
Mounting depth : 149 mm
What's in the BOX
- 1* 10" Dual 4-ohm voice coil subwoofer
- 1* Rubber concealing ring (installed)
- 2* 3" jumper cables (each has a single banana connector on each end)
- 1* R-Series Subwoofer Application Guide (English/ French)
- 1* Warranty Card
