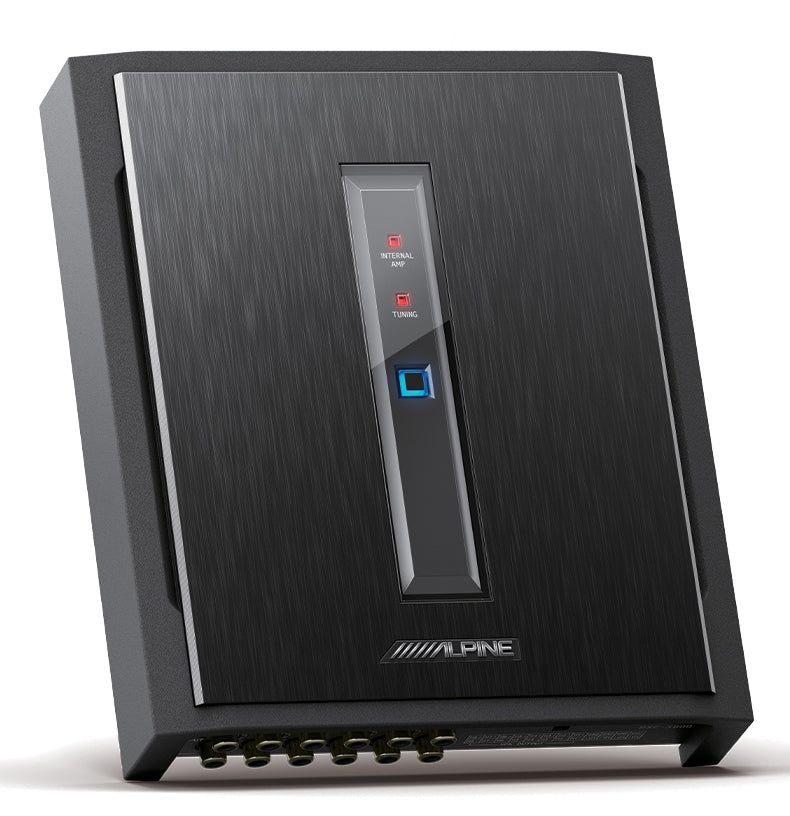

Alpine PXE-X800 12 Channel Digital Sound Processor

Alpine PXE-X800 12 Channel Digital Sound Processor

Regular price ₹ 60,999.00
Regular price ₹ 89,999.00 Sale price ₹ 60,999.00
Save 32% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.


Estimated Delivery:


Type: DSP Amplifier
Channel Output: 12 Channels
Total RMS Wattage: 100
Impedance: 4 ohms

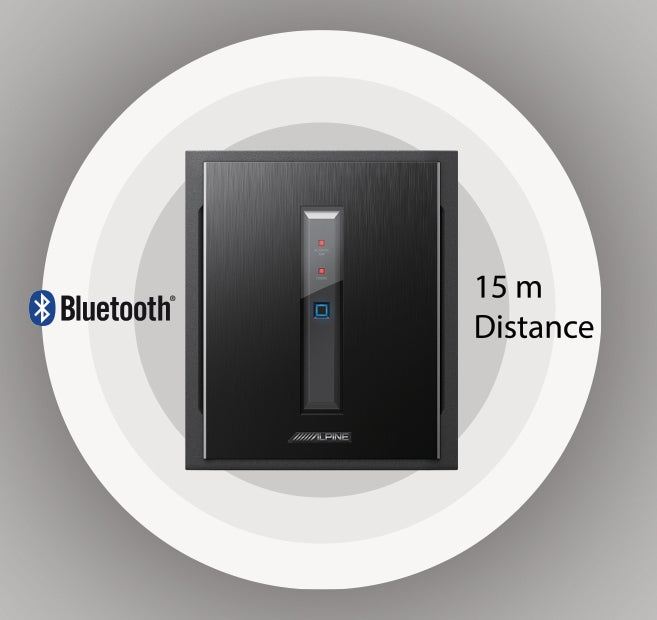

The core components are made of high-quality products with Japanese ALPINE unified tuning, Aluminium housing with a premium texture, Low-key highlights with a built-in high-power amplifier. PXE-X800 tuning software, in line with a more user-friendly design concept, the use of interface split-screen mode, tuning at a glance, more convenient user tuning operation. Excellent in eliminating noise and phase-shifting. High quality of chip to random sample 192kHz/ 24 bit. Also, having the capacitor which provide more realistic music playback. The module is 5.0 dual-mode Bluetooth, is a low-power, good sound quality, High-definition Bluetooth with long-range up to 15 m., support for the unique APTX lossless format, the operating band is from 2.402GHz to 2.480GHz, and Bluetooth transmission performance is stable. Perfect matching with DP speaker, with the 4ch*25W, 4ch*50W (RMS), and the same 50W New speaker can provide the best sound.

  • The high-quality design of the chip
  • The unique APTX Bluetooth lossless format
  • Built-in amplifier max to 50W RMS

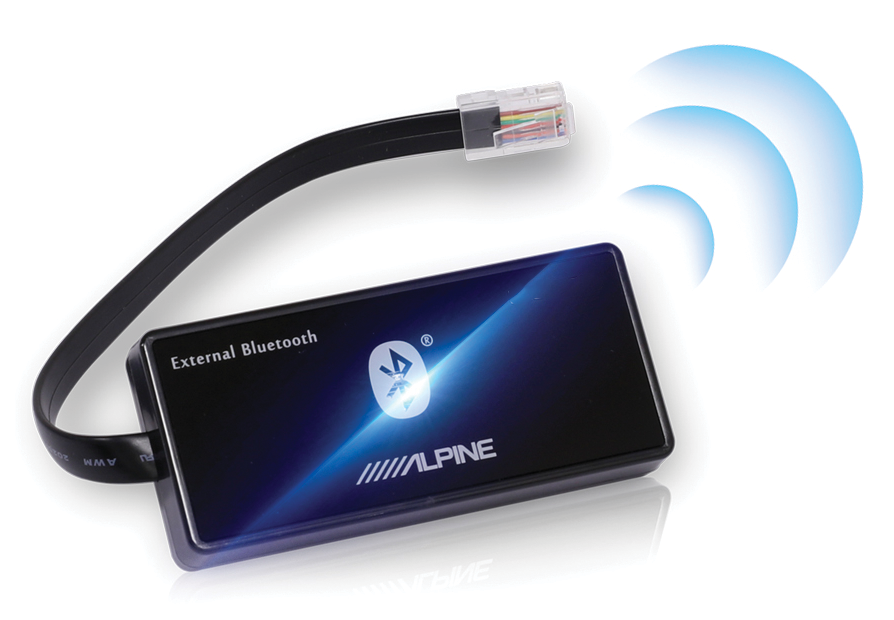

  • Bluetooth Module
  • RUX-C600 Wire controller (sold separately)


Frequency response
    20Hz - 20KHz/ 1Hz step

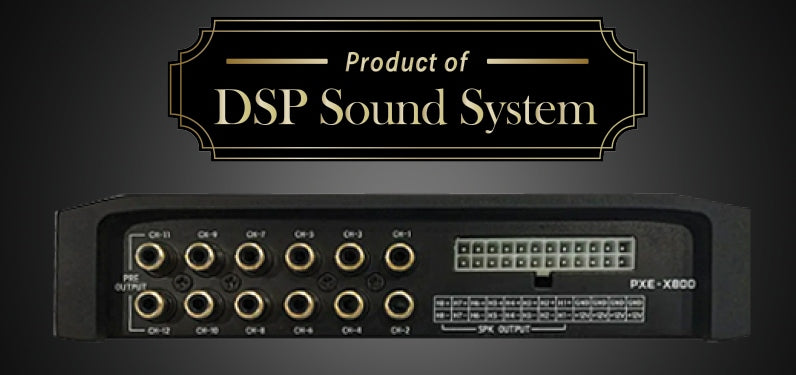

    12-channel RCA audio
    Built-in AMP
    Slope 6/12/18/24/30/36/42/48 dB
    Optical/ Coaxial
    4 x 25W (Rated power)
    4 x 50W (Max power)
Sound & Tuning
    31 Bands parametric EQ
    31 Bands graphic EQ
    Time correction (up to 20ms/ ch)
    AptX Bluetooth lossless format
    9.12 x 7.76 x 1.8 in

What's in the BOX

  • 01 x Sound Processor
  • 01 x Bluetooth Module
  • 02 x Speaker & Power Cord
  • 02 x Input Line
  • 01 x USB 2.0 Cable
  • 01 x Mounting Bracket
  • 10 x Machine Screw
  • 04 x Self Taping Screw
  • 01 x QSG (quick start guide)
  • 01 x Warranty CardAlpine PXE-R800 Accessories
