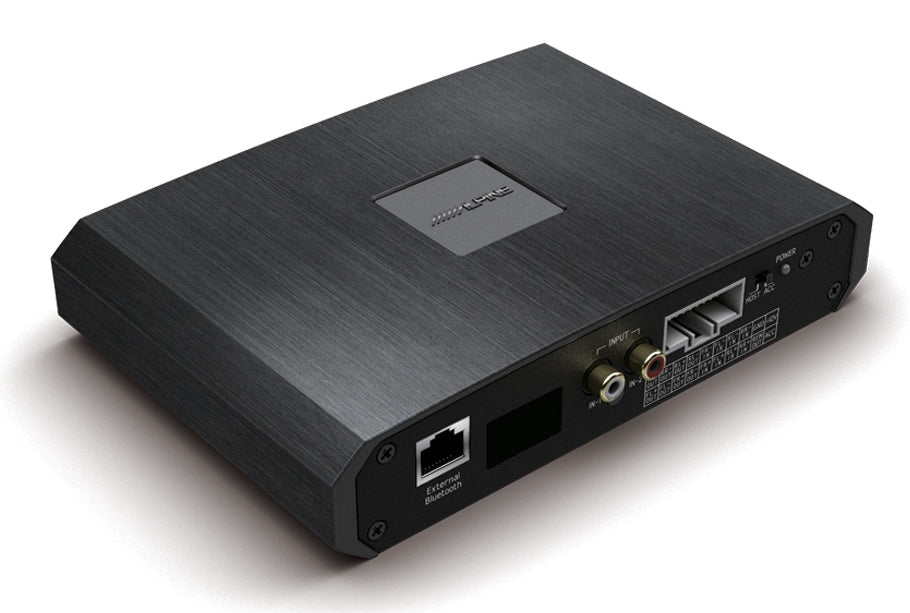

Alpine PXE-R500 6 Channel Digital Sound Processor

Alpine PXE-R500 6 Channel Digital Sound Processor

Regular price ₹ 31,499.00
Regular price ₹ 41,949.00 Sale price ₹ 31,499.00
Save 24% Sold out
Tax included. Free Standard Shipping,Express Shipping calculated at checkout.


Estimated Delivery:


Type: DSP Amplifier
Channel Output: 6 Channels
Total RMS Wattage: 100
Impedance: 4 ohms

Built-in 6-channel amplifier audio processor! Sound quality, performance is significantly better than the same price as the competition!. Also, Supports mobile phone APP and computer software tuning. Japan's fever-grade capacitors, black gold-plate aluminum electrolytic capacitors, long life, high ripple resistance, low impedance, audio fever in the world's top brand capacitors, tone alcohol thick, so that the sound quality results to achieve the best, to increase the performance of music is of great help. The size is 183.5mm x 136.9mm x 36.8mm which is the same size as Ipad, saving space, and installation is very convenient. The body is designed with all-black pulls, reflecting a high-end, stable texture. And ALPINE LOGO is located in the center of the machine. Silver-grey LOGO, highlighting ALPINE's unique taste. The dual-mode Bluetooth is a highly integrated, low-power HD Bluetooth,24-bit DAC output, Bluetooth stereo transmission. The version specification for Bluetooth is 2.1 plus EDR/BLE V4.2, with transmit power up to class 2 The maximum effective distance is 15m.

  • ALPINE Japanese Sound Master Tuning

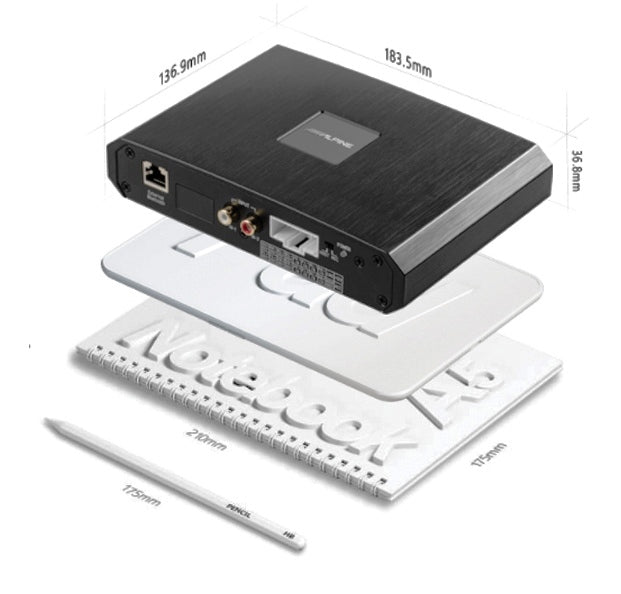

  • Easy to install with small size 7.34in x 5.48in x 1.47in

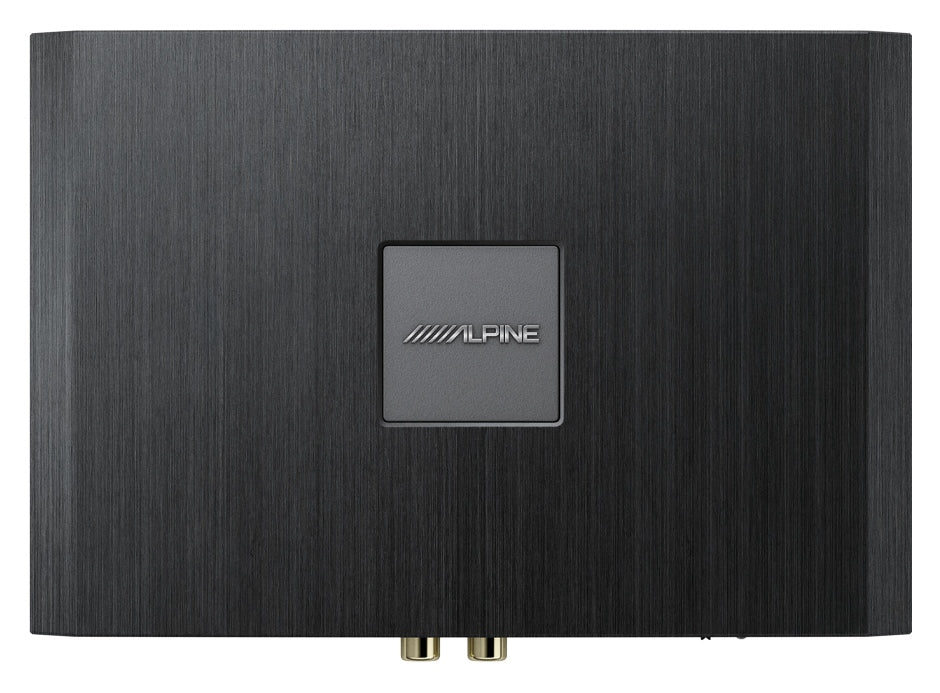

  • Best design with Aluminium housing & silver logo

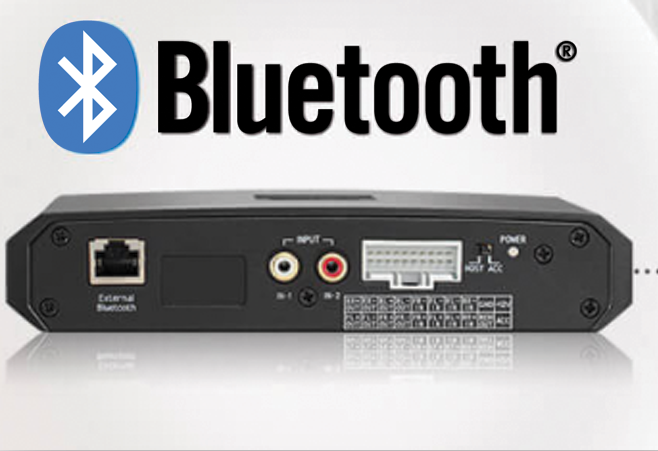

  • Built-in HD Bluetooth module
  • RUX-C600 Wire controller (sold separately)


Frequency response
    20Hz - 20KHz
    4 high-level inputs
    6-channel RCA audio
    Built-in HD Bluetooth
    4 x 25W (Rated power)
    4 x 50W (Max power)
Sound & Tuning
    31 Bands parametric EQ
    31 Bands graphic EQ
    Hi-pass / Low-pass / Bandpass Crossover
    Time correction

What's in the BOX

  • 1 x Sound Processor
  • 1 x USB 2.0 cable
  • 4 x Fixing bracket
  • 1 x QSG (quick start guide)
