Alpine PXE-0850X 12 Channel DSP / 8 Channel Amplifier

High-performance of DSP, fast for running speed, the transmit and receive clock is up to 50MHz. Also, Highly configured audio CODEC chip PCM3168, with 192kHz. Music & navigation sound mixing • Can arbitrarily adjust the volume ratio of main/sub audio source. Full-frequency mode is added, and each channel can be set to full-frequency mode, which solves the problem that channels cannot be distributed in projects such as audition rooms and RVs to reduce the setting time. Split-screen display, adding delay group, more convenient operation!.

Features:

Specifications:

Frequency response
    20Hz - 20KHz
 Inputs
    6 high-level signal inputs
    6-channel RCA signal
    Optical fiber/ Coaxial digital signal input
    Bluetooth signal input
Outputs
    8 x 25W (Rated power)
    12-channel RCA output
Sound & Tuning
    2.0 multichannel surround
    31 Bands parametric EQ
    Hi-pass / Low-pass / Bandpass Crossover
    Time delay up to 20 ms per channel
    Input/output frequency summing
    Music & navigation sound mixing
Dimension
    8.4 x 7.6 x 1.8 in

What's in the BOX

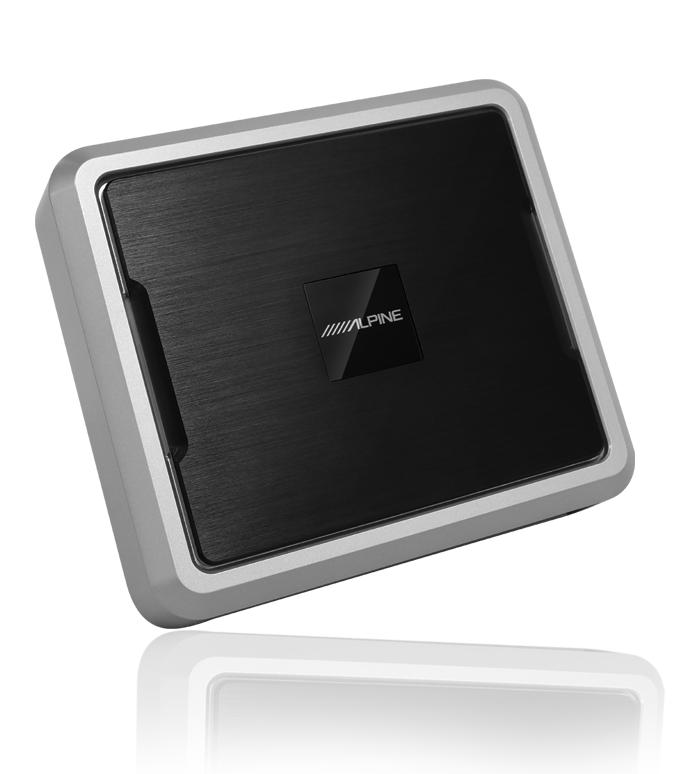

• 1 x Sound Processor

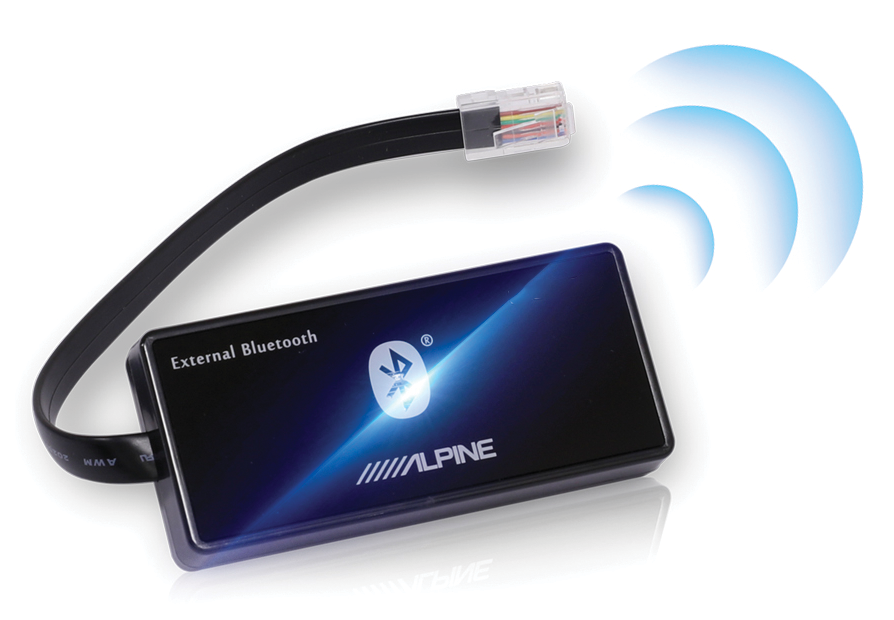

• 1 x Bluetooth Module

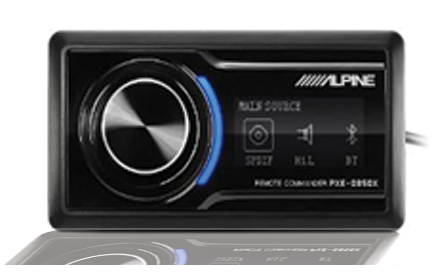

• 1 x Wire Controller
• 1 x Horn Wire

• 1 x USB 3.0 Wire

• 1 x Power Line

• 2 x Fixing bracket
• 1 x QSG (quick start guide) &
• 1 x Warranty Card
